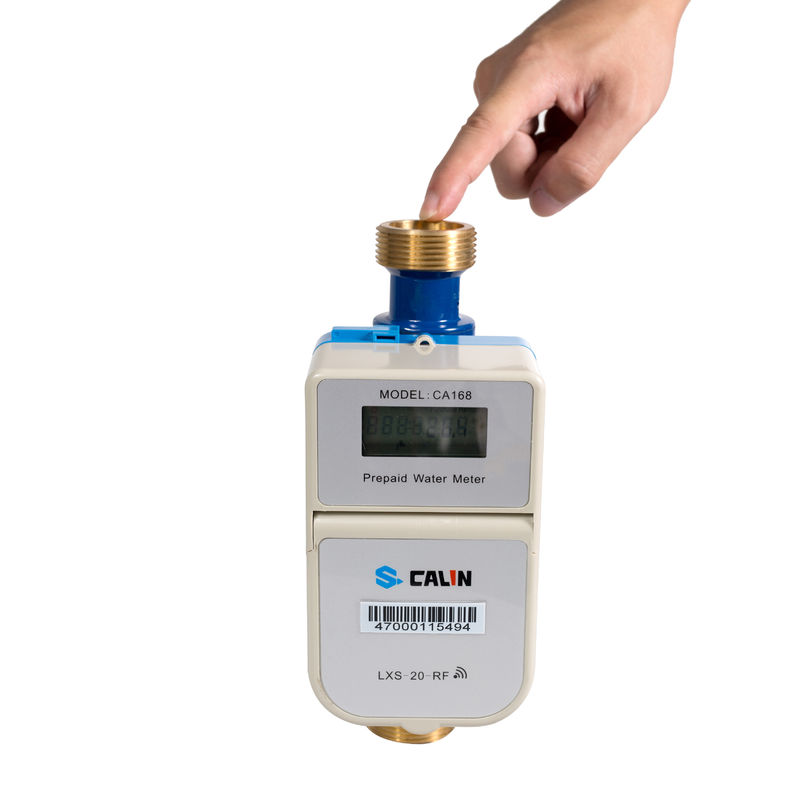

R100 Class B Prepaid Water Meters With RF Communication AMI/AMR System

R100 Class B Prepaid Water Meters With RF Communication AMI/AMR System

  • R100 Class B Prepaid Water Meters With RF Communication AMI/AMR System
R100 Class B Prepaid Water Meters With RF Communication AMI/AMR System
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA568
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Product Name: STS Split Type LoRa Communication Prepaid Water Meter Standard: 2004/22/EC(MID), OIML R49
Weight: 1300 G Display: LCD / Counter
Accuracy: Class B: R80 / R100 Communication: LoRa
High Light:

prepayment water meter

,

electronic water meter

Postpaid Water Meters with RF communication AMI/AMR system,R100 Class B



CA568  can operate as prepaid or postpaid mode. It is a  multi-jet wet / dry type.  This is most cost-effective revenue controller in Calin product series. The meter is equipped with a low power  motor driven hydraulically operating ball valve that sustains 4 million shuts with up to 5 year battery life. There may be some other brands telling story of Class C or B. Some of them are not true multi-jet  and they are actually do volumetric which is very sensitive to small particles in the water and liable to get jammed.



As the meter has  LoRa wireless communication, It can be remote control & remote reading by our AMI server, Customer can check everything they need, like monthly consumption, daily consumption, meter status, anyway, we know the LORA has a communication distance around 1 kilometer, and very stable. Service provider can close the valve remotely, Effectively prevent users from not paying water charges, Monitor customer's water consumption at any time.



The meter supports mobile money, mobile payment or any 3rd party payment systems. Customers only need to send SMS or USSD on their mobile phones and water units token codes will be remotely transferred back to them by SMS. Service providers can have instant revenue back and immenent cash flow.











Features

a) Up to 5 year battery life

b) DN15, 20,25, 40, 50, 80, 100, 150

c) Replacable battery

d) Up to 2 kms communication range

e) Dual display of LCD and Counter register

f)  Flexible contract setting and debt recovery setting

g)  Meter disconnects on tamper and fraud

h) Low credit warning programmable

i)  10 years’ data storage in absence of power

j)   AMR / AMI functions (optional, need to work with DCU)

k)  NB-IOT, LORAWAN  available on request



 Key benefits



1) Easy to install and free of maintenance

2) Long lasting battery life even with daily read and valve control

3) Non-revenue water prevention

4) Flexible setting of free basic water(FBW), emergency credit, and debt collection

5) Drive-by & Walk-by reading , AMR reading on request

6) Remote valve control

7) Quick revenue collection and cash flow improve





Specifications:







Nominal size



Dn



mm

                in-line

15

20

25

Maximum flow rate

Q4

m3/h

3.125

5.0

7.875

Ratio “R”

    Q3/Q1



80

80

80

Permanent l flow rate

Q33





m3/h

2.5

4.0

6.3

Transitional flow rate

Q22

0.05

0.08

0.126

Minimum flow rate

Q11

0.031

0.05

0.0787

Minimum reading



m3

0.0005

Maximum reading

99999



Maximum Permission Error (MPE)

Q1≦Q≦,Q2    MPE =+ 5%           Q2≦Q≦Q4,    MPE= + 2% (For hot water metering, MPE=+ 3%)



Dimensions and diagram



Nominal size

Length

Width

Height

Thread

mm

D

15

165

101

124

G3/4B

20

195

101

124

G1B

25

225

101

124

G5/4B
