Place of Origin: | China |
Brand Name: | Calin |
Certification: | CE/SABS/IEC |
Model Number: | CA08 |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Carton |
Delivery Time: | 30 days |
Payment Terms: | western Union,Paypal, T/T, L/C |
Supply Ability: | 70,000pcs per month |
Product Name: | Data Concentrator For Electricity/water/gas Meter | Feature: | Long RF-Lora Communication Range |
---|---|---|---|
Dimensions: | 160x112x58mm | Display: | Backlit LCD 8 Digits + Icons |
Communicate Port: | Ethernet Port, RS485 Port | Wireless Communication: | GPRS And RF-Lora |
High Light: | amr solutions,ami systems,RF-Lora AMI Solutions |

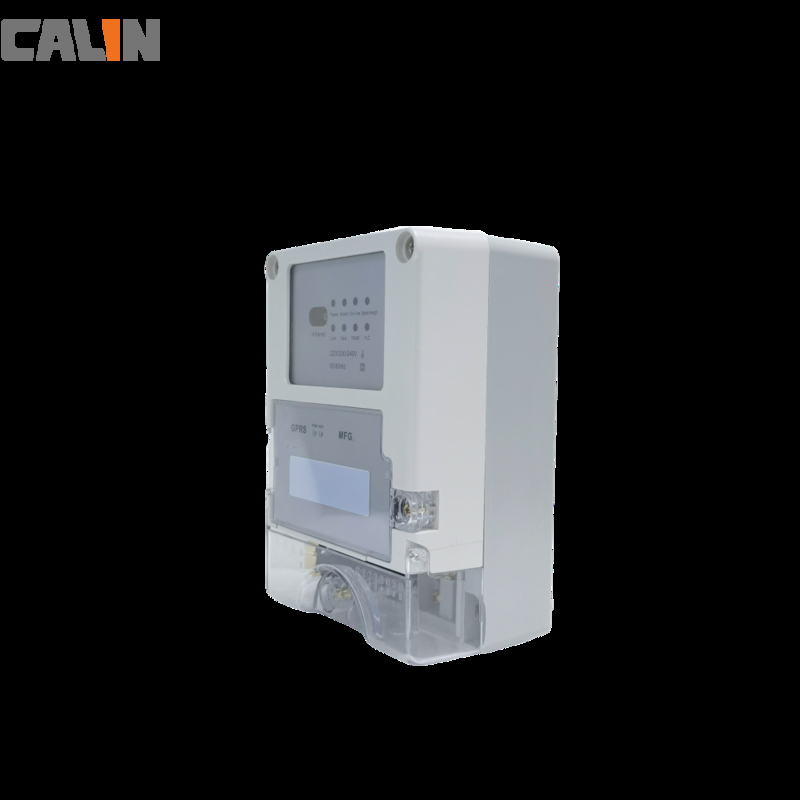

RF-Lora and GPRS Integration Smart Collection Program Wireless Data Concentrator
CA08 smart data concentrator is dedicated to smart metering applicaton and designed as a gateway between metering devices and AMR/AMI system, CA08 creates two ways communication from metering points to AMR/AMI system, performs task setting, data collection, data transmission and data storage, meter management, GPRS information task execution and RF network management.
CA08 utilize efficiently RS485, RF-Lora media for downlink communication to smart meters in diameter 6 KM meter and GPRS, 3G, DSL and fiber optical for uplink communication. CA08 collect the data (reading, voltage, current, etc) from the nearby electricity meters, water meters or gas meters by RF-Lora, and then transfer the data to the data server by GPRS.
Main Features
1) DLMS/COSEM standard compliant
2) RS485/RF-Lora downlink to smart meters
3) GPRS/3G/DSL uplink communication with a head-end AMR/AMI system
4) Data collection include total consumption/historical daily & monthly consumption
5) Meter parameter/status/real-time data reading
6) Tamper event record and upload automatically
7) Easy to install due to BS mounting
Utility benefits
1) Economic data connectivity solution
2) Low operational and maintenance cost
3) Flexible contractual setting with meters
5) On demand and load shedding intrusive control over consumers
6) 20 years' lifespan and auto update feature
Parameters:
Working Voltage |
160V-300V |
Frequency |
45-65 Hz |
Working Temperature |
-40℃~80℃ |
Humidity Requirement |
95% |
Display |
LED |
Built-in Infrared Port |
IEC62056-21 |
Communication Module |
GPRS/RF-LORA |
RS485 Port |
115200bps |
Ethernet Port |
TCP Protocol |
Communication Protocols |
DLMS/COSEM |
Weight |
0.8KG |
Protection Class |
IP54 |
Dimension |
0.8KG |
Non-volatile Memory Capacity |
128/256MB NANDFLASH |
