the only legal owner of CALIN brand and the sole manufacturer of Calin series utility meters.
Calinmeter reserve the right to pursue any legal remedies from Anyone or entity who claims as the group or affiliation of Calin or distributes Calin meter products without proper authorizations.
Place of Origin: | China |
Brand Name: | Calin |
Certification: | CE/SABS/IEC |
Model Number: | CA568-K |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Carton |
Delivery Time: | 30 days |
Payment Terms: | western Union,Paypal, T/T, L/C |
Supply Ability: | 10,000pcs per month |

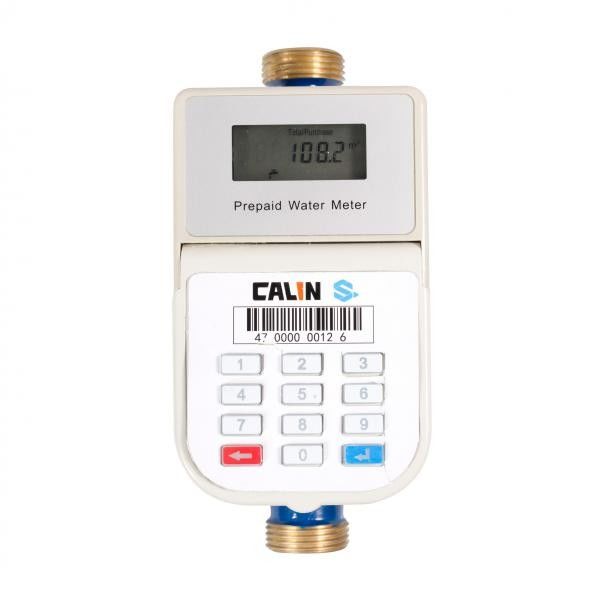

Product Name: | Multi-jet STS Keypad Prepaid Water Meter | Standard: | STS, 2004/22/EC(MID), OIML R49 |
---|---|---|---|
Weight: | 1300 G | Display: | LCD / Counter |
Accuracy: | Class B | Protection: | IP67 |
High Light: | remote water meter,prepayment water meter,Dry Type prepaid watermeter |
Market requirements: The CA568-K is a classic design based on the STS (Standard Transfer Specification), the prepaid water meter is a big trend in the Africa, in order to aviod non-revenue water and invistment back sooner, and don't need to worry about that the users don't pay their bill.
Technical Security: The CA568-K working comply strictly with the STS encryption rules, the users need to inputing a 20-digits Token code which inculding recharge unit, meter ID, etc information, 1 Token just can be effictive for unque meter for once.
Anti-temper: Tamper such as magnetic, damage, battery removal will trigger its protection mode and automatic shut-off. Only authorized field technician is allowed to restore the tampered meters.
Third Payment Integration: As the meter is working with token code instead of card or any physical media, the vending process can be wirelessly encrypted and integrated with local mobile payment or any other third party payment systems. This greatly increase revenue collection and cash flow management.
Calin provides complete set of API for your system integration for utmost mobility and functionality.
Features
a) Easy to integrate thrid payment platform, such as M-pesa, pay-as-you-go, USSD, SMS.
b) Strictly compliant with STS standard
c) Class B accuracy
d) Tamper and fraud proof
e) Configurable Low credit warning, emergency overdraft limit,
f) Multi-tariff setting
g) LCD display and counter display
Key benefits
1) Easy and quick installation
2) Easy vending for both utility and consumers
3) Quick cash back and instant money flow
4) Setting for free basic water, and debt recovery
5) Applicable for multi-dweller complex and tenants submetering scenarios
6) Zero maintenance cost
Specifications:
Nominal size |
Dn |
mm |
in-line |
||
15 |
20 |
25 |
|||
Maximum flow rate |
Q4 |
m3/h |
3.125 |
5.0 |
7.875 |
Ratio “R” |
Q3/Q1 |
|
80 |
80 |
80 |
Permanent l flow rate |
Q33 |
m3/h |
2.5 |
4.0 |
6.3 |
Transitional flow rate |
Q22 |
0.05 |
0.08 |
0.126 |
|
Minimum flow rate |
Q11 |
0.031 |
0.05 |
0.0787 |
|
Minimum reading |
m3 |
0.0005 |
|||
Maximum reading |
99999 |
Maximum Permission Error (MPE)
Q1≦Q≦,Q2 MPE =+ 5% Q2≦Q≦Q4, MPE= + 2% (For hot water metering, MPE=+ 3%)
Dimensions and diagram
Nominal size |
Length |
Width |
Height |
Thread |
mm |
D |
|||
15 |
165 |
101 |
124 |
G3/4B |
20 |
195 |
101 |
124 |
G1B |
25 |
225 |
101 |
124 |
G5/4B |
