IP54 RF Communication 2W Three Phase Electricity Meter

IP54 RF Communication 2W Three Phase Electricity Meter

  • IP54 RF Communication 2W Three Phase Electricity Meter
IP54 RF Communication 2W Three Phase Electricity Meter
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA368
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: Nigeria MAP Three Phase Smartmeter Asset Provider Program Standard: SANS1524-1 , IEC62056-21 , IEC62053-11
Dimensions: 272x127x77mm Weight: 2.5kg
Display: LCD Accuracy: Class 1s
Phase: Three Phase Electricity Meter Communication: RS485/PLC /RF/GSM/GPRS
Output Voltage: 220v/230v/240v Rural: Minigrid Offgrid Rural Electrification
High Light:

2W Three Phase Electricity Meter

,

IP54 Three Phase Electricity Meter

,

RF Three Phase Prepaid Meter

Nigeria MAP Three Phase Smartmeter asset provider program

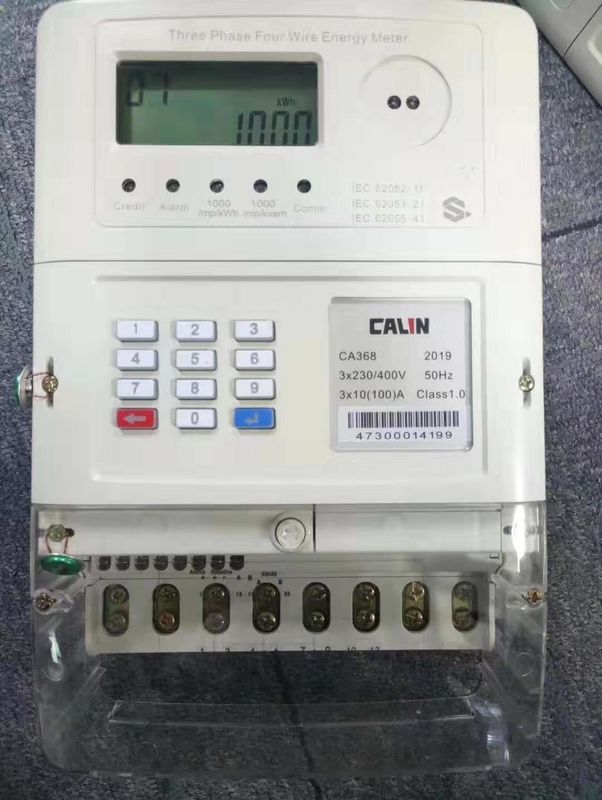

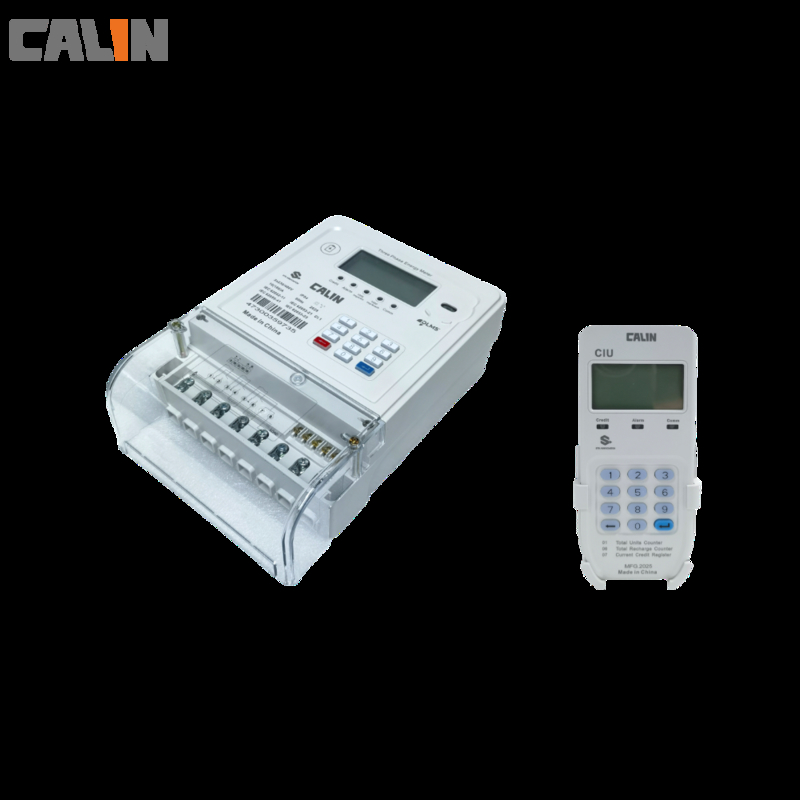

The CA368 is designed for high-power solar Mini Grid or main line measurement. The CA368 is BS footprint and three phase four wires meter, which can bear 10 A to 100 A current, the voltage of each phase is 230V (60%~120% Un). Furthermore, the CA368 is designed as STS keypad prepaid meter, operating the prepaid function based on the 20 digits STS Token, the meter will shut off the power automatically when the user consume all credits in the meter.

Built in a RF communication module for the CA368, will lead to the CA368 can support to developing a AMR management system. The data concentrator collect the data from nearby RF three phase prepaid smart meters by RF communication, and then upload the data to our cloud server by GPRS. You can remotely reading and monitoring the meters, and also can switch on/off the relay remotely.







Main Features

Compliance with STS (Standard Transfer Specification)
IR optical & RS485 port
Automatically shut off power when Credit be used up
Power limit and low credit warning can be programed flexibly.
Tamper detection and event record such as opening cover, reverse connection, black-out
Dual power source working on both prepayment and credit mode
Maximum demand measurement and load profiling (on request)


User Benefit

BS footprint, easy to install
Low operational and manintenance cost
PLC/ RF/ GPRS/GSM communication for AMR/AM I features on your request
Meter provides various valuable information by punching in Calin's short codes
Specifications:

Electrical parameters:

Nominal voltage Un

3x240V

Limited voltage

60%~120%Un

Frequency

50/60Hz+5%

Basic current(Ib)

10A

Maximum current(Imax)

100A

Starting current(Ist)

30mA

Active energy constant

400imp/kWh

Accuracy



Active energy to IEC62053‐21

Class1.0

Reactive energy to IEC62053‐23

Class2.0

Power Consumption



Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Temperature range



Operation meter

25℃ to+70℃

Storage

40℃ to+85℃



Insulation strength

AC Insulation strength

4kV at 50Hz during 1min

Impulse voltage 1.2/50μs mains connections

8kV





Electro Magnetic Compatibility

Electrostatic discharges



Contact discharge

8kV

Air discharge

16kV

Electromagnetic RF fields



27MHz to 500MHz typical

10V/m

100kHz to 1GHz typical

30V/m

Fast transient burst test

4kV

Mechanical requirements



Protection Rating

                          IP54

Insulation Classification

Protective Class II

Maximum cable size

10 mm

IP54 RF Communication 2W Three Phase Electricity Meter 0
IP54 RF Communication 2W Three Phase Electricity Meter 1IP54 RF Communication 2W Three Phase Electricity Meter 2IP54 RF Communication 2W Three Phase Electricity Meter 3
