| Place of Origin: | China |
| Brand Name: | Calin |
| Certification: | CE/SABS/IEC |
| Model Number: | CA168 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 30 days |
| Payment Terms: | western Union,Paypal, T/T, L/C |
| Supply Ability: | 50,000pcs per month |
| Product Name: | Nigeria MAP Single Phase Smartmeter Asset Provider Program | Latch Relay: | Build-in |
|---|---|---|---|
| Dimensions: | 155x120x52mm | Nominal Voltage Un: | 220/230/240Volt |
| Consumption Rate: | 1000 Imp/kWh | Accuracy: | Class 1 |
| Communication: | RF_LoRa | Phase: | Single Phase |
| High Light: | Smart Prepaid Electricity Meters,Off Grid Prepaid Electricity Meters,240Volt Prepaid Electricity Meters |
||

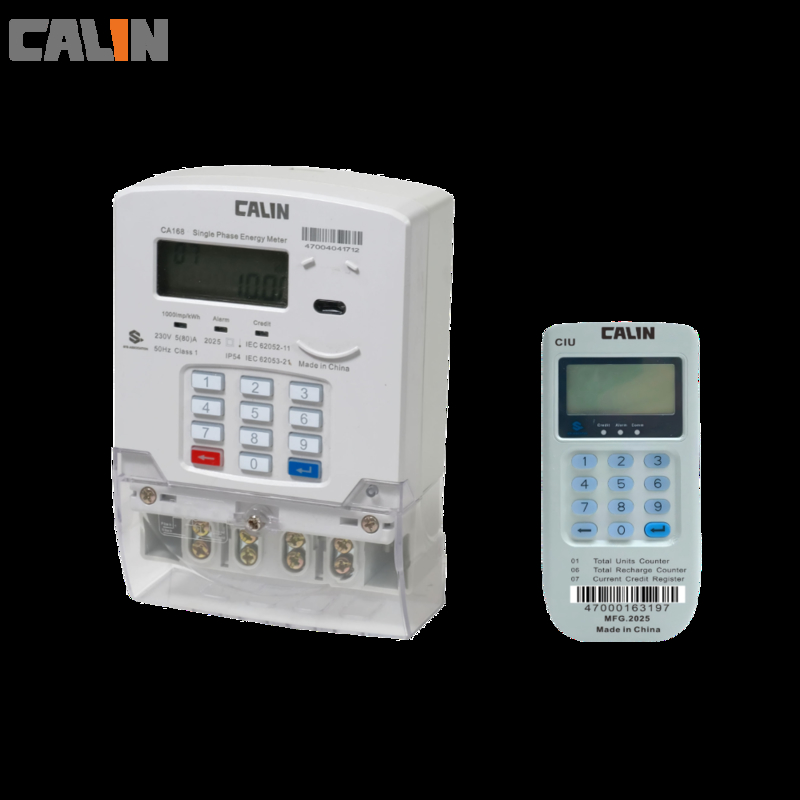

Off Grid Single Phase Smart Prepaid Electricity Meters with RF Module
Off Grid Single Phase Smart Prepaid Electricity Meter with RF Module
Along with the development of off-grid, mini-grid projects worldwide, the demand for accurate prepaid smart metering is getting robust each day. Calin CA168 single phase smart prepaid electric meter operates with STS IEC62052, the only international standard for prepayment metering. It is applicable for any off grid / mini-grid metering and revenue collection scenarios, especially for the places where the communication network is not reliable or zero since the meter can trip on tamper or credit finishes on its own without connection with the back-end server. The meter is built with SANS, IEC standards, the same as the ones supplied to the main grid power companies.
On top of the metrology features, Calin Single Phase Smart Prepaid Electricity Meter has built-in RF module that enable the meter to communicate with data concentrator and the back-end server system. This means the meter can be monitored and controlled remotely at the back-end side. Data dashboard is available for statistic analysis.
Major Features
STS encryption compliant
Significant reverse energy (SRE) decrement credit as in positive current flow
DLMS-COSEM standardized com port
Overload and no credit disconnections
Hybrid prepaid and credit mode
Preconfigured load limit and low credit warning
Tamper proof
Main Benefit
Wirelessly connected User Interface Unit (UIU)
Smart metering AMR AMI features
Time of Use (TOU), multi-tariff, holiday settings.
Debt collection
Specifications:
|
Nominal voltage Un |
220/230/240 volt |
Operating temperature |
25℃ to+70℃ |
|
Limited voltage |
70%~120%Un |
Storage temperature |
40℃ to+85℃ |
|
Nominal frequency fn |
50-60Hz+5% |
Insulation level |
4kV rms for 1min |
|
Basic current(Ib) |
5-10A |
Impulse voltage withstand |
8kV, 1.2/50 μs |
|
Maximum current(Imax) |
60-100A |
Air discharge |
16kV |
|
Starting current(Ist) |
20mA |
Immunity to HF fields |
|
|
Active energy constant |
1000imp/kWh |
80MHz to 2GHz with load |
10V/m |
|
Accuracy as Active energy to IEC62053‐21 |
Class1.0 |
100kHz to 1GHz without load |
30V/m |
|
Power consumption in Voltage circuit |
<2W <8VA |
Fast transient burst test |
4kV |
|
Power consumption in current circuit |
<1VA |
Meter shell Protection Rate |
IP54(IEC60529) |
|
Insulation System Classification |
Protective Class II |
|
|
