| Place of Origin: | China |
| Brand Name: | Calin |
| Certification: | CE/SABS/IEC |
| Model Number: | CA168-I |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 30 days |
| Payment Terms: | western Union,Paypal, T/T, L/C |
| Supply Ability: | 70,000pcs per month |
| Product Name: | Low Price Sinlgle Phase Prepaid Electric Meter | Neutral: | Measuring Neutral |
|---|---|---|---|
| Dimensions: | 255x120x52mm | Weight: | 600 G |
| Indicator: | LED | Accuracy: | Class 1s |
| Pulse Rate: | 1600 | Bore Diameter: | 8mm |
| High Light: | single phase kwh meter,single phase power meter,1 Phase STS Prepayment Meter |
||

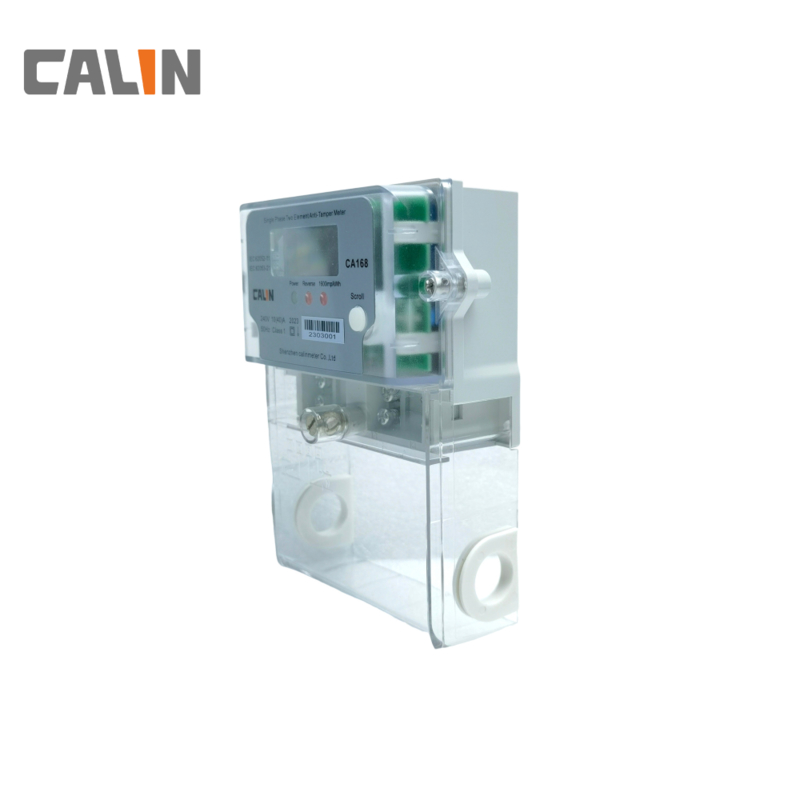

Entry Level Single Phase Electricity Meter 1600 Pulse Rate STS Prepayment Meter
The CA168-I is an entry level low price single phase electric meter with prepayment mode selection. It has build-in contactor or load switch that disconnects on preset limit of power threshhold, credit expiry, and tamper. The meter is intended for low income residential environments. Low price as it is, the meter is still rich in features, supporting bi-directional and neutral measurement, multi-rate and tariff plans, and data exchange with interrogation kit through an infrared optical port.
The meter is single phase two wire setup and built in a compact British Standard 5685 footprint mounting housing with polycarbonate fire retardant material and rugged RF withstand immunity of 30Vm, able to work in harsh environments. Tamper detection is another feature of this meter. Cover open, reverse connection and neutral missing can be detected and the meter disconnects the load on such tamper. In all the CA168-I is an ideal revenue protection tool for utility and service providers and convenient credit dispenser for consumers.
a) Maximum current of 80A with Class1 accuracy
b) Anti Tamper features
c) Symmetrical (BS) terminal arrangement
d) Physical tamper switch
e) 20 Digit STS with encryption
f) Optical port for data bus output
g) Keypad with 4x3 configuration
Specifications:
|
Meter Type |
Prepayment Single Phase meter |
|
Standard |
SPLN D3.009-1 : 2010 |
|
IEC 62052-11:2003 ; IEC 62053-21:2003 |
|
|
Network |
Single Phase 2 wires |
|
Measuring Scope |
Active Energy |
|
Class Index |
Class 1 |
|
Reference voltage |
120V 60Hz & 220V, 230V, 240V |
|
Frequency |
50Hz/60Hz |
|
Operating Voltage Range |
- 30% Un to +15% Un |
|
Power Consumption |
<2W and <10VA |
|
Basic Current |
5 A |
|
Maximum current |
80A (optional) |
|
Starting Current |
0.2% Ib |
|
Operating Temperature range |
-25°C to +55°C |
|
Limit temperature Range to transport and storage |
-25°C to + 85°C |
|
Degree of Protection |
IP 54 |
|
Immunity to impulse voltage |
6kV |
|
Relative Humidity |
Up to 95% |
|
Meter Weight |
1.3 kg |
|
Meter constant |
1600 pulse/kWh |
|
User Interface |
12 digit keypad with audio feedback |
|
7 segment LCD with spacial symbols |
|
|
LED Indicator |
|
|
Optical probe |
