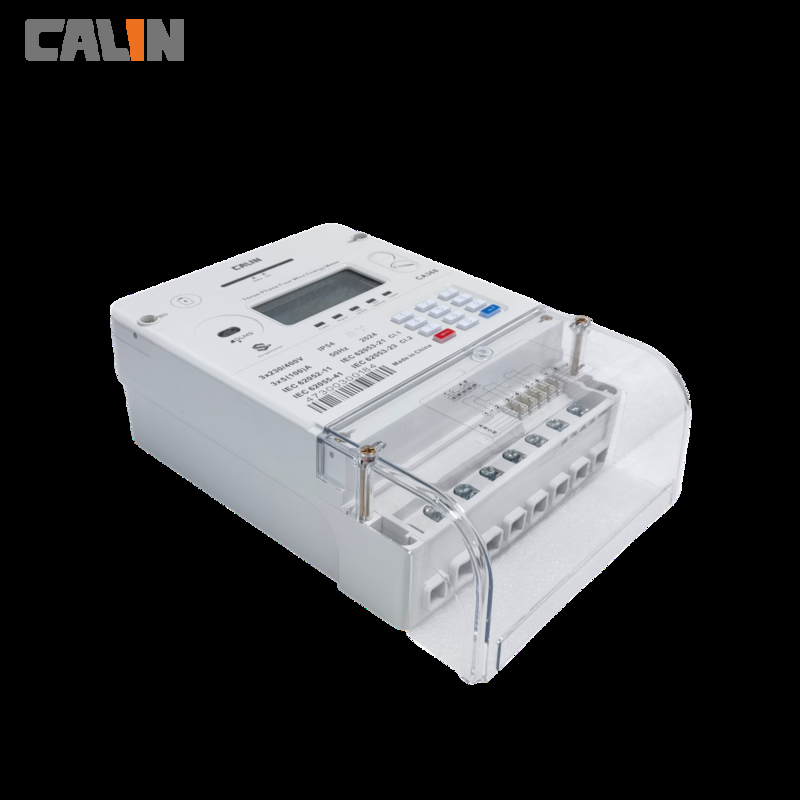

Gsm Ethernet Smart Power Meter 3 Phase Residential Power Meter With Icons

Gsm Ethernet Smart Power Meter 3 Phase Residential Power Meter With Icons

Gsm Ethernet Smart Power Meter 3 Phase Residential Power Meter With Icons

Product Details:

Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA368-DC

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: Modular DLMS Commercial Meter Connection: Whole Current Or Transformer Connection
Feature: Modular Communication Unit Weight: 2.5 Kg
Display: Backlit LCD 8 Digits With Icons Accuracy: Class 0.5s
Communication: GSM Ethernet Bore: 10 Mm

Gsm Ethernet Smart Power Meter 3 Phase Residential Power Meter With Icons



The CA368-DC meter is designed and upgraded from the basic version of CA368 for extended AMR / AMI applications in commercial,  industrial and substation environments. It is a three phase four wire electric commercial meter of 100 Amp per phase for whole current and 1.6 Amp for transformer connection. Its multi-modular-metering system provides maximum flexibility  ad serves as the smart grid platform. The meter takes utility and service providers to a new level of cost-effective meter data management. Its multi-modular design reduces their installation and maintenance cost and thus passes the saved cost as added value and convenience to the end consumers.



The meter is based on individual modules. More functionality can be achieved by adding an additional module. This unique approach ensures that the meter focus on its primary function as "measurement" and the extended functions can be added and removed according to local demand. Load profiling, Time of Use tariff, real-time data reading, load shedding, power limiting can be achieved by adding certain modules to the meter, allowing it to record serveral types of metrological data.



Features

1) Full compatibility and interoperability thanks to an open standard

2) Modular design for extended AMI capabilities

3) Full range metrological element measurement

4) 4 channels maximum demand measurement and load profile recording

5) Tamper proof and detection

6) Terminal block is available for both direct and transformer connection

7) IEC 62056-21 and DLMS/COSEM compliant



Utility Benefits

a) Free to choose the most suitable communication network

b) Customized metrological data collection by adding different modules

c) Low cost installation

d) Advanced load control features on demand and remote

e) Reduce operational and inventory costs

f) 24x7 online data exchange with the meter for dynamic statistic analysis

g) Long life time with remote upgrade features



Specifications:



Electrical parameters

Nominal voltage Un

3x 220/230/ 240V

Limited voltage

60%~120%Un

Frequency

50/60Hz+5%

Basic current(Ib)

10A

Maximum current(Imax)

100A

Starting current(Ist)

30mA

Active energy constant

400imp/kWh

Accuracy



Active energy to IEC62053‐21

Class1.0

Reactive energy to IEC62053‐23

Class2.0

Power Consumption



Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Temperature range



Operation meter

25℃ to+70℃

Storage

40℃ to+85℃



Insulation strength

AC Insulation strength

4kV at 50Hz during 1min

Impulse voltage 1.2/50μs mains connections

8kV





Electro Magnetic Compatibility

Electrostatic discharges



Contact discharge

8kV

Air discharge

16kV

Electromagnetic RF fields



27MHz to 500MHz typical

10V/m

100kHz to 1GHz typical

30V/m

Fast transient burst test

4kV

Mechanical requirements



Protection Rating

                          IP54

Insulation Classification

Protective Class II

Maximum cable size

10 mm



Gsm Ethernet Smart Power Meter 3 Phase Residential Power Meter With Icons

Gsm Ethernet Smart Power Meter 3 Phase Residential Power Meter With Icons
