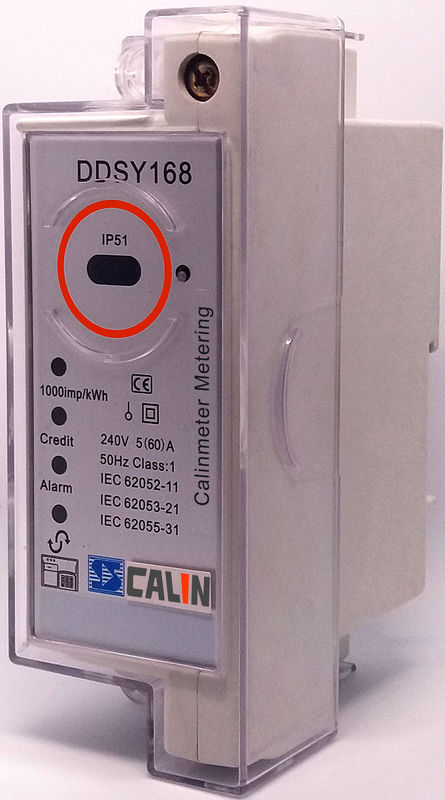

Audio Feedback Keypad Din Rail Kwh Meter , Single Phase Kwh Meter 240V

Audio Feedback Keypad Din Rail Kwh Meter , Single Phase Kwh Meter 240V

  • Audio Feedback Keypad Din Rail Kwh Meter , Single Phase Kwh Meter 240V
Audio Feedback Keypad Din Rail Kwh Meter , Single Phase Kwh Meter 240V
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168-S
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: 1 Phase PLC Din Rail STS Prepayment Meter Material: ABS Blend With Glass Fiber
Dimensions: 155x120x52mm Weight: 800 G
Bore Diameter: 7 Mm Accuracy: Class 1s
Communication: Power Line Carrier -G3 Com Port: Optical And ESKOM Interrogation Port
High Light:

din rail mounted kwh meter

,

din rail power meter

Audio Feedback Keypad Din Rail Kwh Meter , Single Phase Kwh Meter 240V



G3-Power Line Carrier(PLC) communication is an added feature of CA168-S electric meter. It means the communication bewteen the main meter, MCU and the customer interface unit, CIU, adopts European standard G3-PLC communication. The CA168-S is a solid keypad based single phase, 60Amp (80 Amp optional) split prepayment meter , complete in a Din Rail standard housing.

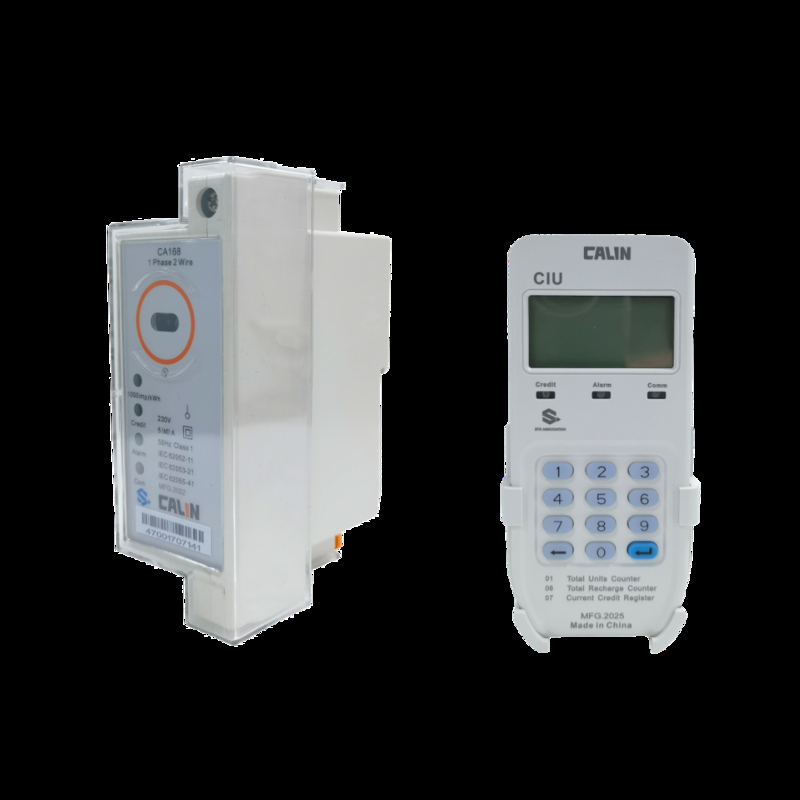

The concept of split type MCU+CIU meter is as the MCU is kept away remote from consumers, normally locked away in pavement kiosk or meter cabinet, making it immune to any form of tamper from the CIU that is installed within consumers' premise where there is an electrical plug point.. All critical metering, encryption,decrytpion, load control are all happening with the MCU. The 4x3 tactile and audible keypad allows consumers to punch in the token code to topup their electricity meter or short codes to toggle up information for them to budget their usage.



The wireless feature of G3-PLC communication provides the meter with the accessibility to a head-end system server for higher profile AMR AMI features such as real-time data, remote disconnect the meter, tariff upgrade, point-to-point text message..



Major Features

a) PLC communication with CIU and head-end server (HES)

b) IR optical and RS485 com port

c) Tamper detection neutral missing

d) Setting for power limit, emergency unit, free basic credit, repayment control, etc.

e) Operates in prepayment and post-payment mode

f) STS standard encryption Compliant

g) Language independent user interface

h) Diagnostic LED’s on the meter

i) Backlighting on customer interface display, audible and visual low credit alarm,

j) High surge withstand capability for areas prone to lightning or other line surges



User Benefits

1) Quick and easy to install - uses existing household wiring

2) Ideal for retrofitting or replacement of conventional meters

3) Compact and slim-line design makes deployment quick and low cost

4) IEC 62056-21 compliant optical allows utility to access information stored inside the meter

5) Landlords, complex manager or utility is free to input surcharge, tariff, debt collection settings



Specifications:

Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields



80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

 Protective Class II

Audio Feedback Keypad Din Rail Kwh Meter , Single Phase Kwh Meter 240V 0
