Tamper and Fraud Proof STS Prepaid Water Meter With a CIU in Home RF Communication

Tamper and Fraud Proof STS Prepaid Water Meter With a CIU in Home RF Communication

    • Tamper and Fraud Proof STS Prepaid Water Meter With a CIU in Home RF Communication
    • Tamper and Fraud Proof STS Prepaid Water Meter With a CIU in Home RF Communication
    • Tamper and Fraud Proof STS Prepaid Water Meter With a CIU in Home RF Communication
  • Tamper and Fraud Proof STS Prepaid Water Meter With a CIU in Home RF Communication

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA568

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 10,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Water Prepaid Meter Standard: 2004/22/EC(MID), OIML R49
    Weight: 1700 G Body Material: Brass
    Accuracy: Class B / R80 / R100 Type: Cold Domestic Meter

    Tamper and Fraud Proof STS Prepaid Water Meter With a CIU in Home RF Communication

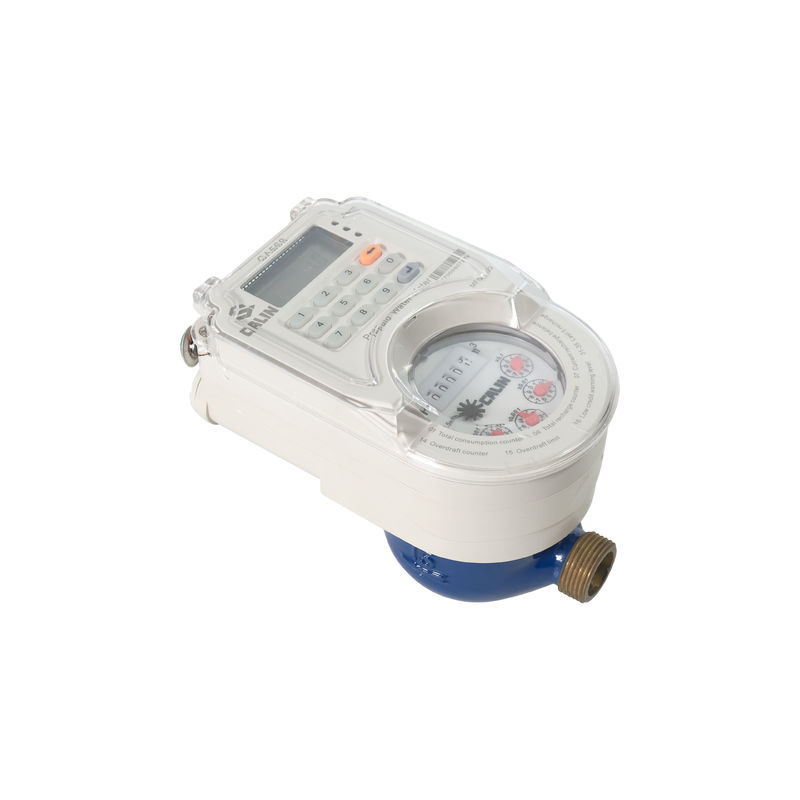

    The CA568  is a multi-jet dry dial type, cold water prepaid meter. The meter is designed for metering application in grit particle water meter environment. As multi-jet type, CA568 never gets clogged or lose accuracy during its life time. Double strainers protect the counter piece from damaged by small particles in water.  The ball valve inside is driven by a low energy motor and turns off when water credits finish or tamper is detected, or battery is low.

    The meter operates with latest STS prepayment standard and can be topup with 20 digits' token codes.  It supports all mainstream third party payment platforms such as mobile money, EasyPay, Direct Pay  Online (DPO), credit card, etc. It offers fast money recovery and 24x7 non-watch vending.

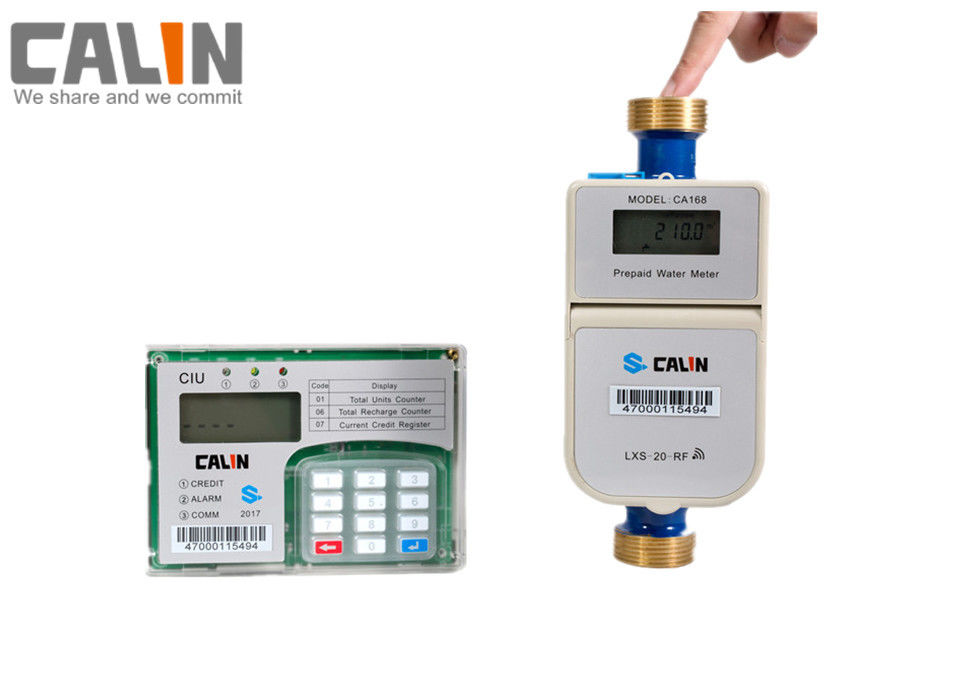

    CA568-S is offered with a handy remote keypad as "CIU", customer interface unit. It is mounted within customers house and in radio  connection with the meter installed out side.  Customer can input recharge token and toggle info check on CIU with no touch with the meter. This split mechanism vastly prevents tamper.

    Water meter is being a great market in Africa, we have provided it to Nigeria, Ethiopia, Kenya and so on

    Calinmeter is so far the only manufacturer in China who has applied STS technology not only electricity meter but also water meter. I believe that Calinmeter can make your metering business better and better









    Features

    a) Size selection from DN15 up to DN100 on request

    b) International standard compliant  STS

    c)  Disconnect or limit water supply when credit finishes

    d)  Radio connection between keypad and meter   LoRa Spec 1.pdf

    e)  LCD and Counter register dual display

    f)   Strainer protection

    g)  Tamper and fraud proof

    h)  Low battery  low credit alarm

    i)  Zero power need for data retention

    j)  Support for mobile payment, PayGo, EasyPay





     Key benefits



    1) Instant money back and good cashflow

    2) Tariff , charge, debt collection setting allowed

    3) 24x7 vending , non-watch operation

    4) Tamper prevention

    5) Radio supporting drive-by reading and AMR   HHU T50 Specification.pdf

    6) Remote turn on/ off the valve

    7) Interfacing with other MDMS, CRM or billing systems





    Specifications:







    Nominal size



    Dn



    mm

                    in-line

    15

    20

    25

    Maximum flow rate

    Q4

    m3/h

    3.125

    5.0

    7.875

    Ratio “R”

        Q3/Q1



    80

    80

    80

    Permanent l flow rate

    Q33





    m3/h

    2.5

    4.0

    6.3

    Transitional flow rate

    Q22

    0.05

    0.08

    0.126

    Minimum flow rate

    Q11

    0.031

    0.05

    0.0787

    Minimum reading



    m3

    0.0005

    Maximum reading

    99999



    Maximum Permission Error (MPE)

    Q1≦Q≦,Q2    MPE =+ 5%           Q2≦Q≦Q4,    MPE= + 2% (For hot water metering, MPE=+ 3%)



    Dimensions and diagram



    Nominal size

    Length

    Width

    Height

    Thread

    mm

    D

    15

    165

    101

    124

    G3/4B

    20

    195

    101

    124

    G1B

    25

    225

    101

    124

    G5/4B
