| Place of Origin: | China |
| Brand Name: | Calin |
| Certification: | CE/SABS/IEC |
| Model Number: | CA168 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 30 days |
| Payment Terms: | western Union,Paypal, T/T, L/C |
| Supply Ability: | 10,000pcs per month |
| Product Name: | Split Type LCD Display RF Communication Prepaid Water Meter | Standard: | 2004/22/EC(MID), OIML R49 |
|---|---|---|---|
| Weight: | 1300 G | Display: | LCD / Counter |
| Accuracy: | Class B | Communication: | RF |
| High Light: | remote water meter,electronic water meter,multi jet prepaid watermeter |
||

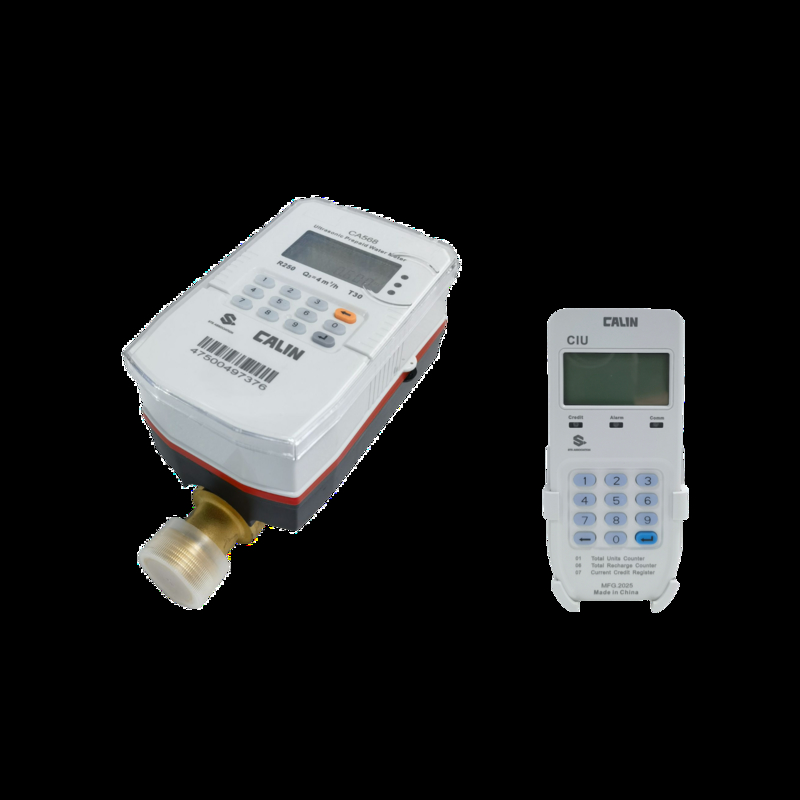

The CA168 is a multi-jet wet type, prepaid water meter. The meter works with a low power bistable latched valve driven by battery that is able to open and shut for 4 million times during battery lifetime. CA168 series assure you of continuously good metrology and revenue protection at the same time.The electronic part of the meter is potted and sealed above on the metering chamber, away from the water, which makes the meter water proof and adaptable to humid and tropical environments.
A customer interface unit (CIU) will work with water meter, customer purchase 20 digits token code from the vendor and enter rechage via the keypad of CIU in home. It is kept away from the meter which prevent the meter from being tampered and damaged. Customer can check the meter's data credit status and historical usage data from the LCD of CIU
With our broad range of prepaid vending solutions, a utility or service provider can manage CAW series water meter along with STS prepaid electricity meters in one vending system.
Calinmeter is original meter manufacturer and solution provider, we not only produce our own products but also ODM / OEM with other meter manufacturers, For water meter, our company has strong technical support and advanced system service, For further information, please contact us freely.
Features
a) Mobile payment, mobile money, e-wallet
b) DN15 up to DN100 on request
c) IP67 water proof
d) 300 meters communication range bw CIU and meter
e) No-wire installation
f) R80, R100 Class B accuracy
g) Auto shut on tamper, magnetic, battery loss, case damage
h) Low credit warning can be configured by authorized person
i) Zero data loss in abscense of power
j) wireless communication prepared for AMR functions
k) Interface with other 3rd party system ERP CRM billing etc.
Key benefits
1) Light weight , easy to install
2) Easy tariff setting with vending system
3) Quick money back and good cash-flow management
4) Immune to grid particles, dirt, rust , etc
5) Handheld walk-by drive by reading and automatic reading
6) Remote lock up and unlock
Specifications:
|
Nominal size |
Dn |
mm |
in-line |
||
|
15 |
20 |
25 |
|||
|
Maximum flow rate |
Q4 |
m3/h |
3.125 |
5.0 |
7.875 |
|
Ratio “R” |
Q3/Q1 |
|
80 |
80 |
80 |
|
Permanent l flow rate |
Q33 |
m3/h |
2.5 |
4.0 |
6.3 |
|
Transitional flow rate |
Q22 |
0.05 |
0.08 |
0.126 |
|
|
Minimum flow rate |
Q11 |
0.031 |
0.05 |
0.0787 |
|
|
Minimum reading |
m3 |
0.0005 |
|||
|
Maximum reading |
99999 |
||||
Maximum Permission Error (MPE)
Q1≦Q≦,Q2 MPE =+ 5% Q2≦Q≦Q4, MPE= + 2% (For hot water metering, MPE=+ 3%)
Dimensions and diagram
|
Nominal size |
Length |
Width |
Height |
Thread |
|
mm |
D |
|||
|
15 |
165 |
101 |
124 |
G3/4B |
|
20 |
195 |
101 |
124 |
G1B |
|
25 |
225 |
101 |
124 |
G5/4B |
