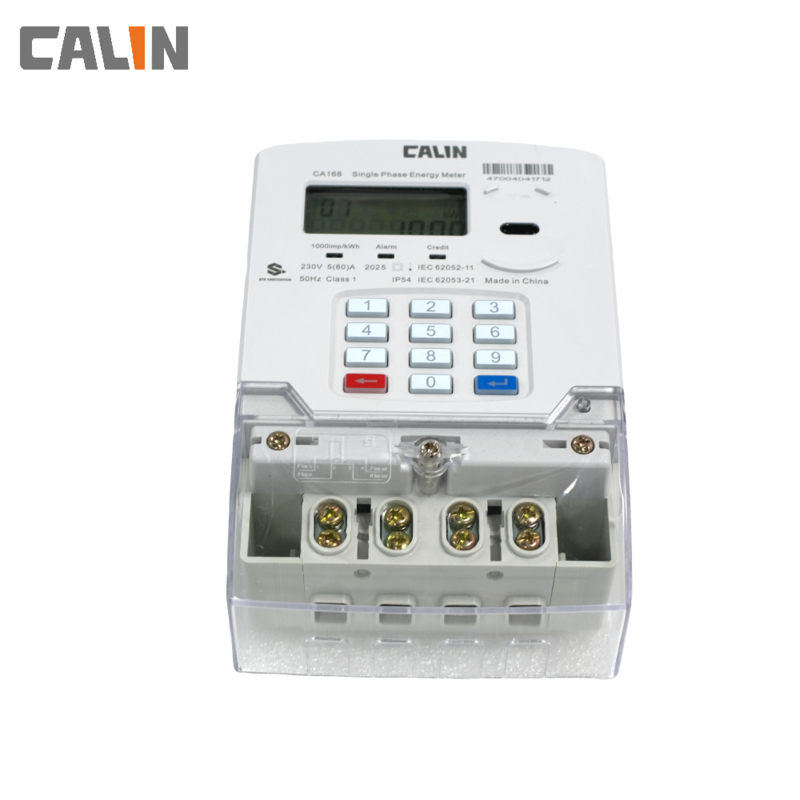

STS Single Phase Power Meter Prepayment Keypad Electricity Meter With PLC / RF Communication

STS Single Phase Power Meter Prepayment Keypad Electricity Meter With PLC / RF Communication

    • STS Single Phase Power Meter Prepayment Keypad Electricity Meter With PLC / RF Communication
    • STS Single Phase Power Meter Prepayment Keypad Electricity Meter With PLC / RF Communication
  • STS Single Phase Power Meter Prepayment Keypad Electricity Meter With PLC / RF Communication

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: DDSY168

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Detailed Product Description
    Product Name: Single Phase Electric Prepaid Meter Latch Relay: Build-in
    Dimensions: 155x120x52mm Weight: 700 G
    Consumption Rate: 1600 Imp/kWh Accuracy: Class 1
    Data Port: Infrared Optical Split Keypad: Optional
    Communication: PLC / RF

    STS Single Phase Power Meter Prepayment Keypad Electricity Meter With PLC / RF Communication

    The DDSY168 is used for a wide range of applications, due to an improved dynamic range allowing a basic current of 5 Amp while retaining a maximum current of 80 Amp and extended functional features. It is a compact and keypad-based design in a BS8565 standard housing and maintains the rugged RF immunity withstand of 30V/m and IP54 rating, allowing it to be installed in harsh environments.





    Major Features

    1. 20 digit (Standard Transfer Specification) STS encryption
    2. Detection of significant reverse energy (SRE)
    3. IEC62056-21 compliant port allowing for easy data interrogation
    4. Disconnects on overload and no credit
    5. Dual power source working on both prepaid and credit mode
    6. Programmable load limit and low credit warning
    7. Detection and record tamper event such as cover open, reversal, black-out, etc.
    8. Easy access to 12 months historical consumption data and last 5 token entered



     Utility benefit

    1. Easy connection to User Interface Unit (UIU) for split type applications
    2. PLC/ RF / GPRS wireless communication with a head-end AMR/AMI server
    3. Time of Use (TOU), multi-tariff, holiday setting.
    4. Advanced load control and disconnection features





    Specifications:



    Nominal voltage Un

    220/230/240 V

    Limited voltage

    70%~120%Un

    Nominal frequency fn

    50-60Hz+5%

    Basic current(Ib)

    5-10A

    Maximum current(Imax)

    60-100A

    Starting current(Ist)

    20mA

    Active energy constant

    1000imp/kWh

    Accuracy as Active energy to IEC62053‐21

    Class1.0

    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Operating temperature

    25℃ to+70℃

    Storage temperature

    40℃ to+85℃

    Insulation level

    4kV rms for 1min

    Impulse voltage withstand

    8kV, 1.2/50 μs

    Air discharge

    16kV

    Immunity to HF fields



    80MHz to 2GHz with load

    10V/m

    100kHz to 1GHz without load

    30V/m

    Fast transient burst test

    4kV

    Meter shell Protection Rate

    IP54(IEC60529)

    Insulation System Classification

     Protective Class II



     STS Single Phase Power Meter Prepayment Keypad Electricity Meter With PLC / RF CommunicationSTS Single Phase Power Meter Prepayment Keypad Electricity Meter With PLC / RF CommunicationSTS Single Phase Power Meter Prepayment Keypad Electricity Meter With PLC / RF CommunicationSTS Single Phase Power Meter Prepayment Keypad Electricity Meter With PLC / RF CommunicationSTS Single Phase Power Meter Prepayment Keypad Electricity Meter With PLC / RF Communication
