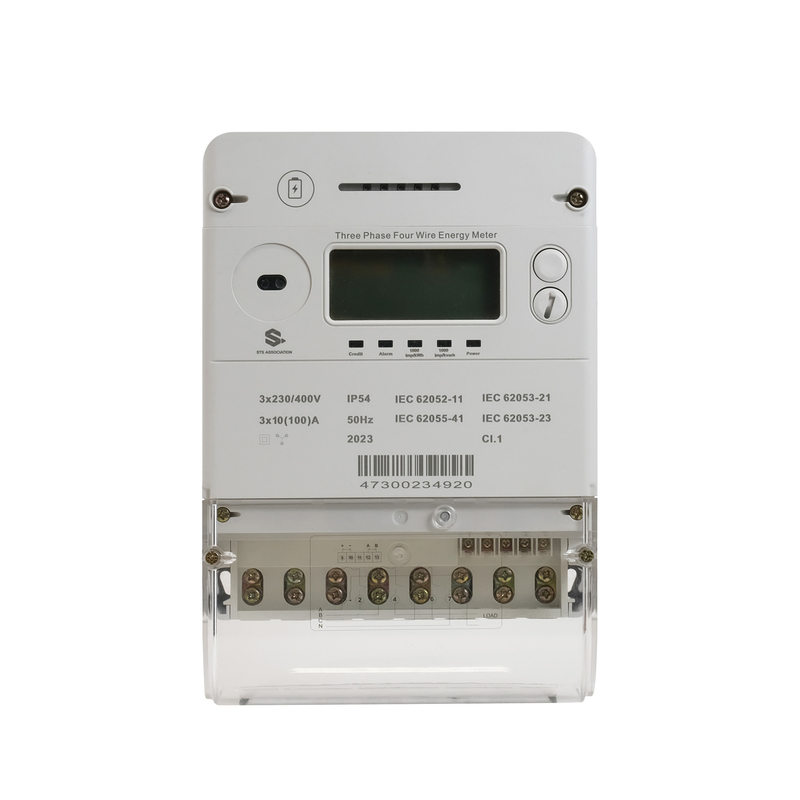

Commercial Smart Electric Meters , Automated Reading 3 Phase Power Meter Kwh

Commercial Smart Electric Meters , Automated Reading 3 Phase Power Meter Kwh

    • Commercial Smart Electric Meters , Automated Reading 3 Phase Power Meter Kwh
  • Commercial Smart Electric Meters , Automated Reading 3 Phase Power Meter Kwh

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA368-DC

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: GSM DLMS Three Phase Smart Electric Meter Communication: GSM / Ethernet
    Metrological: 4 Channel Elements Weight: 2.5 Kg
    Display: Backlit LCD 8 Digits With Icons Accuracy: Class 0.5s
    Clock: Build-in Bore Size: 10 Mm
    High Light:

    smart power meter

    ,

    wireless smart meters

    Commercial Smart Electric Meters , Automated Reading 3 Phase Power Meter Kwh



    The CA368-DC  is an IEC standards compliant three  phase four wire smart electric meter. It is completed in  BS footprint housing and  integrated with large innovative capabilities, such as powerful e-metering, multienergy data collection, remote and local communication. This new generation of metering device has been developed as a core component of the Calin’s smart metering solution to optimize daily utility processes.



    The meter is intended for  communicating with a head-end central station server (HES)  through GSM / GPRS / Ethernet connectivity for smart metering interactions on real time basis. It is ideal for a broad range of commercial and inustrial environments. The meter measures active and reactive energy and its terminal block provides both direct and CT/VT connection. It is built-in with a clock countsas incrementing second index. This index is synchronized with the real time in HES at preset interval period, offering the utility utmost flexibility of tariff calculation and system management.   This flexibiity futhermore enables the utility to apply different contractual control to each of the customer with no need to visit customer's premises or adding accessories from time to time.



     The connectivity of GSM GPRS enables the utility and service providers to have a real-time monitoring and control on the load in the grid and improve their  managing efficiency at peak hours. The CA368-DC records maximum demand and load profiling data at programmed intervals and provides valuable instantaneous value for P, V, A, PF for the utility and customer as  well for them to budget their usage and manage the load.





    Main Features

    a) Multi-rate and holiday settings on Time of Use (TOU) basis

    b) Open standard of DLMS /COSEM

    c) 4 channels maximum demand and load profile recording

    d) Metrological element measurement : voltage, current, power quality and harmonics.

    e) Tamper protection

    f) Terminal block for both direct and transformer connection





            Key Benefits

    1) Reduced inventory cost

    2) Reduced data collection cost

    3) Reduced non-technical loss being introduced by human interventions

    4) Customized metrological data reading

    5) Advanced load control features

    6) Reduce operational cost

    7) Withstand adverse environments

    8) Long life time with remote upgrade features





    Specifications:





    Electrical parameters

    Nominal voltage Un

    3x 220/230/ 240V

    Limited voltage

    60%~120%Un

    Frequency

    50/60Hz+5%

    Basic current(Ib)

    10A

    Maximum current(Imax)

    100A

    Starting current(Ist)

    30mA

    Active energy constant

    400imp/kWh

    Accuracy



    Active energy to IEC62053‐21

    Class1.0

    Reactive energy to IEC62053‐23

    Class2.0

    Power Consumption



    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Temperature range



    Operation meter

    25℃ to+70℃

    Storage

    40℃ to+85℃



    Insulation strength

    AC Insulation strength

    4kV at 50Hz during 1min

    Impulse voltage 1.2/50μs mains connections

    8kV





    Electro Magnetic Compatibility

    Electrostatic discharges



    Contact discharge

    8kV

    Air discharge

    16kV

    Electromagnetic RF fields



    27MHz to 500MHz typical

    10V/m

    100kHz to 1GHz typical

    30V/m

    Fast transient burst test

    4kV

    Mechanical requirements



    Protection Rating

                              IP54

    Insulation Classification

    Protective Class II

    Maximum cable size

    10 mm
