Botswana Split Keypad STS Long Battery Lifespan Prepaid Water Meter with CIU

Botswana Split Keypad STS Long Battery Lifespan Prepaid Water Meter with CIU

  • Botswana Split Keypad STS Long Battery Lifespan Prepaid Water Meter with CIU
  • Botswana Split Keypad STS Long Battery Lifespan Prepaid Water Meter with CIU
  • Botswana Split Keypad STS Long Battery Lifespan Prepaid Water Meter with CIU
Botswana Split Keypad STS Long Battery Lifespan Prepaid Water Meter with CIU
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA568
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Product Name: Split Keypad STS Prepaid Water Meter Standard: 2004/22/EC(MID), OIML R49
Weight: 1300 G Display: LCD / Counter
Accuracy: Class B Communication: RF
High Light:

remote water meter

,

electronic water meter

Botswana Split Keypad STS Long Battery Lifespan Prepaid Water Meter with CIU

Multi-jet type is the most suitable meter type as it sustains in grit particle water and won't get clogged or lose accuracy.  CA568 is latest STS prepayment standard compliant prepaid water meter.  The meter has an internal ball valve driven by low energy motor and therefore is able to shut off when water credit runs out or tamper is detected. The battery lasts three years and can be replaced by authorized staff.  CA568 series assure you of continuously good metrology and revenue protection at the same time. It is durable and long lasting and provides accurate meter data.

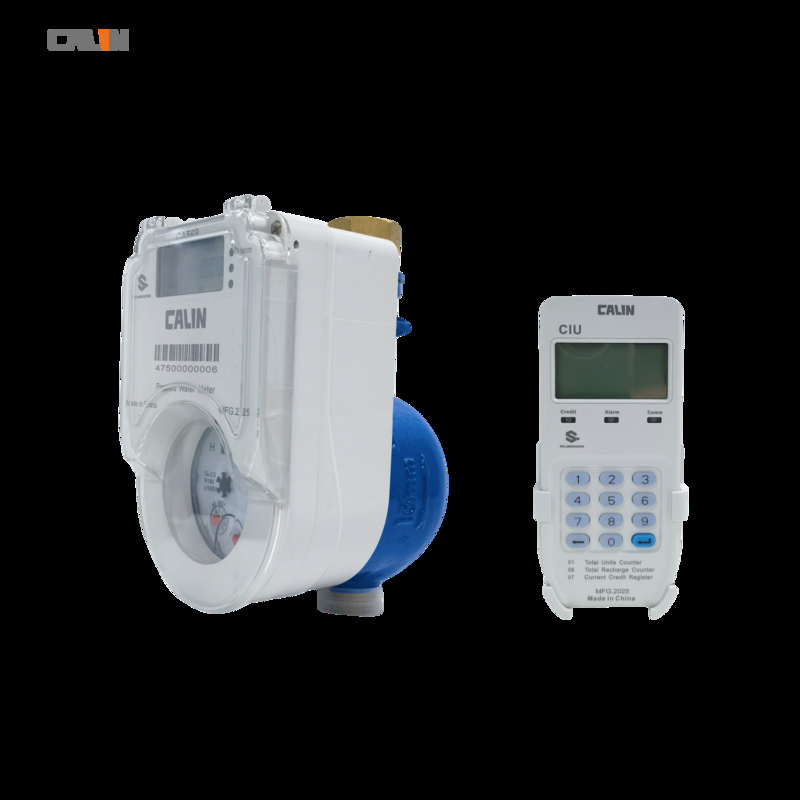

CA568 operates with a split keypad called CIU ( customer interface keypad) which is mounted within customer's house and connect with the meter via radio. Customer can input top-up token codes and toggle up information mode on CIU. This design of mechanism greatly reduce the risk of tamper. As whatever CIU is messed, no damage or influence will be passed to the meter.

Calin STS prepaid meter supports mainstream third party payment systems, such as mobile money, credit card or online banking payment. Customers do not need to visit physical sales point , but just press on their mobile phones or tablet to submit their purchase and get top-up token in return.





I believe that Calinmeter can make your metering business better and better









Features

a)  Size wise from DN15 to DN100

b)  STS compliant

c)  Meter shuts off when credit finishes or tamper is detected

d)  Radio connection between two parts

e)  Payment and customer information is encrypted

f)   Applicable for humid and tropical scenario

g)  Tamper and fraud proof

h)  Alarm for low credit  and low battery

i)   No data loss in absence of power

j)   Double strainer

k)  non-return valve



 Key benefits



1) Back flow prevention

2) Stable accuracy and no clog

3) Instant money back with improved cashflow

4) Free basic water, overdraft, repayment policy setting

5) Mobile money supporting

6) AMR meter readout and control







Specifications:







Nominal size



Dn



mm

                in-line

15

20

25

Maximum flow rate

Q4

m3/h

3.125

5.0

7.875

Ratio “R”

    Q3/Q1



80

80

80

Permanent l flow rate

Q33





m3/h

2.5

4.0

6.3

Transitional flow rate

Q22

0.05

0.08

0.126

Minimum flow rate

Q11

0.031

0.05

0.0787

Minimum reading



m3

0.0005

Maximum reading

99999



Maximum Permission Error (MPE)

Q1≦Q≦,Q2    MPE =+ 5%           Q2≦Q≦Q4,    MPE= + 2% (For hot water metering, MPE=+ 3%)



Dimensions and diagram



Nominal size

Length

Width

Height

Thread

mm

D

15

165

101

124

G3/4B

20

195

101

124

G1B

25

225

101

124

G5/4B
