Congo Remote Keypad Prepaid Water Meters CIU Recharge Token Codes

Congo Remote Keypad Prepaid Water Meters CIU Recharge Token Codes

  • Congo Remote Keypad Prepaid Water Meters CIU Recharge Token Codes
  • Congo Remote Keypad Prepaid Water Meters CIU Recharge Token Codes
Congo Remote Keypad Prepaid Water Meters CIU Recharge Token Codes
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA568
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Product Name: Remote Keypad CIU Recharge Token Codes STS Compliant Prepaid Water Meter Standard: 2004/22/EC(MID), OIML R49
Weight: 1300 G Display: LCD / Counter
Accuracy: Class B Communication: RF
High Light:

remote water meter

,

prepayment water meter

Congo Remote Keypad CIU Recharge Token Codes STS Compliant Prepaid Water Meter

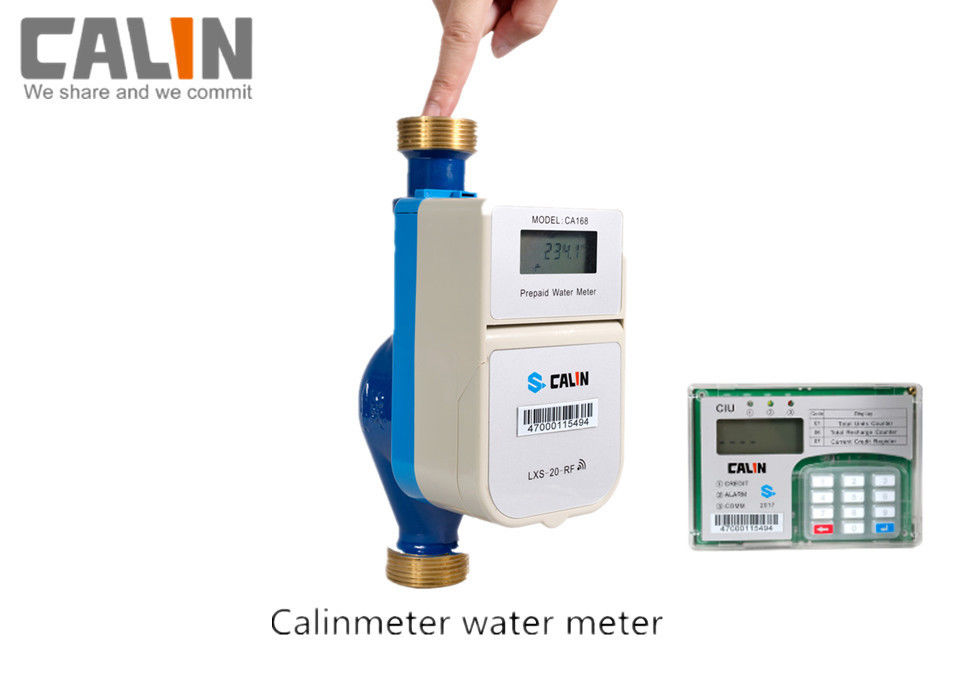

CA568 is Calinmeter's  multi-jet wet / dry type, STS prepaid water meter.  The meter works with a low power motor driven hydraullical ball valve and shuts off when water credits are used up.  Non-return valve and double layer strainer is built within. The meter is immune to small particles such as dirt and pipe rust thanks to its dual strainer design.  It is mechanically stable and secured, never be jammed. Accuracy never drops in dirty water operating environment.

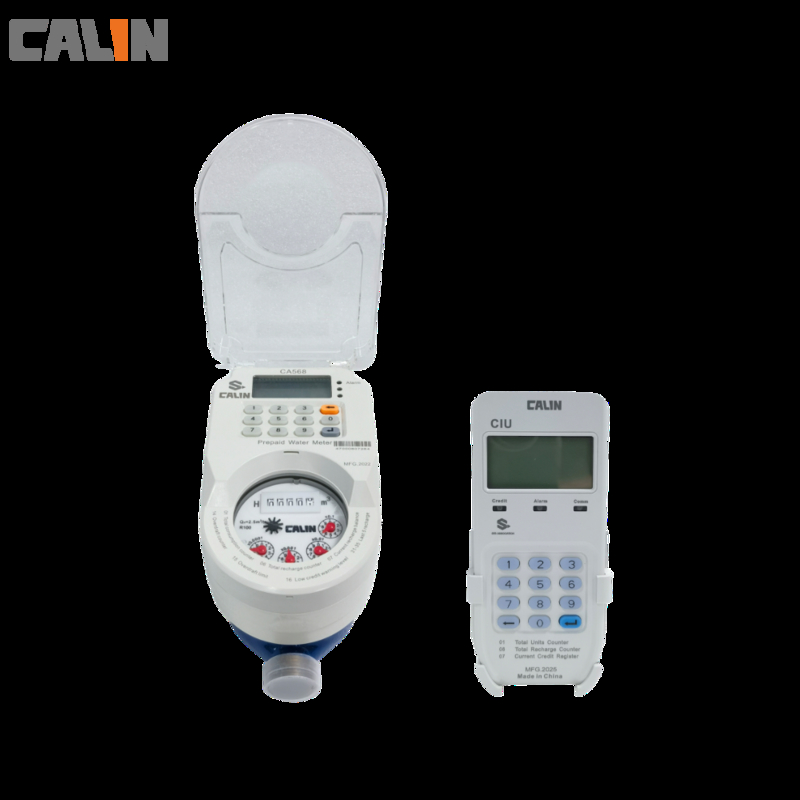

The prepaid water meter works with a Customer Interface Unit (CIU) to be installed within consumer's house.  Consumers buy recharge token for water units from the vendor's kiosk or through mobile money. The recharge token is a 20 digits' code which can be entered manually on CIU in house.

Customer can also toggle up meter' information or input history by entering short codes on CIU.



Calinmeter is pioneer of STS prepayment metering in China. We are number 47 STS Association member in South Africa. For water meter, our company has strong technical support and advanced system service, For further information, please contact us freely.









Features

a) Various sizes avaiable from DN15 to DN150

b) Brass / plastic meter avaiable on request

c)  Backflow prevention

d)  Up to 300 meters com range bw CIU and meter

e)  Dual display  :  LCD and counter register

f)   Up to 5 year battery life and battery is replacable

g)  Shut off on tamper, magnetic, battery removal

h)  Low credit alarm, low battery warning available

i)   Life time Data storage in abscence of battery power

j)   Wireless communication for AMR AMI setups ( on request for high end features)





 Key benefits



1) Fast installation with no extra cost of wires

2) Integration with mobile money, mobile payment, easy cash back and cash-flow

3) Revenue protection and improved efficiency

4) FBU, overdraft, emergency unit setting

5) Detect non-revenue water in AMR setups ( on request)

6) Remote reading and valve control ( optional for AMR setups)





Specifications:







Nominal size



Dn



mm

                in-line

15

20

25

Maximum flow rate

Q4

m3/h

3.125

5.0

7.875

Ratio “R”

    Q3/Q1



80

80

80

Permanent l flow rate

Q33





m3/h

2.5

4.0

6.3

Transitional flow rate

Q22

0.05

0.08

0.126

Minimum flow rate

Q11

0.031

0.05

0.0787

Minimum reading



m3

0.0005

Maximum reading

99999



Maximum Permission Error (MPE)

Q1≦Q≦,Q2    MPE =+ 5%           Q2≦Q≦Q4,    MPE= + 2% (For hot water metering, MPE=+ 3%)



Dimensions and diagram



Nominal size

Length

Width

Height

Thread

mm

D

15

165

101

124

G3/4B

20

195

101

124

G1B

25

225

101

124

G5/4B
