RF Communication High Accuracy Prepaid Water Meter with AMI/AMR System split design

RF Communication High Accuracy Prepaid Water Meter with AMI/AMR System split design

  • RF Communication High Accuracy Prepaid Water Meter with AMI/AMR System split design
  • RF Communication High Accuracy Prepaid Water Meter with AMI/AMR System split design
  • RF Communication High Accuracy Prepaid Water Meter with AMI/AMR System split design
  • RF Communication High Accuracy Prepaid Water Meter with AMI/AMR System split design
  • RF Communication High Accuracy Prepaid Water Meter with AMI/AMR System split design
RF Communication High Accuracy Prepaid Water Meter with AMI/AMR System split design
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Product Name: Prepaid Water Meter With AMI/AMR System Design Type: Split MCU + CIU
Body Material: Brass Display: LCD / Counter
Accuracy: Class B / R100 Work Pressure: 1.6 MPA / 16 BAR
High Light:

remote water meter

,

prepayment water meter

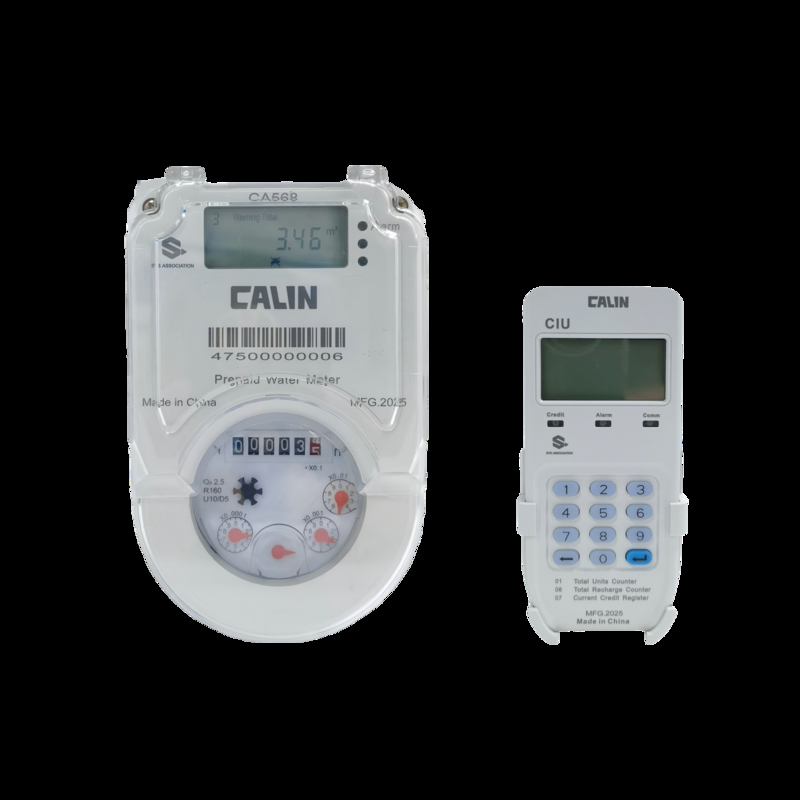

RF Communication High Accuracy Prepaid Water Meter with AMI/AMR System split design

CA568-S  is the medium class end product of latest STS prepayment algorithm technology. It is the most cost-effective type among Calin's water metering product line. It is a multi-jet type, dry dial and wet dial, prepaid water meter.  The meter has an internal ball valve driven by low energy motor which enable it to shut off when credit finishes or tamper is detected.  The water credit is a group of 20 digits code generated by a unique STS vending system. Customer can purchase such code from the vendor or on their mobile phones and enter that code to the meter for topup.



Another brilliant feature is its split design. A handy remote keypad CIU as customer interface unit is offered with the meter. The CIU is installed in customer's premise, it is kept away from the meter reduce the risk of tamper and fraud proof, customer can know the meter's data credit status and historical usage date from the LCD of CIU



Supporting any 3rd party payment such as mobile money, PayGo , or online banking assures the most convenience and security for both service providers and consumers.









Features

a)  DN15, 20 and 25  up to DN 100 available on request

b) STS compliant

c) CIU and meter in wireless connection

d) Sustain in humid and tropical environments

e) LCD and Counter register display

f)  Shuts down on tamper and has seals to indicate tamper status

g) Tamper and fraud proof, revenue protection

h)  Low credit alarm and low battery alarm, configurable

i)   Sustain up to 40Bar pressure





 Key benefits



1) Ready for AMR / AMI functions (optional)

2) Instant money back and efficient revenue management

3) Mobile payment compatible

4) Tariff and contractual setting flexible

5) Tamper proof

6) Money count and cost effective







Specifications:







Nominal size



Dn



mm

                in-line

15

20

25

Maximum flow rate

Q4

m3/h

3.125

5.0

7.875

Ratio “R”

    Q3/Q1



80

80

80

Permanent l flow rate

Q33





m3/h

2.5

4.0

6.3

Transitional flow rate

Q22

0.05

0.08

0.126

Minimum flow rate

Q11

0.031

0.05

0.0787

Minimum reading



m3

0.0005

Maximum reading

99999



Maximum Permission Error (MPE)

Q1≦Q≦,Q2    MPE =+ 5%           Q2≦Q≦Q4,    MPE= + 2% (For hot water metering, MPE=+ 3%)



Dimensions and diagram



Nominal size

Length

Width

Height

Thread

mm

D

15

165

101

124

G3/4B

20

195

101

124

G1B

25

225

101

124

G5/4B
