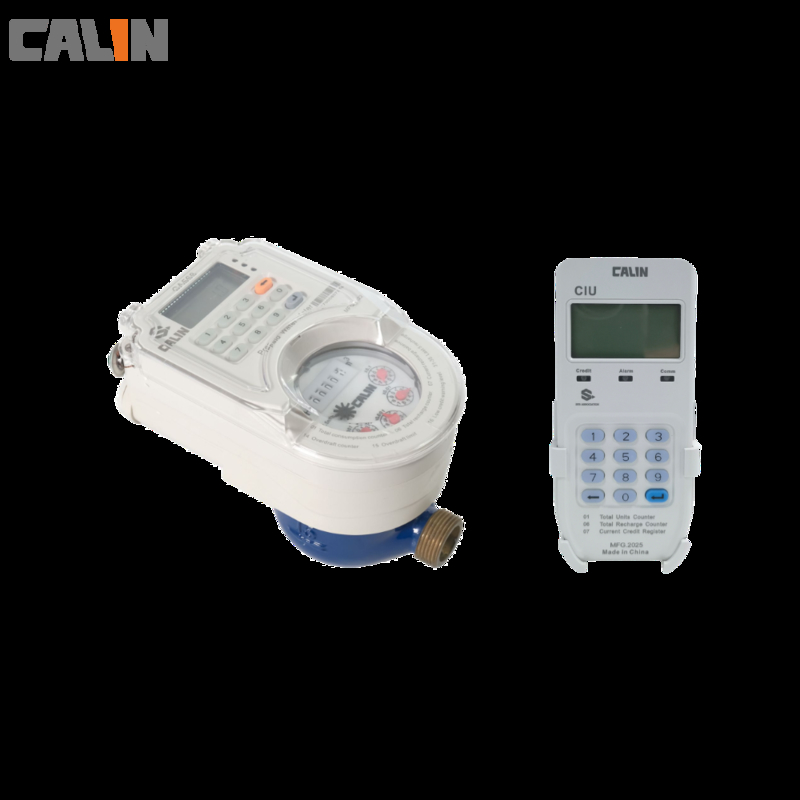

STS Prepaid Water Meters , Electronic Class B Multi Jet Water Meter

STS Prepaid Water Meters , Electronic Class B Multi Jet Water Meter

  • STS Prepaid Water Meters , Electronic Class B Multi Jet Water Meter
  • STS Prepaid Water Meters , Electronic Class B Multi Jet Water Meter
  • STS Prepaid Water Meters , Electronic Class B Multi Jet Water Meter
STS Prepaid Water Meters , Electronic Class B Multi Jet Water Meter
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CAW-K
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Product Name: Keypad Type STS Prepaid Water Meter Standard: STS, 2004/22/EC(MID), OIML R49
Weight: 1300 G Display: LCD / Counter
Accuracy: Class B Protection: IP67
High Light:

remote water meter

,

electronic water meter

Indonesia STS Keypad Prepaid Water Meters , LCD Display Electronic Class B Multi-jet Water Meter

Indonesia is one of the earliest countries in Asia started STS metering. And this  CAW-K series  STS (Standard Transfer Specification) compliant prepaid water meter suits such scenario. It has electronic valve and it is reharged via a built-on 4x3 keypad.  CAW-K series  assure of continuously good metrology and revenue protection at the same time.The electronic part of the meter is  sealed away from the water, and two strainers are built within the meter chamber, which make the meter workable for extreme humid and particle foreign substances environment..



The meter operates with STS standard compliant 20 digits' code to handle credit . As is code, the recharge credit can be transferred in a digital way and therefore 3rd party payment can be utilized for 24x7 vending.It is easy to use and calculate smartly, No need staff to have the meter reading door by door and over 10 years' data storage in absence of power.





With our broad range of prepaid vending solutions, a utility or service provider can manage CAW series water meter along with STS prepaid electricity meters in one vending system.



Features

a) Multi-platform vending through SMS, POS, online, bank ATM, etc

b) Long battery life and battery is replacable by administrators

c) Can be managed and vended along with prepayment electricity meter

d) Tamper and fraud proof: meter will shut off in tamper mode

e) Low credit alarm: configurable

f) Over 10 years’ data retention in absence of power

g) Dual display of counter register and LCD





 Key benefits

1) Compact, light and easy to install

2) Easy vending

3) Easy tariff setting and tracking record of customer purchases

4) Free basic water, emergency credit, low credit warning, debt collection

5) Can be extended for AMR AMI smart metering applications, meter readouts

6) Free of maintenance





Specifications:







Nominal size



Dn



mm

                in-line

15

20

25

Maximum flow rate

Q4

m3/h

3.125

5.0

7.875

Ratio “R”

    Q3/Q1



80

80

80

Permanent l flow rate

Q33





m3/h

2.5

4.0

6.3

Transitional flow rate

Q22

0.05

0.08

0.126

Minimum flow rate

Q11

0.031

0.05

0.0787

Minimum reading



m3

0.0005

Maximum reading

99999



Maximum Permission Error (MPE)

Q1≦Q≦,Q2    MPE =+ 5%           Q2≦Q≦Q4,    MPE= + 2% (For hot water metering, MPE=+ 3%)



Dimensions and diagram



Nominal size

Length

Width

Height

Thread

mm

D

15

165

101

124

G3/4B

20

195

101

124

G1B

25

225

101

124

G5/4B
