STS Prepayment Water Meter Mozambique Wireless Remote Control Long Battery Life

STS Prepayment Water Meter Mozambique Wireless Remote Control Long Battery Life

  • STS Prepayment Water Meter Mozambique Wireless Remote Control Long Battery Life
  • STS Prepayment Water Meter Mozambique Wireless Remote Control Long Battery Life
STS Prepayment Water Meter Mozambique Wireless Remote Control Long Battery Life
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA568
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Product Name: Wireless Remote Control Long Battery Life STS Prepayment Water Meter Standard: 2004/22/EC(MID), OIML R49
Weight: 1300 G Display: LCD / Counter
Accuracy: Class B Communication: RF/ Lora
High Light:

remote water meter

,

prepayment water meter

Mozambique Wireless Remote Control Long Battery Life STS Prepayment Water Meter

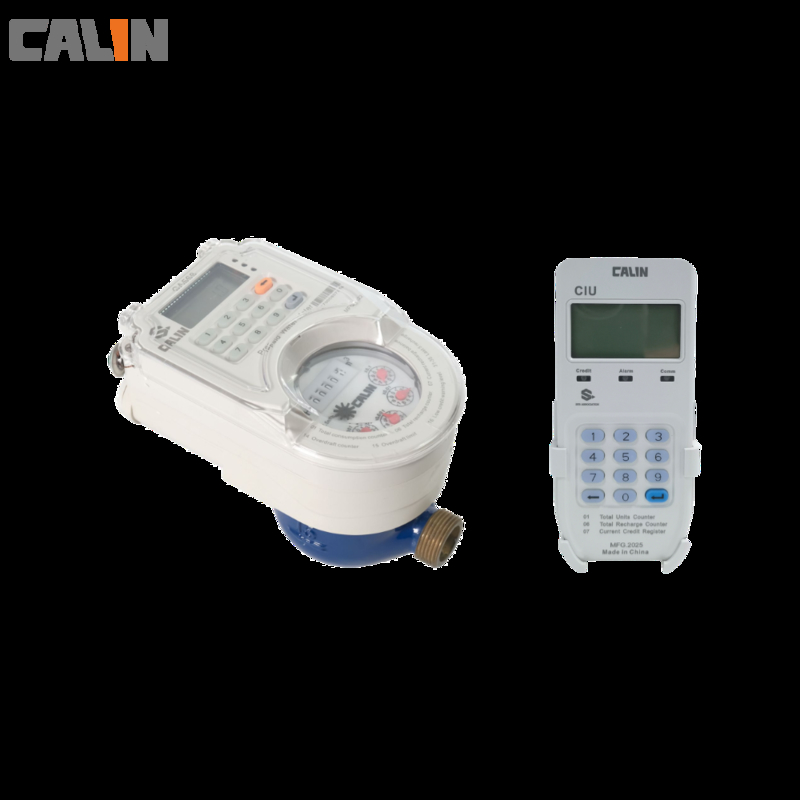

CA568 STS prepayment water meter is  multi-jet wet / Dry type working with hydraulically operated ball valve.  It shuts off when credit is depleted and restores after topup. It is built with two layer strainer and non-return valve, being immune to grid particles and backflow. The potted and coated electronic part is sealed above on the metering chamber, away from the water.



The meter operates with a user interface unit (UIU)  in RF / LORA wireless communication with the meter for up to 300 meters.  Installation becomes easy and wireless with no extra cost. Customer can check the meter's data ,credit and records with UIU in home use.



Calinmeter water meter also supports third party payment system such as mobile money, mobile payment, Pay as you Go, online banking, etc. Customer does not need to visit vending sales point but just send SMS, USSD messages with their mobile phone and the recharge token will be automatically transferred to their phones 24/ 7 anytime.





Features

a) Easy and low cost installation

b) Size selection on request for DN15 up to DN100 as prepaid mode

c)  Prepaid and postpaid mode selection

d)  Up to 5 year battery life and battery is replacable

e)  LCD and Counter register dual display

f)   Strainer and non-return valve inside

g)  ShutTamper and fraud proof, debt collection

h)  Low credit , low battery warning and Automatically close the valve

i)   Prepared for AMR / AMI functions (optional)







 Key benefits



1) Money back fast and immenent cash flow

2) Free of maintenance and reduced operational cost

3) Flexible debt recovery, low credit alarm setting

4) Emergency credit allowed

5) Non-revenue water detectable with AMR /AMI (optional on request)

6) Remote valve control : lock / unlock

7) Reduced waterman and inventory cost





Specifications:







Nominal size



Dn



mm

                in-line

15

20

25

Maximum flow rate

Q4

m3/h

3.125

5.0

7.875

Ratio “R”

    Q3/Q1



80

80

80

Permanent l flow rate

Q33





m3/h

2.5

4.0

6.3

Transitional flow rate

Q22

0.05

0.08

0.126

Minimum flow rate

Q11

0.031

0.05

0.0787

Minimum reading



m3

0.0005

Maximum reading

99999



Maximum Permission Error (MPE)

Q1≦Q≦,Q2    MPE =+ 5%           Q2≦Q≦Q4,    MPE= + 2% (For hot water metering, MPE=+ 3%)



Dimensions and diagram



Nominal size

Length

Width

Height

Thread

mm

D

15

165

101

124

G3/4B

20

195

101

124

G1B

25

225

101

124

G5/4B
