the only legal owner of CALIN brand and the sole manufacturer of Calin series utility meters.
Calinmeter reserve the right to pursue any legal remedies from Anyone or entity who claims as the group or affiliation of Calin or distributes Calin meter products without proper authorizations.
 |
| Place of Origin: | China |
| Brand Name: | Calin |
| Certification: | CE/SABS/IEC |
| Model Number: | CA268-L |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 30 days |
| Payment Terms: | western Union,Paypal, T/T, L/C |
| Supply Ability: | 100,000pcs per month |
| Product Name: | LCD Type Two Phase Three Wire Electric Meter | Material: | Flame Retardant Poly-carbonate |
|---|---|---|---|
| Dimensions: | 155x115x57mm | Weight: | 600 G |
| Constant: | 800 Imp/kWh | Accuracy: | Class 1s IEC62053-21 |
| Terminal Cover: | Short Cover | Com Port: | IR Available On Request |
| High Light: | private electric meter,electric house meter |
||

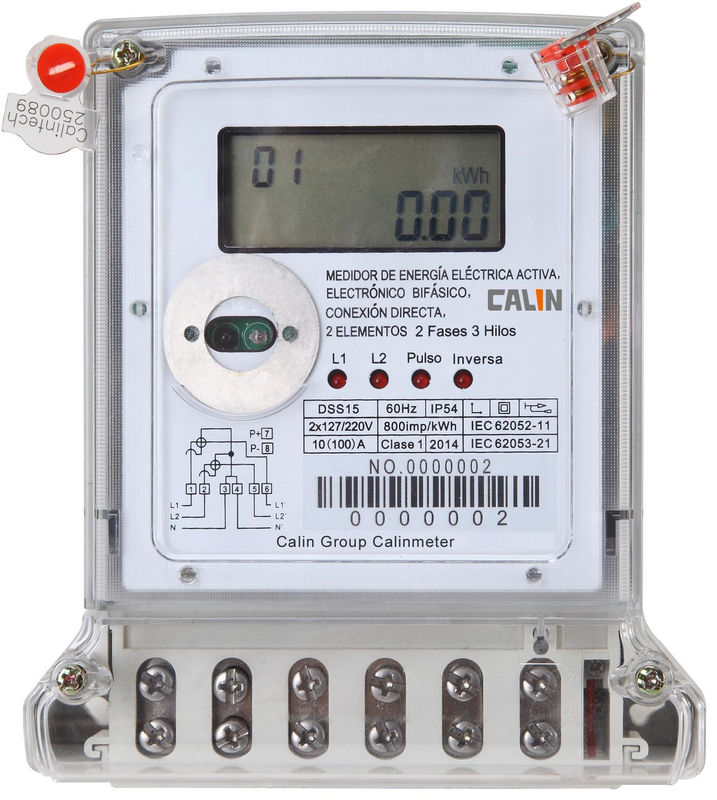

Commercial 2 Phase Electric Meter 3 Wire Electricity Prepaid Meter
The CA268-L is a cost-effective integration of high precision metrology and state-of-art communication technologies. It is a Two-phase Three-wire Electronic Energy Meter to measure two-phase three-wire AC active energy. It is completed in a compact BS footprint mounting closure and is compliant with the technical requirements of three phase energy meter class 1 under standards of IEC62053-21. The meter supports a surge protection for lightening up to 13 kV. This meter type has got proven installations in South American continent.
The CA268-L is reseved for extended smart metering features such as automated meter readout, remote disconnection and reconnection, load balance management, online tariff modification, and etc. To realize such features, communication functions such as PLC, RF, RS485 can be ordered with, allowing the meter to connect with a head-end server (HES) system. It offers a utility and service provider added value of becoming a dispensable component of smart metering solutions.
FUNCTIONS AND FEATURES:
1) Can be ordered with IR optical port , PLC, RF, RS485 communication facilities
2) Light and fire resistant material
3) Surge safe for lightening and line surges
4) Real time power and total energy consumption display
5) Display forward and reverse energy
6) Self-diagnostic function
7) Compliant with IEC662053-21 IEC 62052-11 standard
8) Wiring in Symmetrical connection
User Benefit
a) Easy and quick to install
b) Compact and need of little space resulting in low operational cost
c) Operatable in very harsh environments
d) Ideal for retrofitting installations
e) Reduced maintenance cost
f) Long life design
Specifications:
|
Electrical parameters |
|
|---|---|
|
Voltage |
|
|
Nominal voltage Un |
3x120V |
|
Extended operating voltage range |
80%~115%Un |
|
Limited voltage |
70%~120%Un |
|
Frequency |
|
|
Nominal frequency fn |
60Hz |
|
tolerance |
5% |
|
Current |
|
|
Basic current(Ib) |
10A |
|
Maximum current(Imax) |
100A |
|
Starting current(Ist) |
40mA |
|
Active energy constant |
800imp/kWh |
|
Measurement Accuracy |
|
|
Active energy to IEC62053‐21 |
Class1.0 |
|
Reactive energy to IEC62053‐23 |
Class2.0 |
|
Power Consumption |
|
|
Power consumption in Voltage circuit |
<2W <8VA |
|
Power consumption in current circuit |
<1VA |
|
Temperature range |
|
|
Operation meter |
25℃ to+70℃ |
|
Storage |
40℃ to+85℃ |
|
|
|
|
Insulation strength |
|
|
AC Insulation strength |
4kV at 50Hz during 1min |
|
Impulse voltage 1.2/50μs mains connections |
8kV |
|
|
|
|
Electro Magnetic Compatibility |
|
|
Electrostatic discharges |
|
|
Contact discharge |
8kV |
|
Air discharge |
16kV |
|
Electromagnetic RF fields |
|
|
27MHz to 500MHz typical |
10V/m |
|
100kHz to 1GHz typical |
30V/m |
|
Fast transient burst test |
4kV |
|
|
|
|
Mechanical requirements |
|
|
Meter shell Protection Rate |
IP54 |
|
Protection |
classII |
