BS Connection 2 Phase Electric Meter Compact Electric Power Meter

Product Details

Place of Origin: China

Brand Name: Calin

Certification: CE/SABS/IEC

Model Number: CA268-L

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotiation

Packaging Details: Carton

Delivery Time: 30 days

Payment Terms: western Union,Paypal, T/T, L/C

Supply Ability: 100,000pcs per month

Get Best Price
Highlight:

private electric meter

,

electric house meter

Product Name:
LCD Type Two Phase Three Wire Meter
Terminal Cover:
Short Cover
Dimensions:
155x115x57mm
Weight:
600 G
Constant:
800 Imp/kWh
Accuracy:
Class 1s IEC62053-21
Technique:
Ultrasonic Welded
Com Port:
IR Optical
Product Name:
LCD Type Two Phase Three Wire Meter
Terminal Cover:
Short Cover
Dimensions:
155x115x57mm
Weight:
600 G
Constant:
800 Imp/kWh
Accuracy:
Class 1s IEC62053-21
Technique:
Ultrasonic Welded
Com Port:
IR Optical
BS Connection 2 Phase Electric Meter Compact Electric Power Meter

BS Connection 2 Phase Electric Meter Compact Electric Power Meter

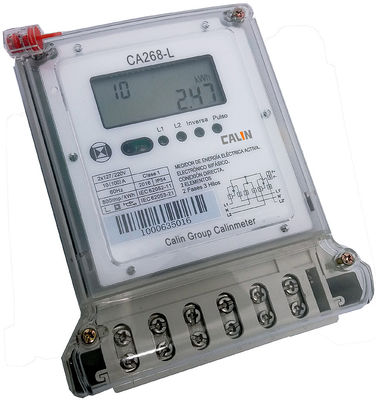

The CA268-L is a two phase three wire electric energy meter finished in a compact BS footprint mounting case with 30Vm withstand of rugged RF immunity and a dynamic range of current 5(100)A, able to work in extremely harsh environments. The meter is used for light commercial and industrial 60 Hz grid supply areas. It is avaialbe with measurement of reactive energy and load profile record at preset intervals. It is produced by ISO9001 standards and IEC62053-21 IEC62052-11, and has been well proven in South American area, therefore is an ideal cost-effective metering solution for service providers.



FUNCTIONS AND FEATURES:

a) Avaialbe with communication facilities such as RS485, PLC, RF, etc

b) Flame retardant material

c) Surge protection against line surges up to 13 kV

d) Real time power and accumulative usage record

e) Multi-rate and holiday settings

f) Self-diagnostic

g) Wiring as British Standards connections



User Benefit

1) Quick installation and easy maintenance

2) Compact and light, space-saving

3) Designed for harsh environments

4) Sound electrical as well as metrological stability

5) Customization available on request

6) Long life design and low inventory cost



Specifications:



Electrical parameters

Voltage

Nominal voltage Un

3x120V

Extended operating voltage range

80%~115%Un

Limited voltage

70%~120%Un

Frequency



Nominal frequency fn

60Hz

tolerance

5%

Current



Basic current(Ib)

10A

Maximum current(Imax)

100A

Starting current(Ist)

40mA

Active energy constant

800imp/kWh

Measurement Accuracy



Active energy to IEC62053‐21

Class1.0

Reactive energy to IEC62053‐23

Class2.0

Power Consumption



Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Temperature range



Operation meter

25℃ to+70℃

Storage

40℃ to+85℃



Insulation strength

AC Insulation strength

4kV at 50Hz during 1min

Impulse voltage 1.2/50μs mains connections

8kV





Electro Magnetic Compatibility

Electrostatic discharges



Contact discharge

8kV

Air discharge

16kV

Electromagnetic RF fields



27MHz to 500MHz typical

10V/m

100kHz to 1GHz typical

30V/m

Fast transient burst test

4kV





Mechanical requirements



Meter shell Protection Rate

IP54

Protection

classII
