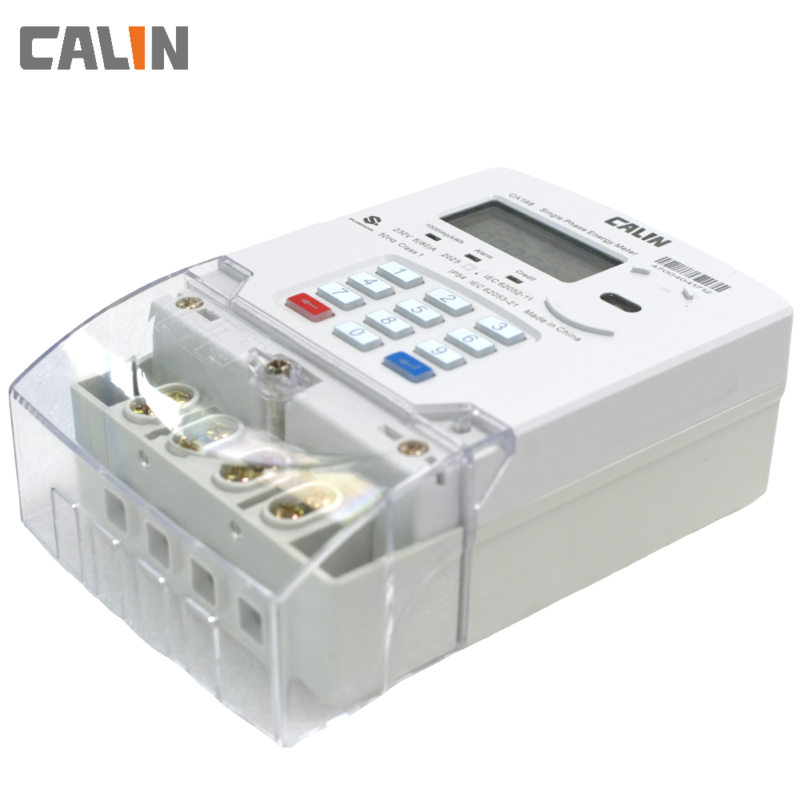

Single Phase STS Prepaid Electricity Meter BS footprint Extended terminal cover steady broad voltage range

Single Phase STS Prepaid Electricity Meter BS footprint Extended terminal cover steady broad voltage range

    • Single Phase STS Prepaid Electricity Meter BS footprint Extended terminal cover steady broad voltage range
  • Single Phase STS Prepaid Electricity Meter BS footprint Extended terminal cover steady broad voltage range

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: DDSY168

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: 1 Ph Keypad Prepaid Meter Standard: SANS1524-1 , IEC62056-21
    Dimensions: 155x120x52mm Weight: 700 G
    Display: LCD Accuracy: Class 1s
    Cover Type: Flush Straight Cable Size: 8mm
    High Light:

    prepayment electric meters

    ,

    prepay electric meters

    Single Phase STS Prepaid Electricity Meter BS footprint Extended terminal cover steady broad voltage range





    As the fundamental meter type of prepaid meter, the DDSY168 is designed and finished with a BS8565 standard housing and customer interface keypad. It operates with the current from 5 to 80Amp maximum.It is built with the rugged RF immunity withstand of 30V/m and IP54 rating, and therefore is able to operate in harsh environments. The meter is can be utilised as a credit meter as well as a prepayment meter to be vended with STS(Standard Transfer Specification) standard. The consumer can punch in the credit token number via the meter keypad to get  recharge.



    Main Features

    1) SRE- significant reverse energy detection and measurement

    2) IR optical port compliant with IEC62056-21

    3) Operate in both prepayment and post payment mode

    4) Disconnects on overload and credit exhausts

    5) Adjustable power limit and low credit warning level

    6)Anti-tamper detection such as opening cover, reverse connection, black-out and etc.



     Key benefits

    a) Broad range operation: -50% ~+130% working voltage

    b) Lightening resistant up to 6kV

    c) IP54 rating protection class II

    d) Easy connection to User Interface Unit (UIU) for split type applications

    e) 15 year designed life





    Specifications:

    Nominal voltage Un

    220/230/240 V

    Limited voltage

    70%~120%Un

    Nominal frequency fn

    50-60Hz+5%

    Basic current(Ib)

    5-10A

    Maximum current(Imax)

    60-100A

    Starting current(Ist)

    20mA

    Active energy constant

    1000imp/kWh

    Accuracy as Active energy to IEC62053‐21

    Class1.0

    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Operating temperature

    25℃ to+70℃

    Storage temperature

    40℃ to+85℃

    Insulation level

    4kV rms for 1min

    Impulse voltage withstand

    8kV, 1.2/50 μs

    Air discharge

    16kV

    Immunity to HF fields



    80MHz to 2GHz with load

    10V/m

    100kHz to 1GHz without load

    30V/m

    Fast transient burst test

    4kV

    Meter shell Protection Rate

    IP54(IEC60529)

    Insulation System Classification

     Protective Class II

    Single Phase STS Prepaid Electricity Meter BS footprint Extended terminal cover steady broad voltage range 0
