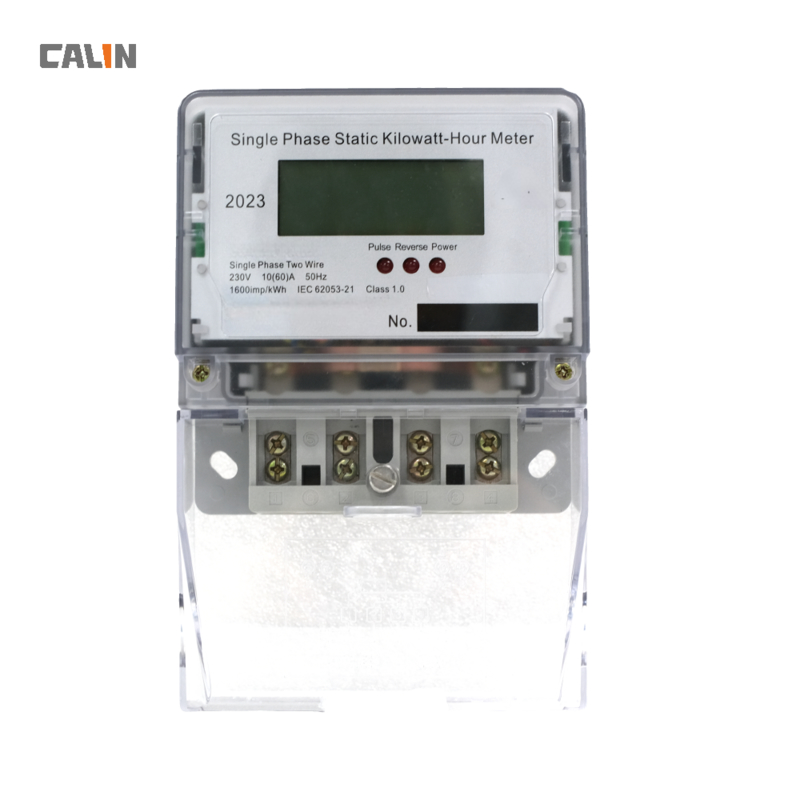

Compact Mini Single Phase Electric Meter Extended Terminal Cover Killowatt Meter

Compact Mini Single Phase Electric Meter Extended Terminal Cover Killowatt Meter

    • Compact Mini Single Phase Electric Meter Extended Terminal Cover Killowatt Meter
    • Compact Mini Single Phase Electric Meter Extended Terminal Cover Killowatt Meter
  • Compact Mini Single Phase Electric Meter Extended Terminal Cover Killowatt Meter

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: DDS168

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 100,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Single Phase Two Wire Electronic Active Watt Hour Meter Material: Transparent ABS Or Poly-carbonate
    Dimensions: 135x90x33mm Weight: 250 G
    Constant: 1600 Imp/kWh Accuracy: Class 1s IEC62053-21
    Terminal Cover: Extended Long Transparent Cover Display: Mechanical Register
    High Light:

    single phase power meter

    ,

    single phase electronic meter

    Compact Mini Single Phase Electric Meter Extended Terminal Cover Killowatt Meter



    The meter is used to measure 50Hz or 60Hz active energy consumption from single phase two wire AC electricity network. It adopts LSI (Large-scale Integration) and SMTmanufacturing technique,the key components all are designed long life type.
    The meter has the features of good reliability, small volume, light weight, specious appearance, etc..
    The DDS168 is ideal for an economy class of metering application for small homes, offices, and stores.



    FUNCTIONS AND FEATURES:



    1) Front board three fixed installation, ABS or transparent ABS or PC material cover

    2) Anti-flaming material and bakelite terminal, moisture-resistant,fire-retardant,high temperature molded

    3) 6+1digits register display

    4) Standard configuration one port of pulse output passive (polarity),complying with standard IEC62053-21

    5) Compliant with standard IEC62053-21,IEC62052-11

    6) Adopts high reliable and long-life electric components,hioverload, calibration free

    7) Direct connect operation,there are two types wiring you may select.

    8) Quick and easy to install due to short terminal cover





    Specifications:





    Accuracy class

    Class 1.0,

    Rated voltage(V)

    110/210V  or 120/220V

    Rated current(A)

     5-100A

    Operation voltage range

    Un±20%

    Starting current

    0.4%Ib

    Rated frequency

    60Hz

    Internal power consumption

    Voltage circuit ≤1.0W 5VA; Current circuit ≤1VA(Ib)

    Max.operation temperature

    -30°C ~ +70°C

    Max.storage temperature

    -30°C ~ +75°C

    Relative Humidity

    ≤85%

    Service life

    More than 10 years
