Split Type Residential Prepaid Water Meters Rf Communication Electronic Latched Valve

Split Type Residential Prepaid Water Meters Rf Communication Electronic Latched Valve

    • Split Type Residential Prepaid Water Meters Rf Communication Electronic Latched Valve
    • Split Type Residential Prepaid Water Meters Rf Communication Electronic Latched Valve
  • Split Type Residential Prepaid Water Meters Rf Communication Electronic Latched Valve

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CAW-S

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 10,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: STS Split Type Prepaid Water Meter Standard: STS, 2004/22/EC(MID), OIML R49
    Weight: 1300 G Display: LCD / Counter
    Accuracy: Class B Communication: Radio Frequency

    Split Type Residential Prepaid Water Meters Rf Communication Electronic Latched Valve



    The CAW-R series is an upgraded type on the basis of CAW-C. It operates with STS (Standard Transfer Specification) standard and Radio wireless communications. The meter works with a low power bistable latched valve driven by battery and able to open and shut for 4 million times during battery lifespan.  With CAW-C series you are assured of continuously good metrology and revenue protection at the same time.The electronic part of the meter is potted and sealed above on the metering chamber, away from the water, which makes the meter highly reliable.

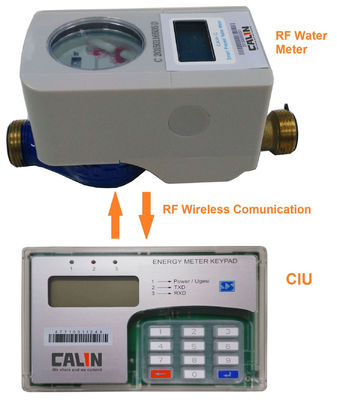

    The meter works with a customer interface unit(CIU) through RF wireless communication. The CIU is installed within customer’s home when the meter is installed in a meter cabinet away from the customer. The STS decryption takes place with the meter and the CIU provides a convenient interface to the customer. Information like token acceptance and rejection, credit status, historical usage data can be displayed with the LCD of the CIU.This split design makes the meter immune to any tamper and fraud on CIU side.



    To top-up or recharge the water meter, a consumer just need to purchase 20 digits'  credit token from the vendor and punch in the code with the CIU. With our broad range of prepaid vending solutions, a utility or service provider can manage CAW series water meter along with STS prepaid electricity meters in one vending system.









    Features

    1) Qn 1.5 Class B more than sufficient for normal household daily use

    2) Can be ordered with DN15, 20 and 25

    3) Contact-less read / write RFID Transponder technology

    4) Split type operation with a in home CIU

    5) Counter register and large charactLCD display

    6) Potted electronics making meter water resistant in humid and tropical environments

    7) Tamper and fraud proof

    8) Low credit warning

    9) Over 10 years’ data retention in absence of power

    10) Prepared for AMR functions with RF, MODBUS, and RS485 (optional)



     Key benefits

    a) Quick and easy installation, ideal for both new reticulation and retrofittings

    b) Multi-rate and usage record on Time of Use (TOU) basis

    c) Potted electronic part water resistant adpating to humid and tropical environments

    d) Vending software allows setting for free basic water, emergency credit, low credit warning,

    e) Supports drive by reading and fully automated reading for AMI smart metering applications

    f) Remote reading and valve control on / off

    g) Reduced operational and inventory cost





    Specifications:







    Nominal size



    Dn



    mm

                    in-line

    15

    20

    25

    Maximum flow rate

    Q4

    m3/h

    3.125

    5.0

    7.875

    Ratio “R”

        Q3/Q1



    80

    80

    80

    Permanent l flow rate

    Q33





    m3/h

    2.5

    4.0

    6.3

    Transitional flow rate

    Q22

    0.05

    0.08

    0.126

    Minimum flow rate

    Q11

    0.031

    0.05

    0.0787

    Minimum reading



    m3

    0.0005

    Maximum reading

    99999



    Maximum Permission Error (MPE)

    Q1≦Q≦,Q2    MPE =+ 5%           Q2≦Q≦Q4,    MPE= + 2% (For hot water metering, MPE=+ 3%)



    Dimensions and diagram



    Nominal size

    Length

    Width

    Height

    Thread

    mm

    D

    15

    165

    101

    124

    G3/4B

    20

    195

    101

    124

    G1B

    25

    225

    101

    124

    G5/4B
