Multi Tariff Single Phase Kwh Meter Microgrid System Minigrid Offgrid Class 1 Accuracy

Multi Tariff Single Phase Kwh Meter Microgrid System Minigrid Offgrid Class 1 Accuracy

  • Multi Tariff Single Phase Kwh Meter Microgrid System Minigrid Offgrid Class 1 Accuracy
  • Multi Tariff Single Phase Kwh Meter Microgrid System Minigrid Offgrid Class 1 Accuracy
Multi Tariff Single Phase Kwh Meter Microgrid System Minigrid Offgrid Class 1 Accuracy
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: Time Of Use (TOU) Multi-tariff Single Phase STS Prepaid Electricity Meter Split Keypad: Optional
Dimensions: 155x120x52mm Weight: 700 G
Type: Prepaid Electricity Meter Accuracy: Class 1
Mounting: BS5685 Footprint Communication: PLC / RF
High Light:

electricity vending system

,

smart micro grid

Mini Grid Multi Tariff Single Phase Kwh Meter minigrid offgrid rural Prepaid Electricity Meter Class 1 Accuracy

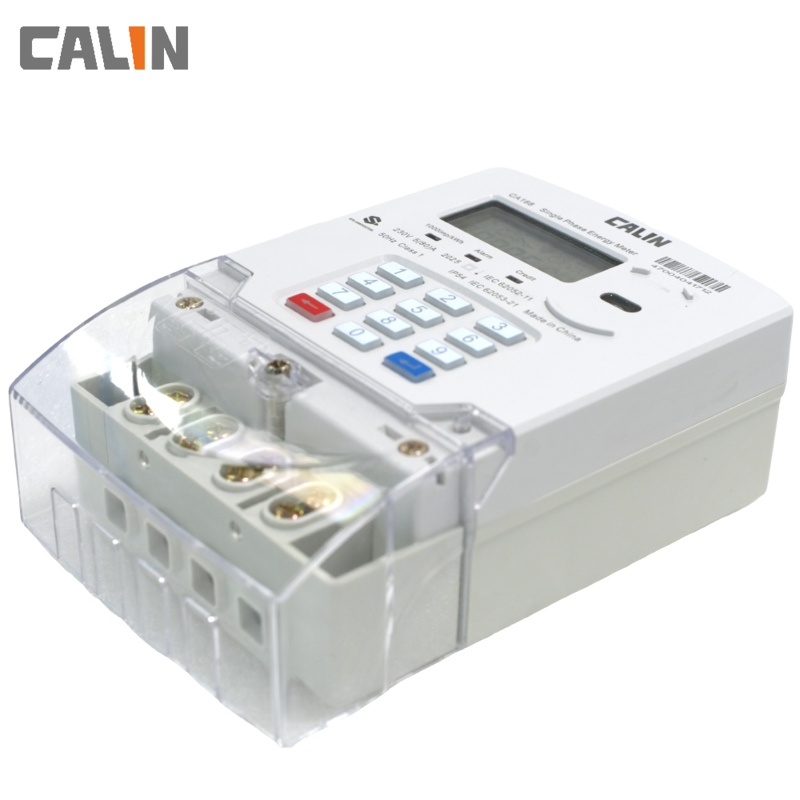

The CA168 is used for a wide range of applications, due to an improved dynamic range allowing a basic current of 5 Amp while retaining a maximum current of 80 Amp and extended functional features. It is a compact and keypad-based design in a BS8565 standard housing and maintains the rugged RF immunity withstand of 30V/m and IP54 rating, allowing it to be installed in harsh environments.

.





Major Features

  1. Load control, over-load switching automatically
  2. Programmable under and over voltage trip
  3. Significant reverse energy measurement SRE
  4. Enhanced tamper detection
  5. Multi-Level alarm value enable setup
  6. Preset delayed reconnection
  7. IP 54 rating



 Utility benefits

  1. PLC/ RF / GPRS communication for AMR AMI features (On request)
  2. Time of Use (TOU) , multi-rate, holiday setting
  3. Easy and quick to install with exisiting wires
  4. 15 year designed life
  5. Enhanced revenue protection through flexible payment control





Specifications:



Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields



80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

 Protective Class II



Multi Tariff Single Phase Kwh Meter Microgrid System Minigrid Offgrid Class 1 Accuracy 0Multi Tariff Single Phase Kwh Meter Microgrid System Minigrid Offgrid Class 1 Accuracy 1Multi Tariff Single Phase Kwh Meter Microgrid System Minigrid Offgrid Class 1 Accuracy 2Multi Tariff Single Phase Kwh Meter Microgrid System Minigrid Offgrid Class 1 Accuracy 3Multi Tariff Single Phase Kwh Meter Microgrid System Minigrid Offgrid Class 1 Accuracy 4Multi Tariff Single Phase Kwh Meter Microgrid System Minigrid Offgrid Class 1 Accuracy 5
