STS Smart Micro Grid System Single Phase Din Rail Mounted Kwh Meter

STS Smart Micro Grid System Single Phase Din Rail Mounted Kwh Meter

STS Smart Micro Grid System Single Phase Din Rail Mounted Kwh Meter
STS Smart Micro Grid System Single Phase Din Rail Mounted Kwh Meter
STS Smart Micro Grid System Single Phase Din Rail Mounted Kwh Meter
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168-S
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: Mini Grid STS Single Phase Din Rail Mounted Kwh Meter Mounting: 35mm Din Rail
Dimensions: 155x120x52mm Weight: 800 G
Constant: 1000 Imp/kWh Accuracy: Class 1
Standard: IEC/SABS Connection Type: Two Wire/ PLC/ RF
Recharge: 20 Digits Token Code
High Light:

STS Smart Micro Grid System

,

SABS Smart Micro Grid System

,

Din Rail Mounted Kwh Meter

STS Smart Micro Grid System Single Phase Din Rail Mounted Kwh Meter



Din Rail Mounted Kwh Meter with Customer Interface Unit for Solar PV Plant

With extremely rapid growth of solar PV plants in Africa and South Asia, more and more remote area get electricity power. Those solar PV plants be called mini-grid, micro grid or off grid, effectively provide necessary electricity for daily usage, lighting, phone charge, radio and TV. In order to ensure that the provider of solar PV generation, it is necessary to meansure the power consumption so that the provide have enough profit to operate the plants, develop more plants, furthermore promote the prosperity of the whole Mini-Grid industry.

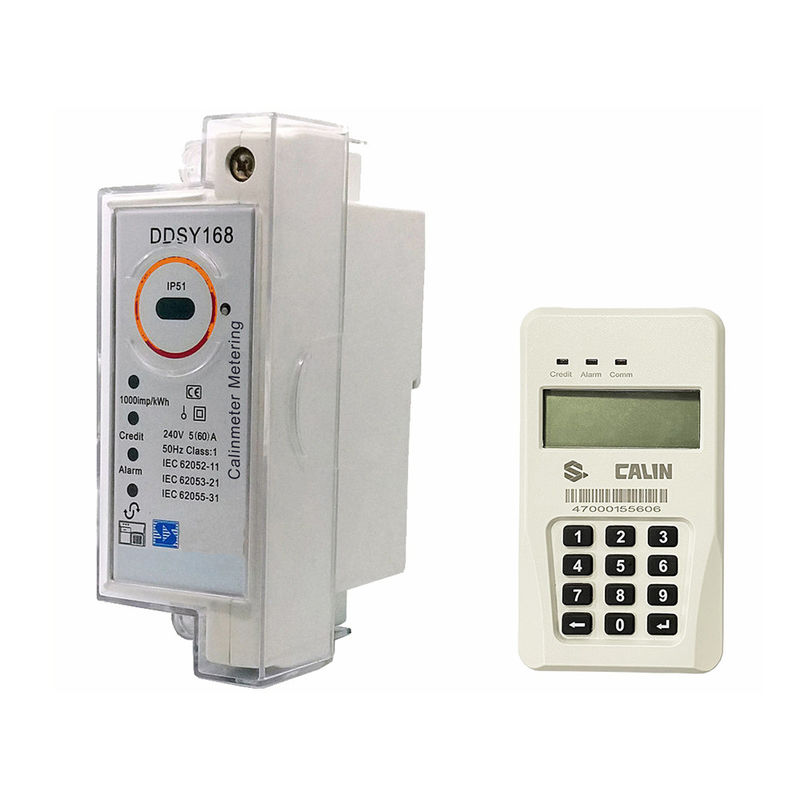

The CA168-S is designed for accurate measurement and prepayment function. The project will have faster return of fund because of the prepayment function. As the DIN RAIL type, MCU(Main Control Unit) and CIU (Customer Interface Unit) design, The MCU (Main Control Unit) can be installed in a locked box or high electric pole, and only give the CIU to the users. The user can recharge for his meter, and query balance, recharge record and amount, etc by CIU. Also it is the most effective action for anti tamper.







Major Features



  1. Compliance with the STS (Standard Transfer Specification) payment protocol

  2. Up to 80A current with Class 1 accuracy

  3. Automatically disconnect for overload or  no credit

  4. Programmable power limit and low credit warning

  5. Adjustable power limitation

  6. Enhanced tamper detection for magnetic field, reverse connection, cover open, etc.

  7. Reverse energy measurement SRE

  8.  Information toggled by codes

  9.  Tamper trip protection : neutral missing



 Other Benefits

a) Compact and slim-line design

b) PLC/ RF communication for MCU & UIU and same with back end AMI server (On request)

c) Time of Use (TOU) , multi-rate, tariff control, holiday setting

d) 15 year designed life

e) Enhanced revenue protection through flexible payment control





Specifications:

Nominal voltage Un

220/230/240 vol

Storage temperature

40℃ to+85℃

Limited voltage

70%~120%Un

Insulation level

4kV rms for 1min

Nominal frequency fn

50-60Hz+5%

Impulse voltage withstand

8kV, 1.2/50 μs

Basic current(Ib)

5A-10A

Air discharge

16kV

Maximum current(Imax)

60A-100A

Immunity to HF fields



Starting current(Ist)

20mA

80MHz to 2GHz with load

10V/m

Active energy constant

1000imp/kWh

100kHz to 1GHz without load

30V/m

Accuracy as Active energy to IEC62053‐21

Class1.0

Fast transient burst test

4kV

Power consumption in Voltage circuit

<2W <8VA

Meter shell Protection Rate

IP54(IEC60529)

Power consumption in current circuit

<1VA

Insulation System Classification

Protective Class II

Operating temperature

25℃ to+70℃



STS Smart Micro Grid System Single Phase Din Rail Mounted Kwh Meter 0

STS Smart Micro Grid System Single Phase Din Rail Mounted Kwh Meter 1
