RF Communication Remotely Reading Prepaid Energy Meter For Micro Grid Solar Project
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: RF Communication Remotely Reading Prepaid Energy Meter For Micro Grid Solar Project Split Keypad: Optional
Dimensions: 155x120x52mm Weight: 700 G
Type: Prepaid Electricity Meter Accuracy: Class 1
Mounting: BS5685 Footprint Communication: PLC / RF
High Light:

smart micro grid

,

mini grid electricity

RF Communication Remotely Reading Prepaid Energy Meter

for Micro Grid Solar Project

Revenue collection and monitor are two keys that each one of mini-grid or micro-grid developers want. Card type prepayment meter and PLC communication are frequently used solutions. However none of them fit into Mini-grid scenario.  Card type meters usually operate with its manufacturer's proprietary prepayment standard, therefore will not integrate with any other solution. Besides card meters need card contact for any top-up or data exchange, which in reality, gives a lot of trouble such as limit of POS business hours, card loss, card damage.   PLC may work in main grid. But mini-grid's unstable power flow vastly interferes PLC communication, which leads to connection loss.



The CA168-s is desinged for this kind of mini grid project, be suitable for 5A, 16A small current in the solar plant, and build in the 433 Mhz RF communication for communication between CIU and meter, furthermore, the built-in RF module lead to the possibility of monitoring remotely, the provider can reading remotely, control the meter remotely, get daily report, monthly report.

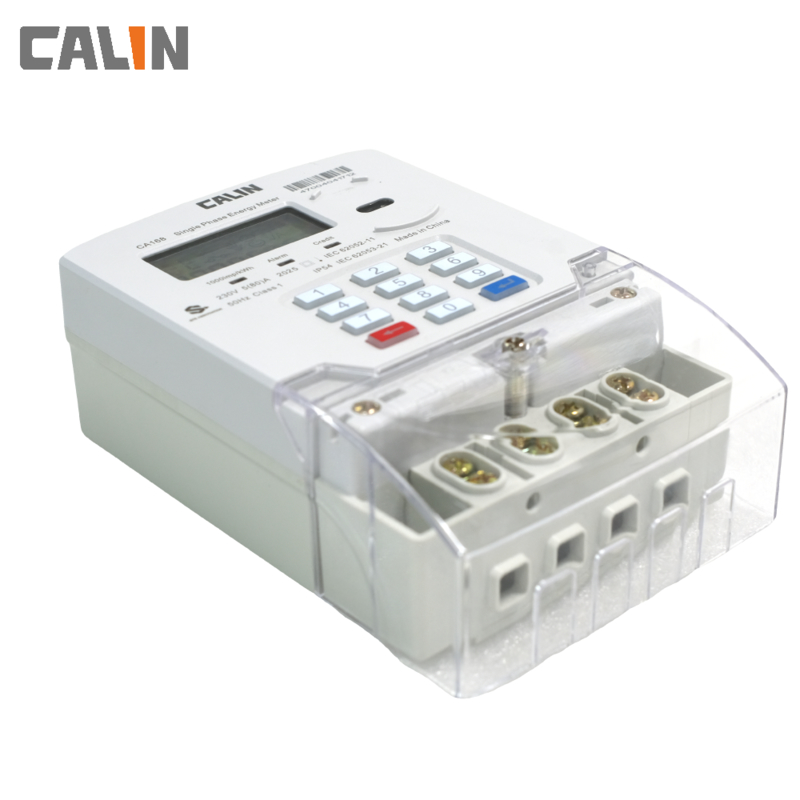

RF Communication Remotely Reading Prepaid Energy Meter For Micro Grid Solar Project 0





Major Features

  1. Load control, over-load switching automatically
  2. Programmable under and over voltage trip
  3. Significant reverse energy measurement SRE
  4. Enhanced tamper detection
  5. Multi-Level alarm value enable setup
  6. Preset delayed reconnection
  7. IP 54 rating



 Utility benefits

  1. PLC/ RF / GPRS communication for AMR AMI features (On request)
  2. Time of Use (TOU) , multi-rate, holiday setting
  3. Easy and quick to install with exisiting wires
  4. 15 year designed life
  5. Enhanced revenue protection through flexible payment control





Specifications:



Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields



80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

 Protective Class II



RF Communication Remotely Reading Prepaid Energy Meter For Micro Grid Solar Project 1RF Communication Remotely Reading Prepaid Energy Meter For Micro Grid Solar Project 2RF Communication Remotely Reading Prepaid Energy Meter For Micro Grid Solar Project 3RF Communication Remotely Reading Prepaid Energy Meter For Micro Grid Solar Project 4RF Communication Remotely Reading Prepaid Energy Meter For Micro Grid Solar Project 5RF Communication Remotely Reading Prepaid Energy Meter For Micro Grid Solar Project 6
