Split Keypad 1000imp/KWh Off Grid Keypad Prepaid Meter

Split Keypad 1000imp/KWh Off Grid Keypad Prepaid Meter

  • Split Keypad 1000imp/KWh Off Grid Keypad Prepaid Meter

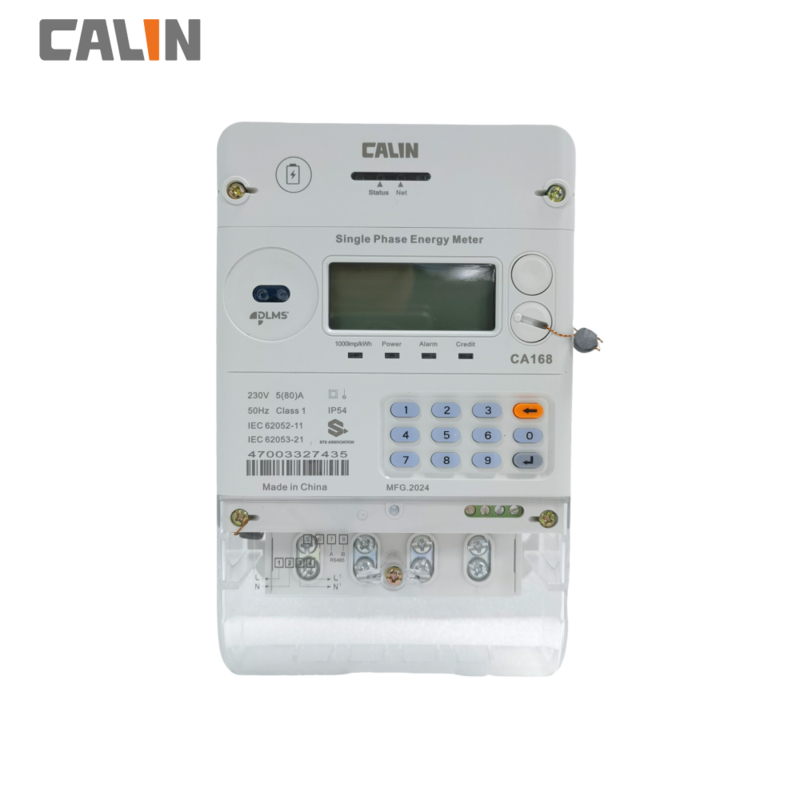

Split Keypad 1000imp/KWh Off Grid Keypad Prepaid Meter
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: Off-grid Smart Prepaid Prepayment Meter Latch Relay: Build-in
Dimensions: 155x120x52mm Weight: 700 G
Consumption Rate: 1000imp/kWh Accuracy: Class 1
Data Port: Infrared Optical Split Keypad: Optional
Communication: RF
High Light:

Off Grid Keypad Prepaid Meter

,

1000imp/KWh Keypad Prepaid Meter

,

Split Keypad Prepaid Prepayment Meter

off-grid smart prepaid prepayment meter

Photovoltaic (PV) power generation is growing fastly in the South Asia and Africa, As mini grid to effectively provide electricity for the remote area which the utility grid cannot cover. The CA168 is special designed for PV solar generation mini grid to measurement the power consumption, it can support 5A, 16A, 40A, 60 A current, 230V Nominal voltage, Class 1 accuracy class make sure the good measurement. We have built in a RF module in the meter so that the monitoring and management system can be developed, the meter send the data to the data concentrator by RF, and then the data concentrator upload the data by GPRS. The repeater can extend the communication range for data concentrator.





Major Features

  1. 20 digit (Standard Transfer Specification) STS encryption
  2. Detection of significant reverse energy (SRE)
  3. IEC62056-21 compliant port allowing for easy data interrogation
  4. Disconnects on overload and no credit
  5. Dual power source working on both prepaid and credit mode
  6. Programmable load limit and low credit warning
  7. Detection and record tamper event such as cover open, reversal, black-out, etc.
  8. Easy access to 12 months historical consumption data and last 5 token entered



 Utility benefit

  1. Easy connection to User Interface Unit (UIU) for split type applications
  2. RF / GPRS wireless communication with a head-end AMR/AMI server
  3. Time of Use (TOU), multi-tariff, holiday setting.
  4. Advanced load control and disconnection features





Specifications:



Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields



80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

 Protective Class II



 Split Keypad 1000imp/KWh Off Grid Keypad Prepaid Meter 0Split Keypad 1000imp/KWh Off Grid Keypad Prepaid Meter 1Split Keypad 1000imp/KWh Off Grid Keypad Prepaid Meter 2





Split Keypad 1000imp/KWh Off Grid Keypad Prepaid Meter 3
