Prepaid Water Meters Multi-jet Dry Dail LCD Display Long Battery Life Shut off when credit finishes

Prepaid Water Meters Multi-jet Dry Dail LCD Display Long Battery Life Shut off when credit finishes

    • Prepaid Water Meters Multi-jet Dry Dail LCD Display Long Battery Life Shut off when credit finishes
    • Prepaid Water Meters Multi-jet Dry Dail LCD Display Long Battery Life Shut off when credit finishes
    • Prepaid Water Meters Multi-jet Dry Dail LCD Display Long Battery Life Shut off when credit finishes
  • Prepaid Water Meters Multi-jet Dry Dail LCD Display Long Battery Life Shut off when credit finishes

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA568-G

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 10,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Muti Jet Water Prepaid Meters LCD Display Water Meter Standard: 2004/22/EC(MID), OIML R49
    Weight: 1300 G Display: LCD / Counter
    Accuracy: Class B Communication: RF
    High Light:

    remote water meter

    ,

    electronic water meter

    Prepaid Water Meters Multi-jet Dry Dail LCD Display Long Battery Life Shut off when credit finishes

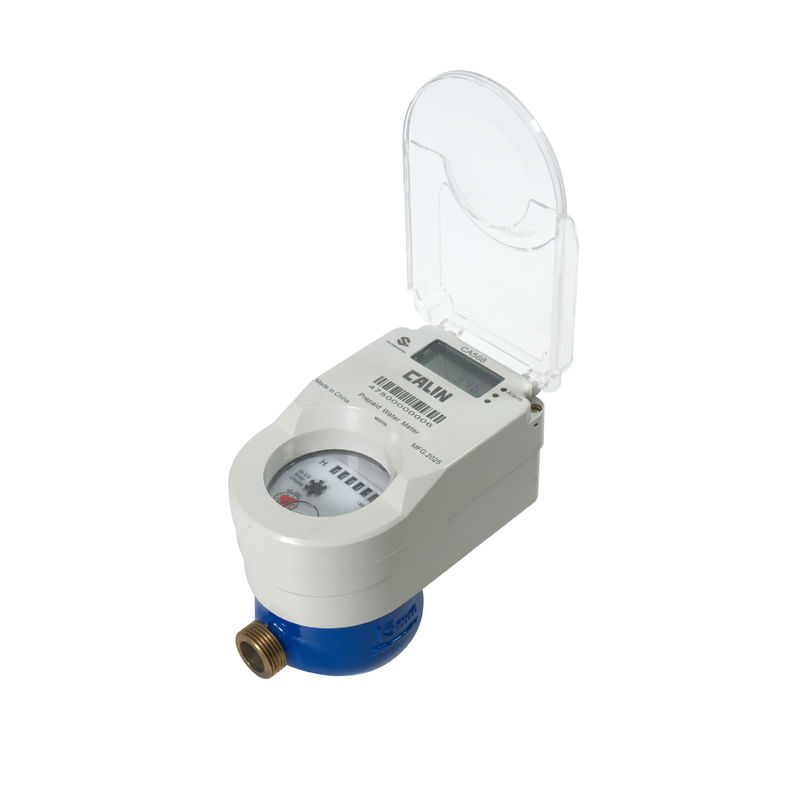

    The CA568-S  is the model number of Calin  multi-jet  prepaid water meter.  It is STS prepayment standard compliant and certified. The meter works with a motor driven valve which turns off when credit finishes or any tamper is detected.  Calin prepaid water meter sustains well in grit particle, not clean water environment with steady metrology accuracy and durable life span in severe working scenarios. The meter operates with a keypad CIU in radio link with the meter. This split setup is designed to prevent tamper and theft by installing meters out of customers' reach but the customer can check their usage, balance on the CIU mounted in their house.



    The meter is recharged with 20 digits token code which can be generated wirelessly with mobile money or any third party payment vending gateways. This means customer can buy top-up at any time with no limit of business hours which brings immenent cash flow for service providers.









    Features

    a) Size varies by  DN15, 20 and 25 or above

    b) STS compliant and operates with token codes

    c) Tamper prevention design

    d)  Up to 300 meters wireless connection with the CIU keypad

    e)  Auto shut off when credit finishes

    f)  Long battery life up to 3 years

    g) Battery can be replaced



     Key benefits



    1) Quick and easy installation,  for both new reticulation and retrofittings

    2) Flexible payment purchase for recharge topups

    3) Tamper prevention

    4) Vending software is flexible for settings

    5) Supports drive-by reading and fully automated reading for AMI smart metering applications

    6) Remote reading and valve control on / off

    7) Reduced operational and inventory cost





    Specifications:







    Nominal size



    Dn



    mm

                    in-line

    15

    20

    25

    Maximum flow rate

    Q4

    m3/h

    3.125

    5.0

    7.875

    Ratio “R”

        Q3/Q1



    80

    80

    80

    Permanent l flow rate

    Q33





    m3/h

    2.5

    4.0

    6.3

    Transitional flow rate

    Q22

    0.05

    0.08

    0.126

    Minimum flow rate

    Q11

    0.031

    0.05

    0.0787

    Minimum reading



    m3

    0.0005

    Maximum reading

    99999



    Maximum Permission Error (MPE)

    Q1≦Q≦,Q2    MPE =+ 5%           Q2≦Q≦Q4,    MPE= + 2% (For hot water metering, MPE=+ 3%)



    Dimensions and diagram



    Nominal size

    Length

    Width

    Height

    Thread

    mm

    D

    15

    165

    101

    124

    G3/4B

    20

    195

    101

    124

    G1B

    25

    225

    101

    124

    G5/4B
