Waterproof Bangladesh Prepaid Meters , LCD Display Water Meter GPRS Remote Reading

Waterproof Bangladesh Prepaid Meters , LCD Display Water Meter GPRS Remote Reading

    • Waterproof Bangladesh Prepaid Meters , LCD Display Water Meter GPRS Remote Reading
    • Waterproof Bangladesh Prepaid Meters , LCD Display Water Meter GPRS Remote Reading
  • Waterproof Bangladesh Prepaid Meters , LCD Display Water Meter GPRS Remote Reading

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA568-G

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 10,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: GPRS Remote Reading Prepaid Water Meter Standard: 2004/22/EC(MID), OIML R49
    Weight: 1300 G Display: LCD / Counter
    Accuracy: Class B Communication: GPRS
    High Light:

    prepayment water meter

    ,

    electronic water meter

    Waterproof Bangladesh Prepaid Meters GPRS Remote Reading LCD Display Water Meter

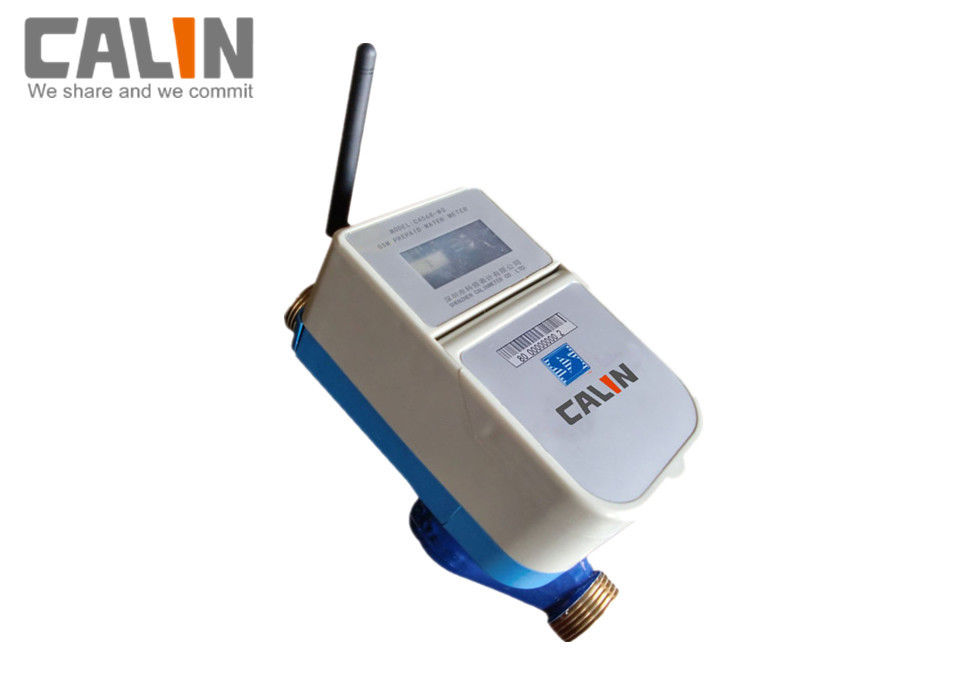

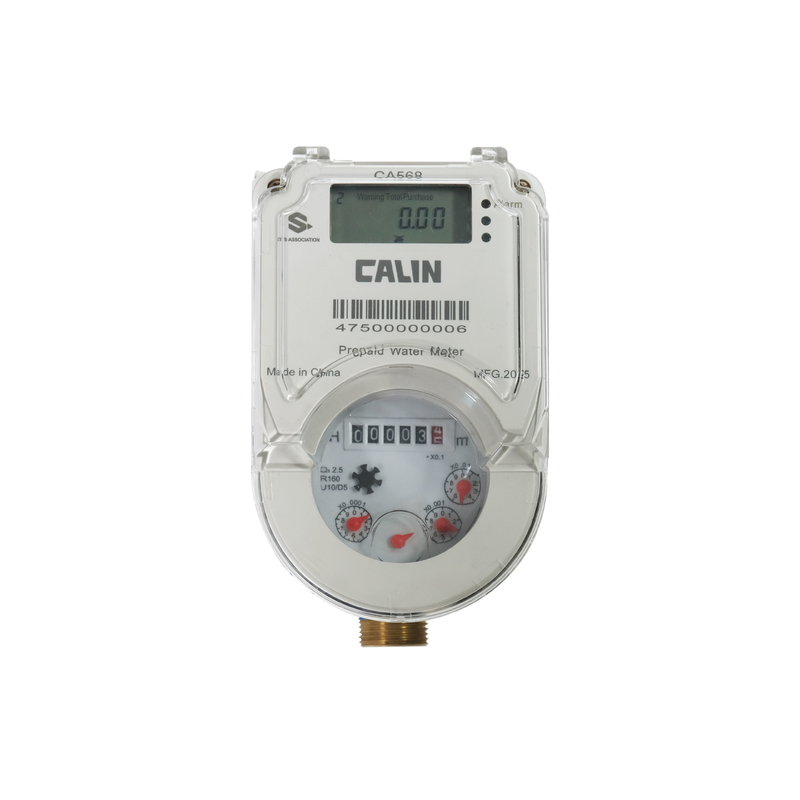

    The CA568-G  is a multi-jet wet type, GPRS remote reading and prepaid water meter.  The meter works with a low power  bistable latched valve driven by battery that is able to open and shut for 4 million times during battery lifetime.  CA568-G series assure you of continuously good metrology and revenue protection at the same time.The electronic part of the meter is potted and sealed above on the metering chamber, away from the water, which makes the meter water proof and adaptable to humid and tropical environments.



    The meter works with our Billing system station, the water meters can transmit the data via GPRS to the Billing station.

    Calinmeter has over 10 years experience in STS prepayment metering. We design, manufacture STS prepayment meters and OEM for other meter factories as well. We are so far the only manufacturer in China who have applied STS technology  not only electric meters but also water and gas meters Bangladesh is our strategic long term market and our calin meter meets the national standard in Bangladesh



    To top-up or recharge the water meter, a consumer just need to purchase 20 digits'  credit token from the vendor and punch in the code with the CIU. With our broad range of prepaid vending solutions, a utility or service provider can manage CAW series water meter along with STS prepaid electricity meters in one vending system.









    Features

    a) Can be ordered with DN15, 20 and 25

    b) Contact-less Transponder technology

    c) Split operation with a in home CIU

    d) Up to 1 mile communication range

    e) LCD and Counter register display

    f) Potted electronics making meter water resistant in humid and tropical environments

    g) Tamper and fraud proof

    h) Low credit warning

    i) Over 10 years’ data retention in absence of power

    j) Prepared for AMR / AMI functions (optional)

    k) DLMS/ COSEM or equivalent open communication protocols



     Key benefits



    1) Quick and easy installation, ideal for both new reticulation and retrofittings

    2) Multi-rate and usage record on Time of Use (TOU) basis

    3) Self-register with head-end sever system

    4) Flexible setting of free basic water, emergency credit, low credit warning, repayment policy

    5) Supports drive-by reading and fully automated reading for AMI smart metering applications

    6) Remote reading and valve control on / off

    7) Reduced operational and inventory cost





    Specifications:







    Nominal size



    Dn



    mm

                    in-line

    15

    20

    25

    Maximum flow rate

    Q4

    m3/h

    3.125

    5.0

    7.875

    Ratio “R”

        Q3/Q1



    80

    80

    80

    Permanent l flow rate

    Q33





    m3/h

    2.5

    4.0

    6.3

    Transitional flow rate

    Q22

    0.05

    0.08

    0.126

    Minimum flow rate

    Q11

    0.031

    0.05

    0.0787

    Minimum reading



    m3

    0.0005

    Maximum reading

    99999



    Maximum Permission Error (MPE)

    Q1≦Q≦,Q2    MPE =+ 5%           Q2≦Q≦Q4,    MPE= + 2% (For hot water metering, MPE=+ 3%)



    Dimensions and diagram



    Nominal size

    Length

    Width

    Height

    Thread

    mm

    D

    15

    165

    101

    124

    G3/4B

    20

    195

    101

    124

    G1B

    25

    225

    101

    124

    G5/4B
