Battery Driven Valve Prepaid Water And Electricity Meters Waterproof GPRS Transmit

Battery Driven Valve Prepaid Water And Electricity Meters Waterproof GPRS Transmit

    • Battery Driven Valve Prepaid Water And Electricity Meters Waterproof GPRS Transmit
    • Battery Driven Valve Prepaid Water And Electricity Meters Waterproof GPRS Transmit
  • Battery Driven Valve Prepaid Water And Electricity Meters Waterproof GPRS Transmit

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA568-G

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 10,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: GPRS Remote Reading Prepayment Water Meter Standard: 2004/22/EC(MID), OIML R49
    Weight: 1300 G Display: LCD / Counter
    Accuracy: Class B Communication: GPRS
    High Light:

    remote water meter

    ,

    prepayment water meter

    Battery Driven Valve Waterproof GPRS Transmit Prepaid Water meter in Indonesia

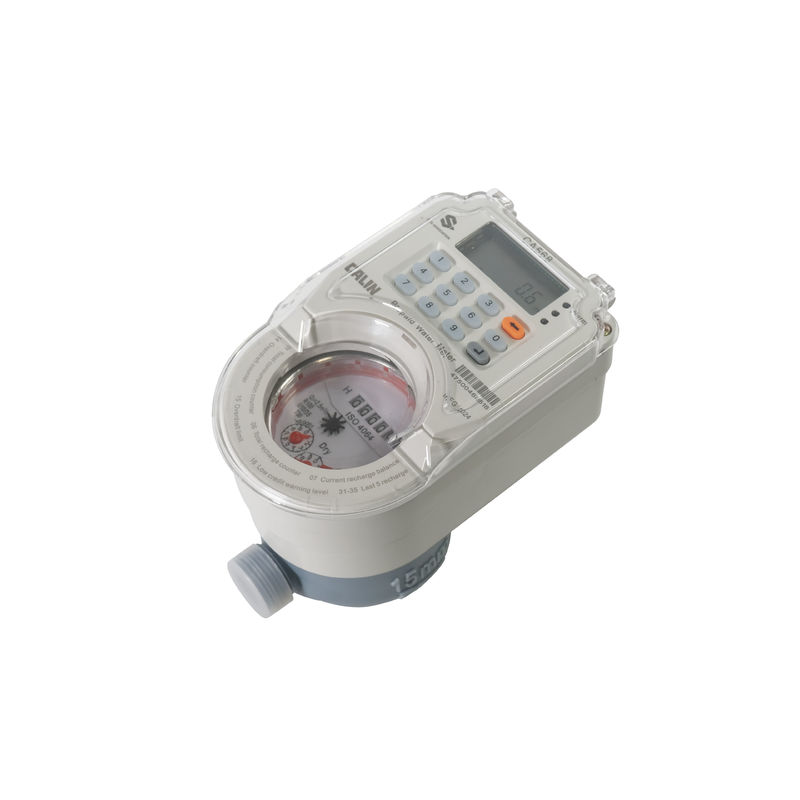

    The CA568-G  is a multi-jet wet / dry type, GPRS remote reading and prepaid water meter.  The meter works with a low power  bistable latched valve driven by battery that is able to open and shut for 4 million times during battery lifetime.  CA568-G series assure you of continuously good metrology and revenue protection at the same time.With potted electronic part  sealed above on the metering chamber, away from the water, which makes the meter water proof and adaptable to humid and tropical environments.



    The meter works with our Billing system station, the water meters can transmit the data via GPRS to the Billing station.

    To top-up or recharge the water meter, a consumer just need to purchase 20 digits'  credit token from the vendor and punch in the code with the CIU. With our broad range of prepaid vending solutions, a utility or service provider can manage not only water meter but also STS prepaid electricity meters in one vending system.



    Calinmeter has over 10 years experience in STS prepayment metering. We design, manufacture STS prepayment meters and OEM for other meter factories as well. Indonesia is our strategic long term market and our calin meter meets the national standard in Indonesia. There is no doubt that Calin is the right one you are not going to missing.





    Features

    a) DN15, 20, 25 up to DN100

    b) Wireless LoRa technology

    c) Split operation with an in home CIU

    d) Up to 1 mile communication distance between meter and DCU(Data concentrator)

    e) LCD and Counter register dual display

    f) Potted electronics making meter water resistant in humid and tropical environments

    g) Tamper and fraud proof

    h) Low credit warning

    i) Life time data retention in absence of power

    j) Prepared for AMR / AMI functions (optional)





     Key benefits



    1) Suitable for new reticulation and retrofittings

    2) Multi-tariff and consumption record on Time of Use (TOU) basis

    3) Auto-register with head-end sever system

    4) Easy setting of free basic water, emergency credit, low credit warning, arrear policy

    5) Supports drive-by reading and fully automated reading for AMI smart metering applications

    6) Remote  valve control on / off

    7) Reduced operational and inventory cost





    Specifications:







    Nominal size



    Dn



    mm

                    in-line

    15

    20

    25

    Maximum flow rate

    Q4

    m3/h

    3.125

    5.0

    7.875

    Ratio “R”

        Q3/Q1



    80

    80

    80

    Permanent l flow rate

    Q33





    m3/h

    2.5

    4.0

    6.3

    Transitional flow rate

    Q22

    0.05

    0.08

    0.126

    Minimum flow rate

    Q11

    0.031

    0.05

    0.0787

    Minimum reading



    m3

    0.0005

    Maximum reading

    99999



    Maximum Permission Error (MPE)

    Q1≦Q≦,Q2    MPE =+ 5%           Q2≦Q≦Q4,    MPE= + 2% (For hot water metering, MPE=+ 3%)



    Dimensions and diagram



    Nominal size

    Length

    Width

    Height

    Thread

    mm

    D

    15

    165

    101

    124

    G3/4B

    20

    195

    101

    124

    G1B

    25

    225

    101

    124

    G5/4B
