CashWater STS Compliant Brass body non-return valve Prepaid Water meter

CashWater STS Compliant Brass body non-return valve Prepaid Water meter

    • CashWater  STS Compliant Brass body non-return valve Prepaid Water meter
    • CashWater  STS Compliant Brass body non-return valve Prepaid Water meter
    • CashWater  STS Compliant Brass body non-return valve Prepaid Water meter
  • CashWater  STS Compliant Brass body non-return valve Prepaid Water meter

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CAW-SL

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 10,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: LCD Display STS Compliant Split CIU Battery Driven Prepaid Water Meter Standard: 2004/22/EC(MID), OIML R49
    Weight: 1300 G Display: LCD / Counter
    Accuracy: Class B Communication: LoRa
    High Light:

    prepayment water meter

    ,

    electronic water meter

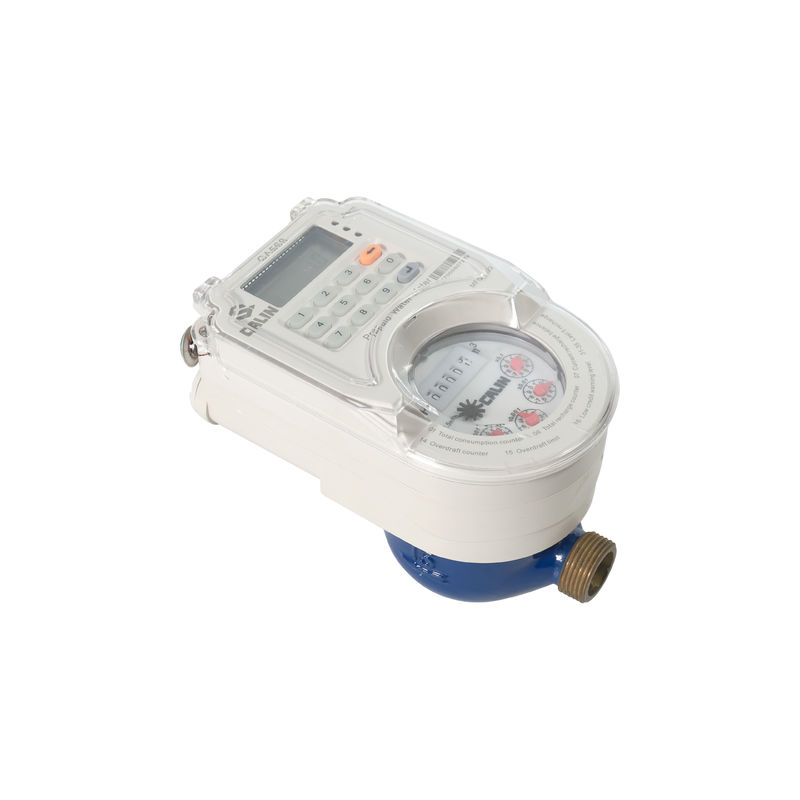

    CashWater STS Compliant Brass body non-return valve Prepaid Water meter

    The CA568 series CashWater is a multi-jet wet type, STS compliant prepaid water meter.  As a counterpart to Cashpower electric prepaid meter, CA568 works in the same principle, and it is equipped with a motor driven ball valve that shuts off water when the credit drains .

    The meter works with a customer interface unit(CIU) through Radio communication.The CIU is installed indoor away from the meter. Consumers buy 20 digits' credit token from the point of sales and input it to the CIU to topup credit to the meter. Information like token acceptance and rejection, credit status, historical usage data can be displayed with the LCD of the CIU.This split design makes the meter immune to any tamper and fraud.



    The meter is reinforced in its wireless communication with LoRa technology, allowing the meter to communicate with a Customer Interface Unit (CIU) or a head-end Server (HES) from a visual distance up to 1 mile.
     With our broad range of prepaid vending solutions, a utility or service provider can manage CAW series water meter along with STS prepaid electricity meters in one vending system.

    STS split prepaid water meter will be a great market in Africa, Calinmeter has over 10 years' experience in STS prepayment metering.We design, manufacture STS prepayment meters and ODM/OEM for other meter factories as well. We are so far the only manufacturer in China who have applied STS technology  not only electric meters but also water and gas meters. For further information, please feel free to contact us, i am surely that calin is the right one you won't miss  for your business!


    Features

    a) Can be ordered with DN15, 20 and 25

    b) Contact-less Transponder technology

    c) Split operation with a in home CIU

    d) Up to 1 mile communication range

    e) LCD and Counter register display

    f) Potted electronics making meter water resistant in humid and tropical environments

    g) Tamper and fraud proof

    h) Low credit warning

    i) Over 10 years’ data retention in absence of power

    j) Prepared for AMR / AMI functions (optional)

    k) DLMS/ COSEM or equivalent open communication protocols

     Key benefits


    1) Quick and easy installation, ideal for both new reticulation and retrofittings

    2) Multi-rate and usage record on Time of Use (TOU) basis

    3) Self-register with head-end sever system

    4) Flexible setting of free basic water, emergency credit, low credit warning, repayment policy

    5) Supports drive-by reading and fully automated reading for AMI smart metering applications

    6) Remote reading and valve control on / off

    7) Reduced operational and inventory cost


    Specifications:





    Nominal size



    Dn



    mm

                    in-line

    15

    20

    25

    Maximum flow rate

    Q4

    m3/h

    3.125

    5.0

    7.875

    Ratio “R”

        Q3/Q1



    80

    80

    80

    Permanent l flow rate

    Q33




    m3/h

    2.5

    4.0

    6.3

    Transitional flow rate

    Q22

    0.05

    0.08

    0.126

    Minimum flow rate

    Q11

    0.031

    0.05

    0.0787

    Minimum reading



    m3

    0.0005

    Maximum reading

    99999



    Maximum Permission Error (MPE)
    Q1≦Q≦,Q2    MPE =+ 5%           Q2≦Q≦Q4,    MPE= + 2% (For hot water metering, MPE=+ 3%)


    Dimensions and diagram


    Nominal size

    Length

    Width

    Height

    Thread

    mm

    D

    15

    165

    101

    124

    G3/4B

    20

    195

    101

    124

    G1B

    25

    225

    101

    124

    G5/4B
