Product Details
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 10,000pcs per month
Product Name: |
STS Prepaid Water Meter |
Type: |
Multi-jet |
Strainer: |
Inlet And Internal Counter |
Display: |
LCD / Counter Register |
Accuracy: |
Class B |
Work Pressure: |
1.6Mpa |
Product Name: |
STS Prepaid Water Meter |
Type: |
Multi-jet |
Strainer: |
Inlet And Internal Counter |
Display: |
LCD / Counter Register |
Accuracy: |
Class B |
Work Pressure: |
1.6Mpa |

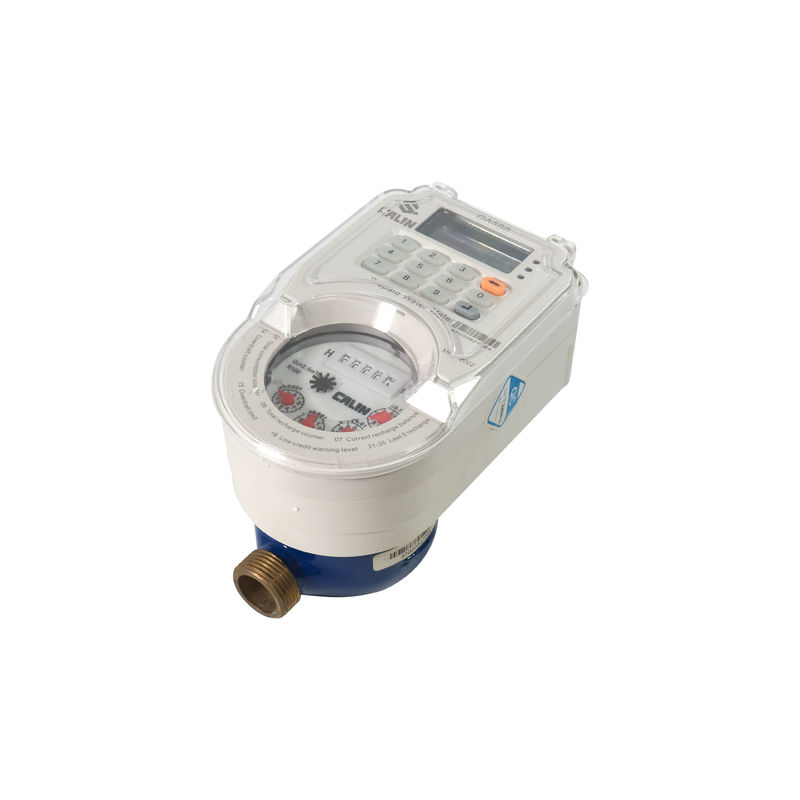

STS as Standard Transfer Specification was built as prepayment metering algorithm standard in early 1990s in South AFrica. After that, there are more than 50 million pcs STS prepaid electricity meters globalwide. However STS with water meter is still new. Calin is one of the pioneers who has successfully migrated STS technology from electric to water meter. The CA568 is a multi-jet wet type, prepaid water meter. It assures you of continuously good metrology and revenue protection at the same time. The meter shuts off when water credit drains up or the meter is being tampered with magnetic or other damage. Customer always need to purchase credit before the supply is restored.
To top-up or recharge the water meter, a consumer just need to purchase 20 digits' credit token from the vendor and punch in the code with the CIU. The CIU is installed in customer's premise, it is kept away from the meter reduce the risk of tamper and fraud proof, customer can know the meter's data credit status and historical usage date from the LCD of CIU. This split type mechanism serves best in tamper rampent areas. Any mess with CIU will not damage the meter while the CIU is in wireless connection with the meter.
Calin STS prepaid water meter supports local third party payment systems such as mobile moeny, credit card, online banking , etc. You can get 24x7 cashflow with Calin-pay vending system and less cost on personnel for vending.
Features
a) STS prepaid technology
b) Approved by STSA in South AFrica
c) Operates with 20 digits token codes
d) Valve turns off when credit drops to zero
e) Tamper proof and valve turns off once tamper is detected
f) Maintain accuracy in lifetime
g) Back flow prevention
h) Pre-programmable Low credit warning
Key benefits
1) Sustain in grit particle water environment
2) Quick money back and good cashflow
3) Improve revenue collection
4) Save cost for meterman and maintenance
5) Protection from tamper such as magnetic and battery removal
6) Non-revenue water monitor
7) Ready for AMR smart metering
Specifications:
Nominal size |
Dn |
mm |
in-line | ||
15 | 20 | 25 | |||
Maximum flow rate | Q4 | m3/h | 3.125 | 5.0 | 7.875 |
Ratio “R” | Q3/Q1 | 80 | 80 | 80 | |
Permanent l flow rate | Q33 |
m3/h |
2.5 | 4.0 | 6.3 |
Transitional flow rate | Q22 | 0.05 | 0.08 | 0.126 | |
Minimum flow rate | Q11 | 0.031 | 0.05 | 0.0787 | |
Minimum reading |
m3 |
0.0005 | |||
Maximum reading | 99999 |
Maximum Permission Error (MPE)
Q1≦Q≦,Q2 MPE =+ 5% Q2≦Q≦Q4, MPE= + 2% (For hot water metering, MPE=+ 3%)
Dimensions and diagram
Nominal size | Length | Width | Height | Thread |
mm | D | |||
15 | 165 | 101 | 124 | G3/4B |
20 | 195 | 101 | 124 | G1B |
25 | 225 | 101 | 124 | G5/4B |
