Product Details
Place of Origin: China
Brand Name: Calin
Certification: CE//IEC
Model Number: CA168
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal,T/T,L/C
Supply Ability: 10,000pcs per month
Product Name: |
STS Split Keypad Prepaid Water Meter |
Accuracy Class: |
Class C / R160 |
Weight: |
1.7 Kg |
Display: |
LCD / Counter |
Temperature: |
0.1~50°C |
Type: |
Multi-jet Dry Dial |
Product Name: |
STS Split Keypad Prepaid Water Meter |
Accuracy Class: |
Class C / R160 |
Weight: |
1.7 Kg |
Display: |
LCD / Counter |
Temperature: |
0.1~50°C |
Type: |
Multi-jet Dry Dial |

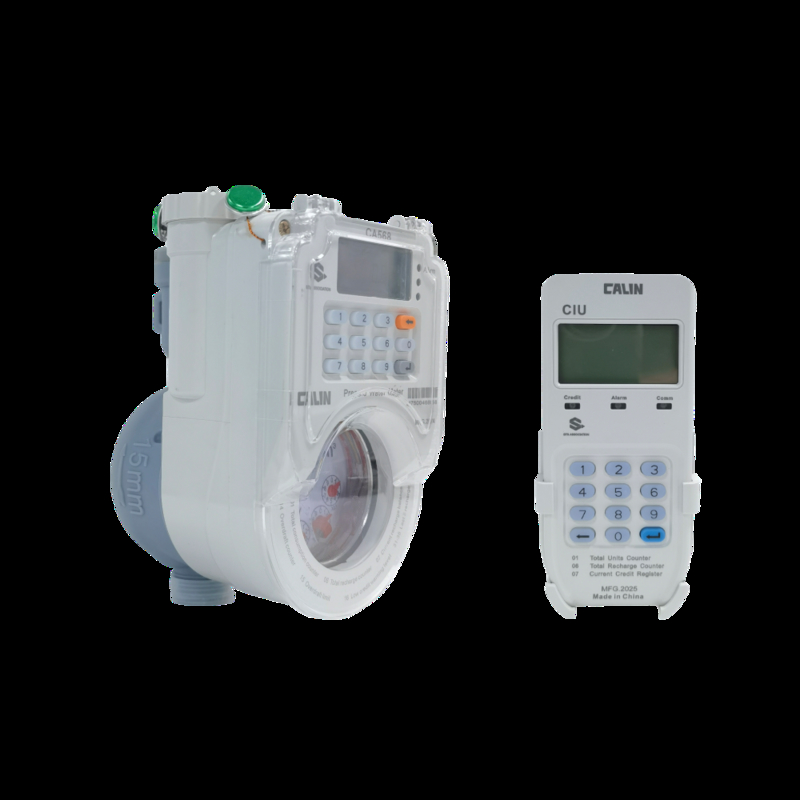

The CA568 is an STS prepayment standard multi-jet dry dial type, prepaid water meter. The meter has compact design, equipped with a low power motor driven valve, and switches off water supply when credit drains or tamper is detected. CA568 series assure you of continuously good metrology and revenue protection at the same time. It has IP68 highest water proof protection, allowing it to work in server flooding environment.
To top-up or recharge the water meter, a consumer just need to purchase 20 digits' credit token from the vendor and punch in the code with the CIU. The CIU is installed in customer's premise, it is kept away from the meter reduce the risk of tamper and fraud proof, customer can know the meter's data credit status and historical usage date from the LCD of CIU. This split type mechanism vastly reduce the chance of tamper.
|
Nominal size |
Dn |
mm |
in-line |
||
|
15 |
20 |
25 |
|||
|
Maximum flow rate |
Q4 |
m3/h |
3.125 |
5.0 |
7.875 |
|
Ratio “R" |
Q3/Q1 |
80 |
80 |
80 |
|
|
Permanent l flow rate |
Q33 |
m3/h |
2.5 |
4.0 |
6.3 |
|
Transitional flow rate |
Q22 |
0.05 |
0.08 |
0.126 |
|
|
Minimum flow rate |
Q11 |
0.031 |
0.05 |
0.0787 |
|
|
Minimum reading |
m3 |
0.0005 |
|||
|
Maximum reading |
99999 |
||||
Q1≦Q≦,Q2 MPE =+ 5% Q2≦Q≦Q4, MPE= + 2% (For hot water metering, MPE=+ 3%)
|
Nominal size |
Length |
Width |
Height |
Thread |
|
mm |
D |
|||
|
15 |
165 |
101 |
124 |
G3/4B |
|
20 |
195 |
101 |
124 |
G1B |
|
25 |
225 |
101 |
124 |
G5/4B |
