the only legal owner of CALIN brand and the sole manufacturer of Calin series utility meters.
Calinmeter reserve the right to pursue any legal remedies from Anyone or entity who claims as the group or affiliation of Calin or distributes Calin meter products without proper authorizations.
 |
| Place of Origin: | China |
| Brand Name: | Calin |
| Certification: | CE/SABS/IEC |
| Model Number: | CA168 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 30 days |
| Payment Terms: | western Union,Paypal, T/T, L/C |
| Supply Ability: | 10,000pcs per month |
| Product Name: | Wireless Remote STS Prepaid Water Meter | Standard: | 2004/22/EC(MID), OIML R49 |
|---|---|---|---|
| Weight: | 1.3kg | Display: | LCD / Counter / CIU |
| Accuracy: | Class C | Work Pressure: | 1.6MP / 16 Bar |
| High Light: | prepayment water meter,electronic water meter |
||

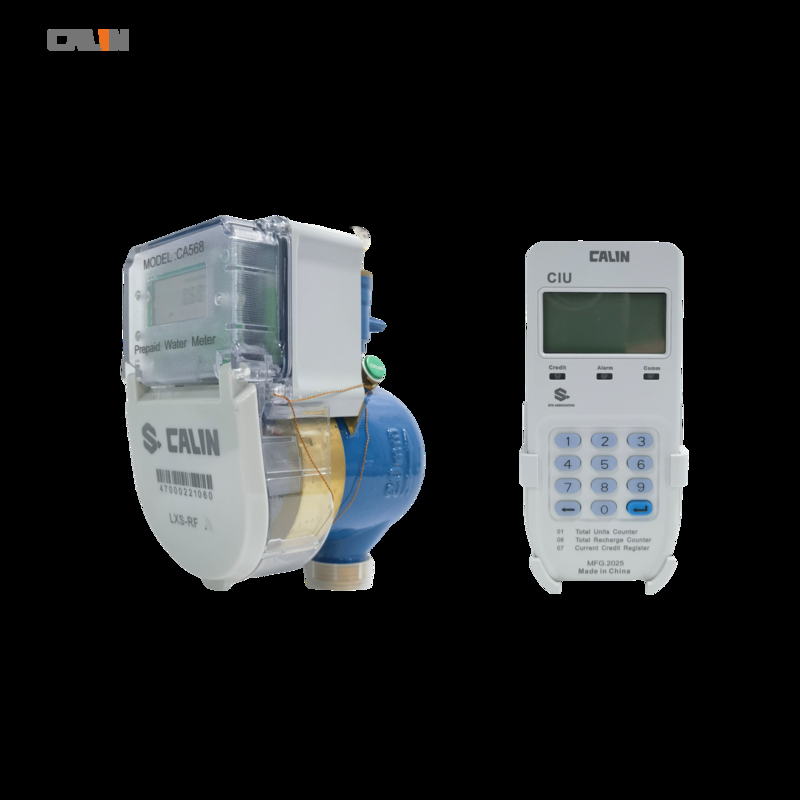

The CA568 is a multi-jet wet / Dry type, prepaid water meter operating with a split CIU (custeomr interface unit) keypad. The meter is built with a motor driven ball valve and shuts off when credit drops down to zero. The valve can sustain 4 million on/offs during lifetime. CA568 runs with replacable lithum battery of 3 year lifespan. The meter is designed to sustain water splash and applicable for humid and damp environments.
CIU is usually mounted within customer's house and meter is locked away in cabinet or kiosk out of customers' reach. Customers do topup and info check with CIU and whatever they do with CIU would never affect the main meter.
Calinmeter is original meter manufacturer and solution provider, we not only produce our own products but also ODM / OEM with other meter manufacturers, For water meter, our company has strong technical support and advanced system service, For further information, please contact us freely.
Features
a) STS prepayment standard compliant
b) Easy to vend and manage
c) Split design prevents tamper
d) Wireless communication
e) LCD and Counter register dual display
f) Grit particle water immune
g) Tamper and fraud proof, revenue protection
h) Low credit warning valve off
i) Replacable battery
j) Prepared for AMR / AMI functions (optional)
Key benefits
1) Quick and easy installation, ideal for both new reticulation and retrofittings
2) Flexible software design according to your local management and operation flow
3) Compatible with mobile payment and credit card payment system
4) Setting of free basic water, emergency credit, low credit alarm, debt collection, etc.
5) Supports drive-by reading and fully automated reading for AMI smart metering applications
6) Remote reading and valve control on / off
7) Reduced operational and inventory cost
Specifications:
|
Nominal size |
Dn |
mm |
in-line | ||
| 15 | 20 | 25 | |||
| Maximum flow rate | Q4 | m3/h | 3.125 | 5.0 | 7.875 |
| Ratio “R” | Q3/Q1 | 80 | 80 | 80 | |
| Permanent l flow rate | Q33 |
m3/h |
2.5 | 4.0 | 6.3 |
| Transitional flow rate | Q22 | 0.05 | 0.08 | 0.126 | |
| Minimum flow rate | Q11 | 0.031 | 0.05 | 0.0787 | |
| Minimum reading |
m3 |
0.0005 | |||
| Maximum reading | 99999 | ||||
Maximum Permission Error (MPE)
Q1≦Q≦,Q2 MPE =+ 5% Q2≦Q≦Q4, MPE= + 2% (For hot water metering, MPE=+ 3%)
Dimensions and diagram
| Nominal size | Length | Width | Height | Thread |
| mm | D | |||
| 15 | 165 | 101 | 124 | G3/4B |
| 20 | 195 | 101 | 124 | G1B |
| 25 | 225 | 101 | 124 | G5/4B |
