| Place of Origin: | China |
| Brand Name: | Calin |
| Certification: | CE/SABS/IEC |
| Model Number: | CA568 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 30 days |
| Payment Terms: | western Union,Paypal, T/T, L/C |
| Supply Ability: | 10,000pcs per month |
| Product Name: | STS Prepayment Water Meter | Standard: | 2004/22/EC(MID), OIML R49 |
|---|---|---|---|
| Weight: | 1300 G | Max Pressure: | 16 Bar |
| Material: | Brass And Plastic On Request | Accuracy: | Class B / R100 |
| High Light: | remote water meter,prepayment water meter |
||

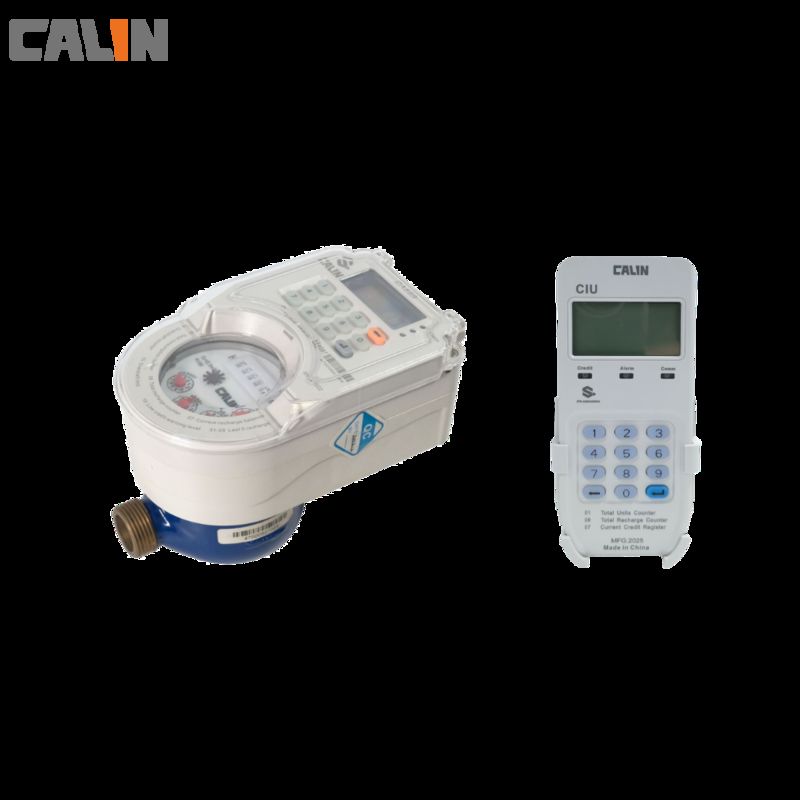

The CA568 operates with a hydraulical ball valve driven by low power usage motor and shuts off when water credit finish until customer topup in the point of sales(POS). There is a non-return valve at inlet of the meter to prevent back flow. Double inside strainers can filter small particles such as drift, dust and pipe line rust to protect the core counter.
CIU means customer interface unit is offered to enter recharge tokens and short codes to check information, it is installed within customer's house. the communication between CIU and water meter is RF-LORA, The meter is available with AMR data transmission features
Mobile payment such as moblie money ,SMS supported, no need to go to vending point to recharge credit so that make company instant investment back.
Features
a)DN15, 20 up to DN 100
b) STS compliant AND approved by STSA
c) Mobile payment supported
d) Stable and reliable, insensitive to grit particles in water,not liable to jammed or accuracy loss
e) Both LCD and counter display
g) Shuts on tamper such as magnetic interference, battery removal, or case damage
h) Programmable Low credit warning
i) Over 15 year data detention when there is no power
Key benefits
1) Light and easy to install and maintenance
2) Credits finish and meter turns off
3) Ready for AMR HES server
4) Free basic water, emergency credit, low credit warning can be configured
5) Pre-programmable low credit warning
6) Non-return valve can preventing back-flow
7) Revenue normalization , quick cash back
Specifications:
|
Nominal size |
Dn |
mm |
in-line |
||
|
15 |
20 |
25 |
|||
|
Maximum flow rate |
Q4 |
m3/h |
3.125 |
5.0 |
7.875 |
|
Ratio “R” |
Q3/Q1 |
|
80 |
80 |
80 |
|
Permanent l flow rate |
Q33 |
m3/h |
2.5 |
4.0 |
6.3 |
|
Transitional flow rate |
Q22 |
0.05 |
0.08 |
0.126 |
|
|
Minimum flow rate |
Q11 |
0.031 |
0.05 |
0.0787 |
|
|
Minimum reading |
m3 |
0.0005 |
|||
|
Maximum reading |
99999 |
||||
Maximum Permission Error (MPE)
Q1≦Q≦,Q2 MPE =+ 5% Q2≦Q≦Q4, MPE= + 2% (For hot water metering, MPE=+ 3%)
Dimensions and diagram
|
Nominal size |
Length |
Width |
Height |
Thread |
|
mm |
D |
|||
|
15 |
165 |
101 |
124 |
G3/4B |
|
20 |
195 |
101 |
124 |
G1B |
|
25 |
225 |
101 |
124 |
G5/4B |
