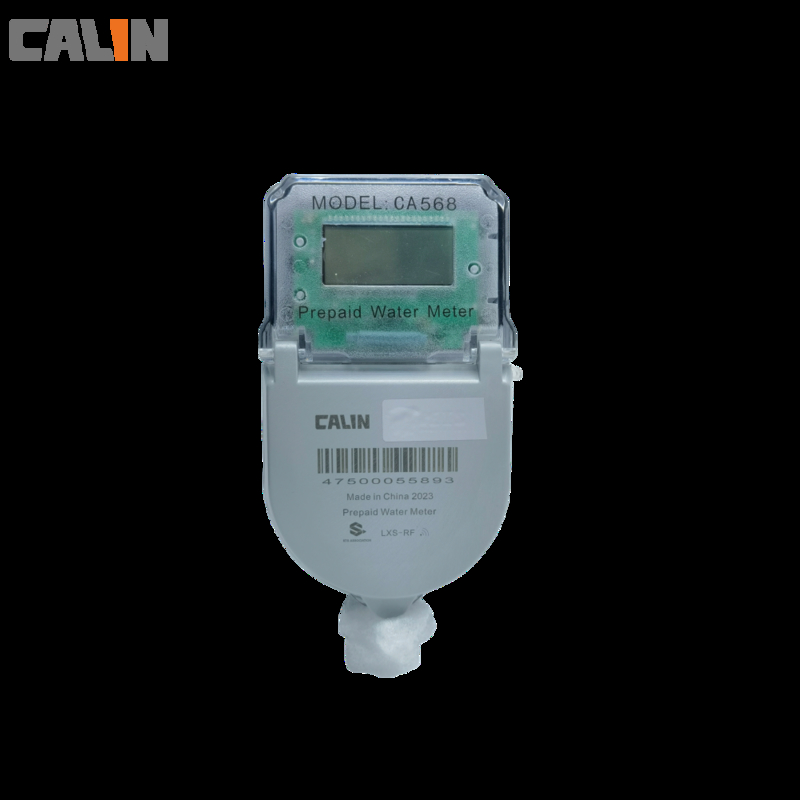

Housing Prepayment Water Meter Smart Remote Reading GPRS Transmit

Product Details

Place of Origin: China

Brand Name: Calin

Certification: CE/SABS/IEC

Model Number: CA568-S

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotiation

Packaging Details: Carton

Delivery Time: 30 days

Payment Terms: western Union,Paypal, T/T, L/C

Supply Ability: 10,000pcs per month

Get Best Price
Highlight:

prepayment water meter

,

electronic water meter

,

remote reading prepaid watermeter

Product Name:
STS Prepaid Water Meter
Type:
Multi-jet
Protection:
IP67
Display:
LCD / Counter Register
Accuracy:
Class B
Communication:
RF
Product Name:
STS Prepaid Water Meter
Type:
Multi-jet
Protection:
IP67
Display:
LCD / Counter Register
Accuracy:
Class B
Communication:
RF
Housing Prepayment Water Meter Smart Remote Reading GPRS Transmit

Housing Prepayment Water Meter Smart Remote Reading GPRS Transmit

The CA568-G is a multi-jet wet / dry type, GPRS remote reading and prepaid water meter. The meter works with a low power bistable latched valve driven by battery that is able to open and shut for 4 million times during battery lifetime. CA568-G series assure you of continuously good metrology and revenue protection at the same time.With potted electronic part sealed above on the metering chamber, away from the water, which makes the meter water proof and adaptable to humid and tropical environments.



The meter works with our Billing system station, the water meters can transmit the data via GPRS to the Billing station.

To top-up or recharge the water meter, a consumer just need to purchase 20 digits' credit token from the vendor and punch in the code with the CIU. With our broad range of prepaid vending solutions, a utility or service provider can manage not only water meter but also STS prepaid electricity meters in one vending system.









Features

a) STS prepaid technology

b) Approved by STSA in South AFrica

c) Operates with 20 digits token codes

d) Valve turns off when credit drops to zero

e) Tamper proof and valve turns off once tamper is detected

f) Maintain accuracy in lifetime

g) Back flow prevention

h) Pre-programmable Low credit warning





Key benefits



1) Sustain in grit particle water environment

2) Quick money back and good cashflow

3) Improve revenue collection

4) Save cost for meterman and maintenance

5) Protection from tamper such as magnetic and battery removal

6) Non-revenue water monitor

7) Ready for AMR smart metering





Specifications:







Nominal size



Dn



mm

in-line
15 20 25
Maximum flow rate Q4 m3/h 3.125 5.0 7.875
Ratio “R” Q3/Q1   80 80 80
Permanent l flow rate Q33





m3/h

2.5 4.0 6.3
Transitional flow rate Q22 0.05 0.08 0.126
Minimum flow rate Q11 0.031 0.05 0.0787
Minimum reading



m3

0.0005
Maximum reading 99999



Maximum Permission Error (MPE)

Q1≦Q≦,Q2 MPE =+ 5% Q2≦Q≦Q4, MPE= + 2% (For hot water metering, MPE=+ 3%)



Dimensions and diagram



Nominal size Length Width Height Thread
mm D
15 165 101 124 G3/4B
20 195 101 124 G1B
25 225 101 124 G5/4B



Housing Prepayment Water Meter Smart Remote Reading GPRS Transmit 0Housing Prepayment Water Meter Smart Remote Reading GPRS Transmit 1Housing Prepayment Water Meter Smart Remote Reading GPRS Transmit 2
