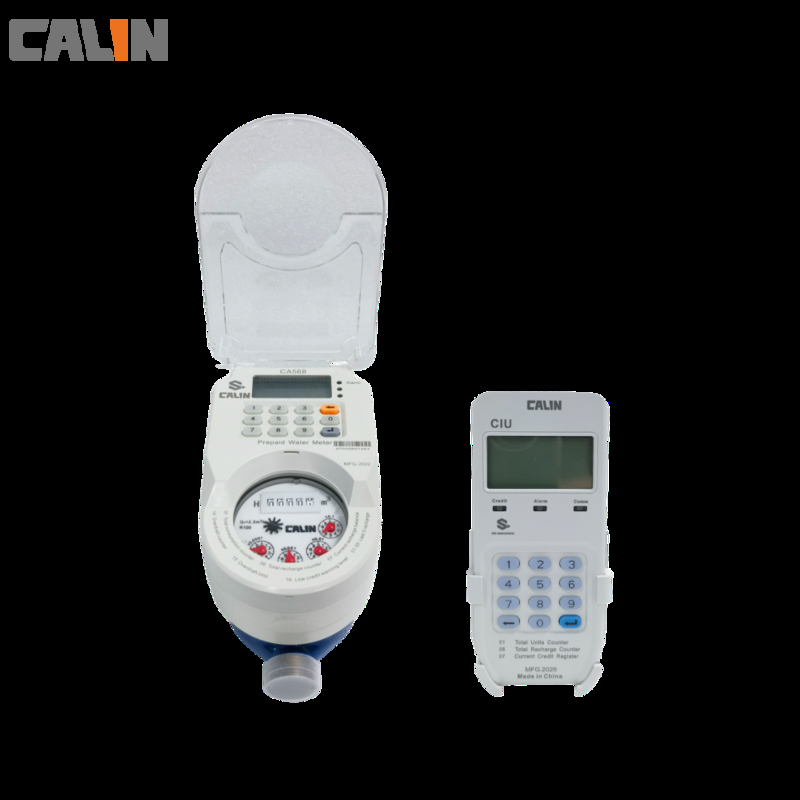

Smart Remote Reading Prepaid Water Meters With LORA RF Communication

Name: Smart Remote Reading Prepaid Water Meters With LORA RF Communication
Brand: Calin
SKU: CA568-N
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (103 reviews)

Product Details:

Place of Origin:	China
Brand Name:	Calin
Certification:	CE/SABS/IEC
Model Number:	CA568-N

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	30 days
Payment Terms:	western Union,Paypal, T/T, L/C
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Smart Remote Reading Lorawan Water Meter With LORA-RF Communication	Type:	Postpaid Water Meter
Protection:	IP54	Display:	Counter Register
Communication:	Lora-RF	Size:	DN15-DN50
Material:	Brass And Plastic Body On Request
High Light:	remote water meter , prepayment water meter , smart remote reading prepaid watermeter

Smart Remote Reading Prepaid Water Meters With LORA RF Communication

CA568-L is used for family or resident’s measuring the gross number of flows pass through pipeline. It has stronganti-tamper and high reliability, low power consumption and have long lifetime.The meter is equipped with latest Semtech LORA-RF communication unit, allowing it to communicate Data concentrator unit (DCU) and Handheld meter reading unit situated up to 1km away. LORA is a 2-way wireless solution that complement M2M cellular infrastructure, and provide a low-cost way connect smart meters to network infrastructure.

Features

Directive 2014/32/EU, OMIL R-49:2013(E)& EN14154 compliant
Wet dial / dry dial register construction on request
Low consumption design, only consume when meter need to be read.
Satisfy the electronic compatibility of the design requirement of EMC, ESD, EMI.
Strong anti-tamper and high reliability.
Brass / plastic meter body on request
Reading through LORA-RF communication unit

Specifications:

DN		mm	15	20	25	32	40	50
Size		Inch	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Q4 permanent flow		m³/h	3.125	5	7.875	12.5	20	31.25
Q3 Overload flow		m³/h	2.5	4	6.3	10	16	25
R80 Q3/Q1	Q2	m³/h	0.05	0.08	0.126	0.2	0.32	0.5
R80 Q3/Q1	Q1	m³/h	0.031	0.05	0.079	0.125	0.2	0.312
R100 Q3/Q1	Q2	m³/h	0.04	0.064	0.1	0.16	0.256	0.4
R100 Q3/Q1	Q1	m³/h	0.025	0.04	0.063	0.1	0.16	0.25
R125 Q3/Q1	Q2	m³/h	0.032	0.051	0.081	0.128	0.2	0.32
R125 Q3/Q1	Q1	m³/h	0.02	0.032	0.05	0.08	0.128	0.2
Max.Pressure		Bar	16
Pressure loss		Bar	0.63 (as complete unit)
Max temperature		℃	50
Max reading		m³	99999
Max Permissible Error (MPE)		%	Q1≤Q≤Q2: MPE = ±5% Q2≤Q≤Q4:MPE = ±2%

Dimension

Size mm DN in	15 1/2"	20 3/4"	25 1"	32 1-1/4"	40 1-1/2"	50 2"
Length(L)	165/190	190	225/260	230/260	245/300	280/300
Width(W)	99	99	103	104	124	125
Height (H)	104	106	114	117	147	172
Connecting Thread	G3/4B	G1B	G1-1/4B	G1-1/2B	G2B	G2-1/2B	Flange ISO7005
