| Place of Origin: | China |
| Brand Name: | Calin |
| Certification: | CE/SABS/IEC |
| Model Number: | CA568 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 30 days |
| Payment Terms: | western Union,Paypal, T/T, L/C |
| Supply Ability: | 10,000pcs per month |
| Product Name: | IP68 Protection R160 Accuracy Remotely Reading AMR Smart Water Meter | Standard: | ISO 4064, STS |
|---|---|---|---|
| Weight: | 1300 G | Display: | Backlight LCD |
| Accuracy: | Class C | Communication: | RF-Lora, LoraWan, NB-IoT |
| High Light: | remote water meter,prepayment water meter,IP68 prepaid watermeter |
||

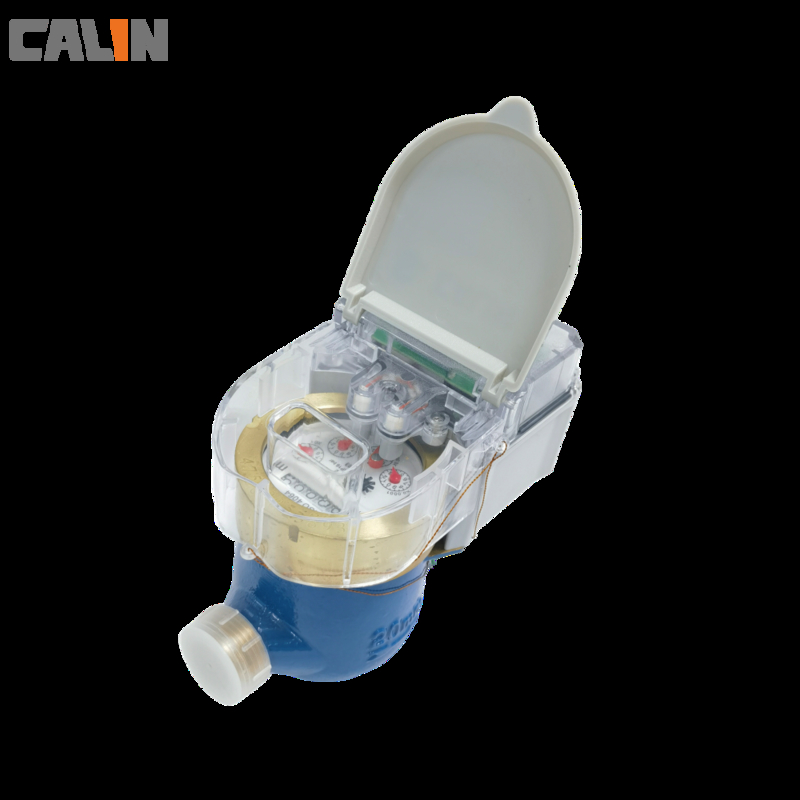

CA568 is built-in RF wireless communication module smart water meter. A hydraulically operating valve is built in the water meter, the valve drived by low power usage motor so that the battery can last 10 years with once a day valve on/off. AMR system have multi functions: Remotely reading, switch on/off valve remotely, data upload, data analysis, etc. The non-return valve can effectively avoid the back flow and the stainer can prevent the impurities in water.
The LoraWan and NB-IoT technologies has been apply in the monitoring system. The LoraWan and NB-IoT technologies have been apply in the smart city construction, more and more LoraWan or NB-IoT base station have been completed for the city service.
Features
a) DN15, DN20, DN25 mm on request, Up to DN100 mm
b) Reasonable design effectively prevent dirt, sand, pipe rust, etc.
c) Non-return valve and double layer strainer
d) High accuary design, never loss the accuracy in the lifetime
e) LCD and Counter register dual display
f) True IP68 waterproof against flood
g) The valve will shut off when the temper and battery loss
h) Prepaid and post paid on request
i) Low credit warning, emergency credit can be setting
j) Wireless communication LoRa/LoraWan/NB-IoT Prepared for AMR / AMI functions (optional)
k) Support handheld drive-by reading and AMR reading ( on request)
Key benefits
1) Support real time reading the meter remotely and control remotely
2) Brass body and Nylon body on request
3) Daily report and Monthly bill
4) Support integrate the third platform, SMS/Email to send the bill
5) Interface with control center or any other service provider's system, billing, ERP, CRM
6) Zero maintenance, effective reduce the maintance cost.
Specifications:
|
Nominal size |
Dn |
mm |
In-line | ||
| 15 | 20 | 25 | |||
| Maximum flow rate | Q4 | m3/h | 3.125 | 5.0 | 7.875 |
| Ratio “R” | Q3/Q1 | 160 | 160 | 160 | |
| Permanent l flow rate | Q3 |
m3/h |
2.5 | 4.0 | 6.3 |
| Transitional flow rate | Q2 | 0.05 | 0.08 | 0.126 | |
| Minimum flow rate | Q1 | 0.0156 | 0.025 | 0.039 | |
| Minimum reading |
m3 |
0.0005 | |||
| Maximum reading |
99999 |
||||
Maximum Permission Error (MPE)
Q1≦Q≦,Q2 MPE =+ 5% Q2≦Q≦Q4, MPE= + 2% (For hot water metering, MPE=+ 3%)
Dimensions and diagram
|
Nominal size |
Length |
Width |
Height |
Thread |
|
mm |
D |
|||
|
15 |
165 |
101 |
124 |
G3/4B |
|
20 |
195 |
101 |
124 |
G1B |
|
25 |
225 |
101 |
124 |
G5/4B |
