IEC/SABS Standard Prepaid Kwh Meter PV Solar Generation Local Prepayment 2W

IEC/SABS Standard Prepaid Kwh Meter PV Solar Generation Local Prepayment 2W

    • IEC/SABS Standard Prepaid Kwh Meter PV Solar Generation Local Prepayment 2W
  • IEC/SABS Standard Prepaid Kwh Meter PV Solar Generation Local Prepayment 2W

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA168-S

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: 1 Phase Din Rail STS Prepayment Watt Hour Meter Mounting: 35mm Din Rail
    Dimensions: 155x120x52mm Weight: 800 G
    Constant: 1000 Imp/kWh Accuracy: Class 1s
    Standard: IEC/SABS Connection Type: Radio Frequency , LoRa
    High Light:

    electricity vending system

    ,

    smart micro grid

    Mini Grid PV Solar Generation Local Prepayment Smart minigrid offgrid rural Meter

    with Mobile Money Integration

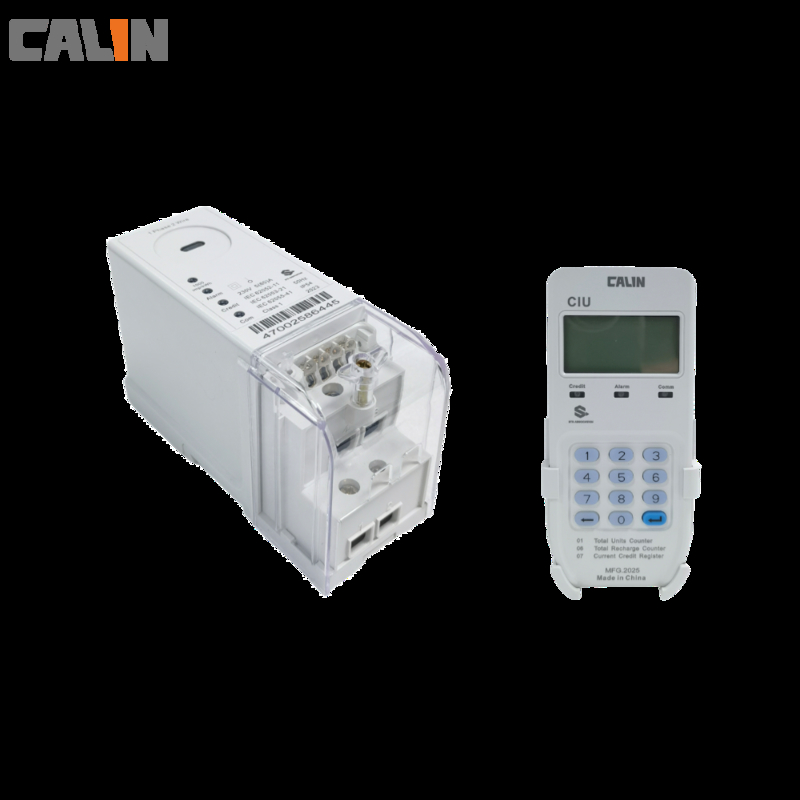

    The CA168-S is split type prepaid Kwh meter with CIU (Cusomter Interface Unit), designed for Mini Grid PV Solar Generation Plant. This model is compliance with STS (Standard Transfer Specification), allows the service provider to make various setting with the meter, such as emergency credit, power limit, low credit warning levle, debt collection policy, etc.



    Local Prepayment



    Thanks to build in STS prepayment algorithm, and the vending software generate the 20-digit Token based on the STS encryption algorithm, which means the meter can achieve the prepayment functions locally even through there is no any communication between the meter and vending system.



    Mobile Money Integration



    We can provide a api port of our STS vending software, to integarte into local mobile money platform. When the user pay on the Mobile money APP, our vending software will get a inform to generate the corresponding Token based on the meter ID and recharge amount, and then send the Token to the user's phone by message. The user only need to input the token by the keypad.



    IEC/SABS Standard Prepaid Kwh Meter PV Solar Generation Local Prepayment 2W 0





    Major Features



    1) STS standard encryption

    2) Up to 1 mile distance of non-wired communication

    3) Adjustable power limit and emergency credit

    4) Critical metrological value measurement

    5) Bi-directional measurement for reverse energy(SRE)

    6) IP54 rating

    7) Multi-rate and usage register on Time of Use (TOU) basis

    8) Tamper proof: neutral missing



     User Benefits

    a) Easy to install and deploy

    b) Two way communication with AMR AMI server(On request)

    c) Reduce operational and deployment cost

    d) Flexible contract control via various payment settings

    e) 15 year designed life





    Specifications:

    Nominal voltage Un

    220/230/240 V

    Limited voltage

    70%~120%Un

    Nominal frequency fn

    50-60Hz+5%

    Basic current(Ib)

    5-10A

    Maximum current(Imax)

    60-100A

    Starting current(Ist)

    20mA

    Active energy constant

    1000imp/kWh

    Accuracy as Active energy to IEC62053‐21

    Class1.0

    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Operating temperature

    25℃ to+70℃

    Storage temperature

    40℃ to+85℃

    Insulation level

    4kV rms for 1min

    Impulse voltage withstand

    8kV, 1.2/50 μs

    Air discharge

    16kV

    Immunity to HF fields



    80MHz to 2GHz with load

    10V/m

    100kHz to 1GHz without load

    30V/m

    Fast transient burst test

    4kV

    Meter shell Protection Rate

    IP54(IEC60529)

    Insulation System Classification

     Protective Class II

    IEC/SABS Standard Prepaid Kwh Meter PV Solar Generation Local Prepayment 2W 1
