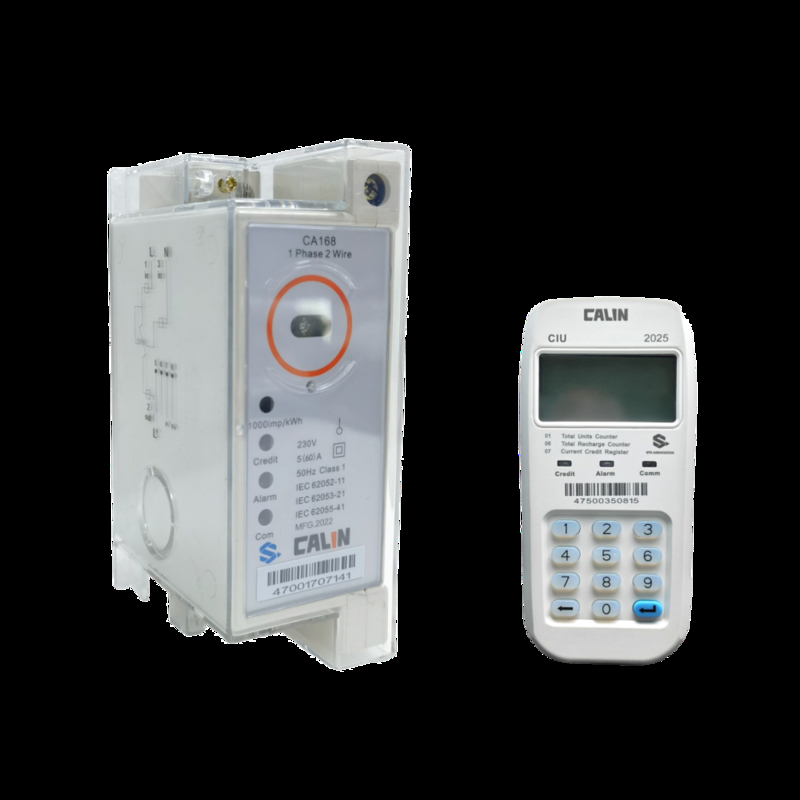

1 Phase 470mHz STS SABS Din Rail Power Meter Credit

1 Phase 470mHz STS SABS Din Rail Power Meter Credit

    • 1 Phase 470mHz STS SABS Din Rail Power Meter Credit
  • 1 Phase 470mHz STS SABS Din Rail Power Meter Credit

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA168-S

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: 1 Phase Din Rail STS Prepayment Watt Hour Meter Mounting: 35mm Din Rail
    Dimensions: 155x120x52mm Weight: 800 G
    Constant: 1000 Imp/kWh Accuracy: Class 1s
    Standard: IEC/SABS Connection Type: Radio Frequency , LoRa
    High Light:

    SABS Din Rail Power Meter Credit

    ,

    470mHz Din Rail Power Meter Credit

    ,

    STS Prepaid Prepayment Meter

    SABS Standard Smart For Minigrid Offgrid Rural , Din Rail Power Meter Credit Debt Collection Wireless Device



    The DDSY168-S adopts 433mHz-470mHz radio frequency and LoRa wireless communication for split type connection with customer interface unit (CIU), a keypad based display installed within customer's premise, while at the same time, the MCU, metering control unit, or the main meter, is installed away from customer. This wireless split type setup offers low power consumption communication between MCU and CIU and thus a feasible fraud / tamper protection by separating meters away from the customer. A utility and service provider can read the meter and inspect the connection with no need to entering customer's home.



    The meter as STS compliant, allows the service provider to make various setting with the meter, such as emergency credit, power limit, low credit warning levle, debt collection policy, etc. This flexible setting makes the meter an effective and effcient revenue protection device.



    LoRa is a long range low power consumption wireless communication technology. The distance in between MCU  and CIU can be upto 1 mile. This non-wired solution offers even greater convenience for fraud protection and lower cost of customer management.





    Major Features



    1) STS standard encryption

    2) Up to 1 mile distance of non-wired communication

    3) Adjustable power limit and emergency credit

    4) Critical metrological value measurement

    5) Bi-directional measurement for reverse energy(SRE)

    6) IP54 rating

    7) Multi-rate and usage register on Time of Use (TOU) basis

    8) Tamper proof: neutral missing



     User Benefits

    a) Easy to install and deploy

    b) Two way communication with AMR AMI server(On request)

    c) Reduce operational and deployment cost

    d) Flexible contract control via various payment settings

    e) 15 year designed life





    Specifications:

    Nominal voltage Un

    220/230/240 V

    Limited voltage

    70%~120%Un

    Nominal frequency fn

    50-60Hz+5%

    Basic current(Ib)

    5-10A

    Maximum current(Imax)

    60-100A

    Starting current(Ist)

    20mA

    Active energy constant

    1000imp/kWh

    Accuracy as Active energy to IEC62053‐21

    Class1.0

    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Operating temperature

    25℃ to+70℃

    Storage temperature

    40℃ to+85℃

    Insulation level

    4kV rms for 1min

    Impulse voltage withstand

    8kV, 1.2/50 μs

    Air discharge

    16kV

    Immunity to HF fields



    80MHz to 2GHz with load

    10V/m

    100kHz to 1GHz without load

    30V/m

    Fast transient burst test

    4kV

    Meter shell Protection Rate

    IP54(IEC60529)

    Insulation System Classification

     Protective Class II

    1 Phase 470mHz STS SABS Din Rail Power Meter Credit 0
