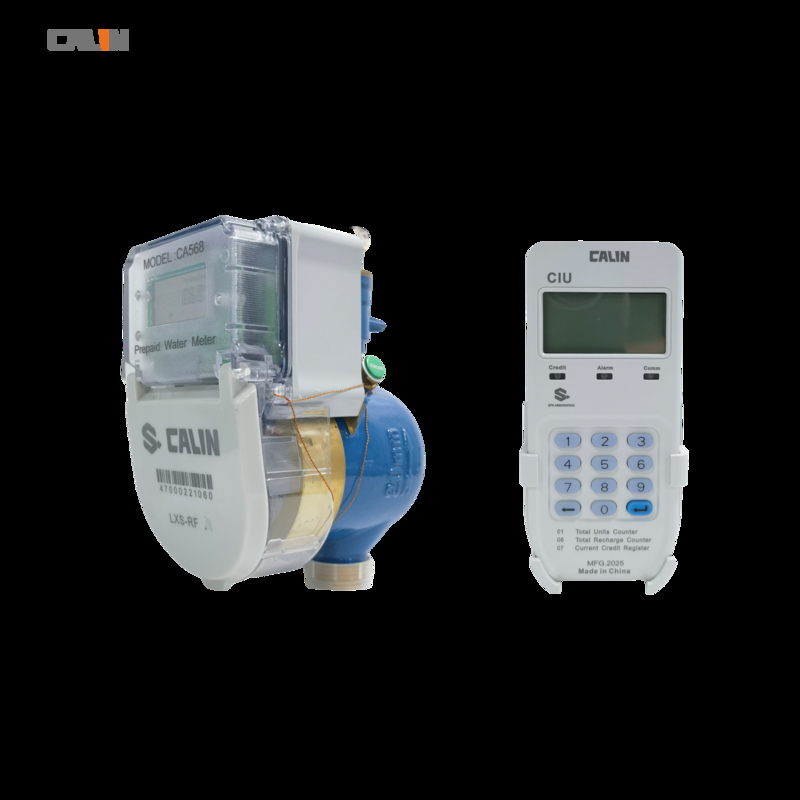

Multi Jet LCD Display Prepaid Water Meters With CIU Keypad

Multi Jet LCD Display Prepaid Water Meters With CIU Keypad

Multi Jet LCD Display Prepaid Water Meters With CIU Keypad
Multi Jet LCD Display Prepaid Water Meters With CIU Keypad
Multi Jet LCD Display Prepaid Water Meters With CIU Keypad
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA568-G
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Product Name: Muti Jet Water Prepaid Meters LCD Display Water Meter Standard: 2004/22/EC(MID), OIML R49
Weight: 1300 G Display: LCD / Counter
Accuracy: Class B Communication: RF
Model No: CA568-G
High Light:

LCD Display Prepaid Water Meters

,

Multi Jet Prepaid Water Meters

,

DN20 pre payment meter

Multi Jet LCD Display Prepaid Water Meters With CIU Keypad



LCD Display Prepaid Water Meters Long Battery Life Shut Off When Credit Finishes

The CA568-S  is the model number of Calin  multi-jet  prepaid water meter.  It is STS prepayment standard compliant and certified. The meter works with a motor driven valve which turns off when credit finishes or any tamper is detected.  Calin prepaid water meter sustains well in grit particle, not clean water environment with steady metrology accuracy and durable life span in severe working scenarios. The meter operates with a keypad CIU in radio link with the meter. This split setup is designed to prevent tamper and theft by installing meters out of customers' reach but the customer can check their usage, balance on the CIU mounted in their house.



The meter is recharged with 20 digits token code which can be generated wirelessly with mobile money or any third party payment vending gateways. This means customer can buy top-up at any time with no limit of business hours which brings immenent cash flow for service providers.





Features

a) Size varies by  DN15, 20 and 25 or above

b) STS compliant and operates with token codes

c) Tamper prevention design

d)  Up to 300 meters wireless connection with the CIU keypad

e)  Auto shut off when credit finishes

f)  Long battery life up to 3 years

g) Battery can be replaced



 Key benefits



1) Quick and easy installation,  for both new reticulation and retrofittings

2) Flexible payment purchase for recharge topups

3) Tamper prevention

4) Vending software is flexible for settings

5) Supports drive-by reading and fully automated reading for AMI smart metering applications

6) Remote reading and valve control on / off

7) Reduced operational and inventory cost





Specifications:







Nominal size



Dn



mm

                in-line

DN15

DN20

DN25

Maximum flow rate

Q4

m3/h

3.125

5.0

7.875

Ratio “R”

    Q3/Q1



80

80

80

Permanent l flow rate

Q33





m3/h

2.5

4.0

6.3

Transitional flow rate

Q22

0.05

0.08

0.126

Minimum flow rate

Q11

0.031

0.05

0.0787

Minimum reading



m3

0.0005

Maximum reading

99999



Maximum Permission Error (MPE)

Q1≦Q≦,Q2    MPE =+ 5%           Q2≦Q≦Q4,    MPE= + 2% (For hot water metering, MPE=+ 3%)



Dimensions and diagram



Nominal size

Length

Width

Height

Thread

mm

D

15

165

101

124

G3/4B

20

195

101

124

G1B

25

225

101

124

G5/4B
