STS Split Keypad Prepaid R160 Water Meter Repay Electric Meters

STS Split Keypad Prepaid R160 Water Meter Repay Electric Meters

STS Split Keypad Prepaid R160 Water Meter Repay Electric Meters
STS Split Keypad Prepaid R160 Water Meter Repay Electric Meters

Product Details:

Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA568

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Product Name: STS Split Keypad Prepaid Water Meter Accuracy Class: Class C / R160
Weight: 1.7 Kg Display: LCD / Counter
Temperature: 0.1~50°C Type: Multi-jet Dry Dial
Model No: CA568-A
High Light:

Prepaid R160 Water Meter

,

R160 Repay Electric Meters

,

STS Split Keypad Water Meter

STS Split Keypad Prepaid R160 Water Meter Repay Electric Meters

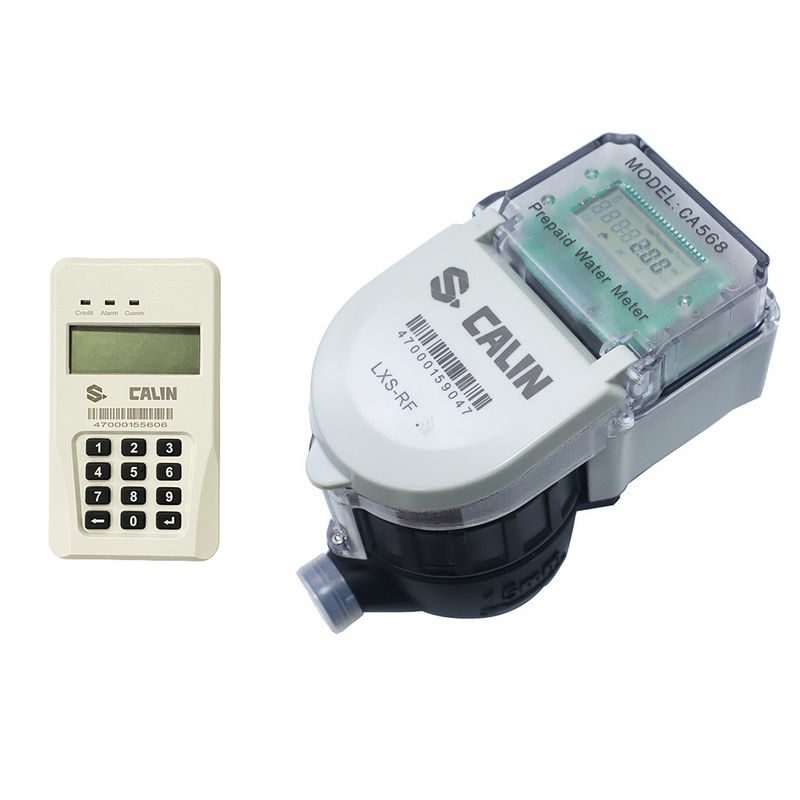

STS Split Keypad Prepaid R160 Water Meter Electronic Valve Controlled For South Africa

The CA568  is an STS prepayment standard multi-jet dry dial type, prepaid water meter.  The meter has compact design, equipped with a low power  motor driven valve, and switches off water supply when credit drains or tamper is detected.  CA568 series assure you of continuously good metrology and revenue protection at the same time. It has IP68 highest water proof protection, allowing it to work in server flooding environment.



To top-up or recharge the water meter, a consumer just need to purchase 20 digits'  credit token from the vendor and punch in the code with the CIU. The CIU is installed in customer's premise, it is kept away from the meter reduce the risk of tamper and fraud proof, customer can know the meter's data credit status and historical usage date from the LCD of CIU. This split type mechanism vastly reduce the chance of tamper.



Features

a) Size variety from DN15, 20 and 25 up to DN100 on request

b) Work with 20 digits' code

c) STS prepayment algorithm

d) Wireless connection

e) Dual display LCD and Counter register

f)  IP68 water proof

g) Tamper and zero credit shut down

h)  Low credit / battery alarm

i)  Data retention in abscense of power

j)  Prepared for AMR / AMI functions (optional)





 Key benefits



1) Light, compact, easy to handle

2) Instant cash back and good cashflow

3) Support mobile money, online banking and any 3rd party payment

4) Flexible tariff and contractual setting

5) Drive-by reading , AMR reading

6) Control your revenue streams

7) Reduced operational and inventory cost





Specifications:







Nominal size



Dn



mm

                in-line

15mm

20mm

25mm

Maximum flow rate

Q4

m3/h

3.125

5.0

7.875

Ratio “R”

    Q3/Q1



80

80

80

Permanent l flow rate

Q33





m3/h

2.5

4.0

6.3

Transitional flow rate

Q22

0.05

0.08

0.126

Minimum flow rate

Q11

0.031

0.05

0.0787

Minimum reading



m3

0.0005

Maximum reading

99999



Maximum Permission Error (MPE)

Q1≦Q≦,Q2    MPE =+ 5%           Q2≦Q≦Q4,    MPE= + 2% (For hot water metering, MPE=+ 3%)



Dimensions and diagram



Nominal size

Length (mm)

Width(mm)

Height(mm)

Thread

mm

D

15

165

101

124

G3/4B

20

195

101

124

G1B

25

225

101

124

G5/4B
