Product Details
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA568-K
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 10,000pcs per month
Type: |
Multi-jet STS Keypad Prepayment Water Meter |
Standard: |
2004/22/EC(MID), OIML R49 |
OEM/ODM: |
Prepayment Water Meter |
Accuracy: |
R80/Class B |
Protection: |
IP67 |
Dial: |
Wet Dial |
Type: |
Multi-jet STS Keypad Prepayment Water Meter |
Standard: |
2004/22/EC(MID), OIML R49 |
OEM/ODM: |
Prepayment Water Meter |
Accuracy: |
R80/Class B |
Protection: |
IP67 |
Dial: |
Wet Dial |

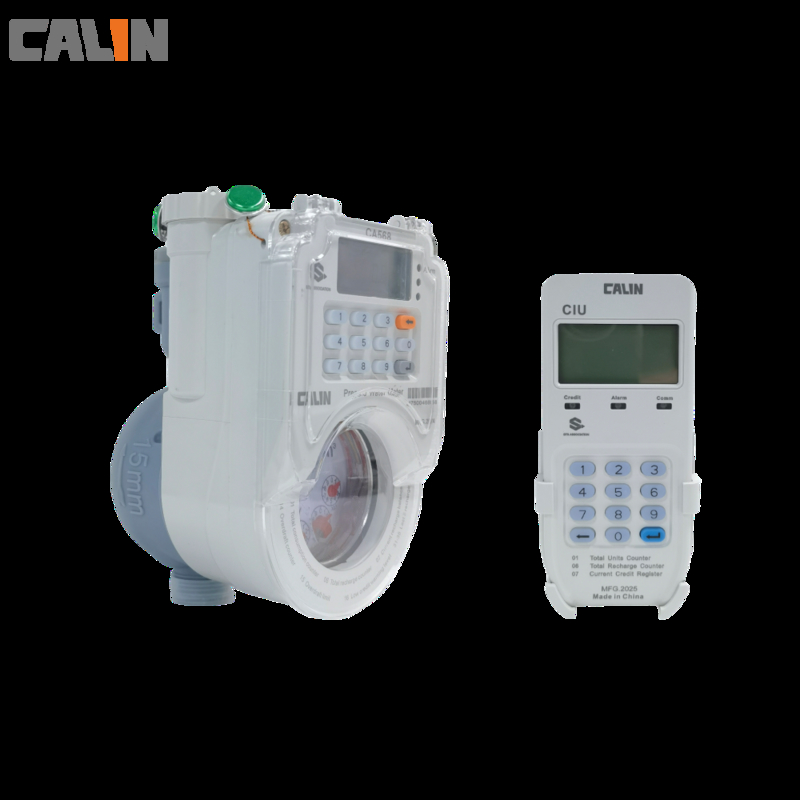

OEM Fraud Proof Prepaid Electric Meter Multi Jet Prepayment Water Meter
Plastic Body Long Battery Life Low-Cost R80 Class B Wet Dial
STS Keypad Prepaid Water Meter
The CA568-K developed based on the newest STS prepayment algorithm (IEC62055-41 international standard), can shut off the water supply automatically if the recharged credit be used up. The mechanical water meter body is made of high-quality non-toxic plastic (Brass body on request) for corrosion resistance and anti-thief.
Calin provides complete set of API for your system integration for utmost mobility and functionality.
Features
a) Easy to integrate thrid payment platform, such as M-pesa, pay-as-you-go, USSD, SMS.
b) Strictly compliant with STS standard
c) Class B accuracy
d) Tamper and fraud proof
e) Configurable Low credit warning, emergency overdraft limit,
f) Multi-tariff setting
g) LCD display and counter display
Specifications:
|
Nominal size |
Dn |
mm |
in-line |
||
|
15 |
20 |
25 |
|||
|
Maximum flow rate |
Q4 |
m3/h |
3.125 |
5.0 |
7.875 |
|
Ratio “R” |
Q3/Q1 |
|
80 |
80 |
80 |
|
Permanent l flow rate |
Q33 |
m3/h |
2.5 |
4.0 |
6.3 |
|
Transitional flow rate |
Q22 |
0.05 |
0.08 |
0.126 |
|
|
Minimum flow rate |
Q11 |
0.031 |
0.05 |
0.0787 |
|
|
Minimum reading |
m3 |
0.0005 |
|||
|
Maximum reading |
99999 |
||||
Maximum Permission Error (MPE)
Q1≦Q≦,Q2 MPE =+ 5% Q2≦Q≦Q4, MPE= + 2% (For hot water metering, MPE=+ 3%)
Dimensions and diagram
|
Nominal size |
Length |
Width |
Height |
Thread |
|
mm |
D |
|||
|
15 |
165 |
101 |
124 |
G3/4B |
|
20 |
195 |
101 |
124 |
G1B |
|
25 |
225 |
101 |
124 |
G5/4B |
Application Of Single Phase Electric Meter
1. Measure, monitoring power distribution system parameters.
2. Collect energy consumption data that cost center analysis needs.
3. Limit monitor alarm(such as over voltage, power consumption).
4. Power quality analysis.
5. Green building or DC
Advantage Of Single Phase Electric Meter
1) Easy to deploy and maintenance
2) Increased tamper protection
3) Low operational cost
4) Optical port offers simple interrogation
5) Broad range of engineering settings
6) 15 year designed lifespan
Our service:
1. We will reply you as soon as possible after receiving your enquiry.
2. We can offer both OEM and ODM service according to customers' request.
3. If novelties exist in any non-human-made problems, please contact us at your first
time and we will offer you a satisfactory solution according to actual situation.
4. The lead time of samples would be 1-7 days.
