Product Details
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA568-G
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 10,000pcs per month
Product Name: |
Muti Jet Water Prepaid Meters LCD Display Water Meter |
Standard: |
2004/22/EC(MID), OIML R49 |
Weight: |
1300 G |
Display: |
LCD / Counter |
Communication: |
RF |
Model No: |
CA568-G |
Product Name: |
Muti Jet Water Prepaid Meters LCD Display Water Meter |
Standard: |
2004/22/EC(MID), OIML R49 |
Weight: |
1300 G |
Display: |
LCD / Counter |
Communication: |
RF |
Model No: |
CA568-G |
Multi Jet LCD Display Prepaid Water Meters With CIU Keypad
LCD Display Prepaid Water Meters Long Battery Life Shut Off When Credit Finishes

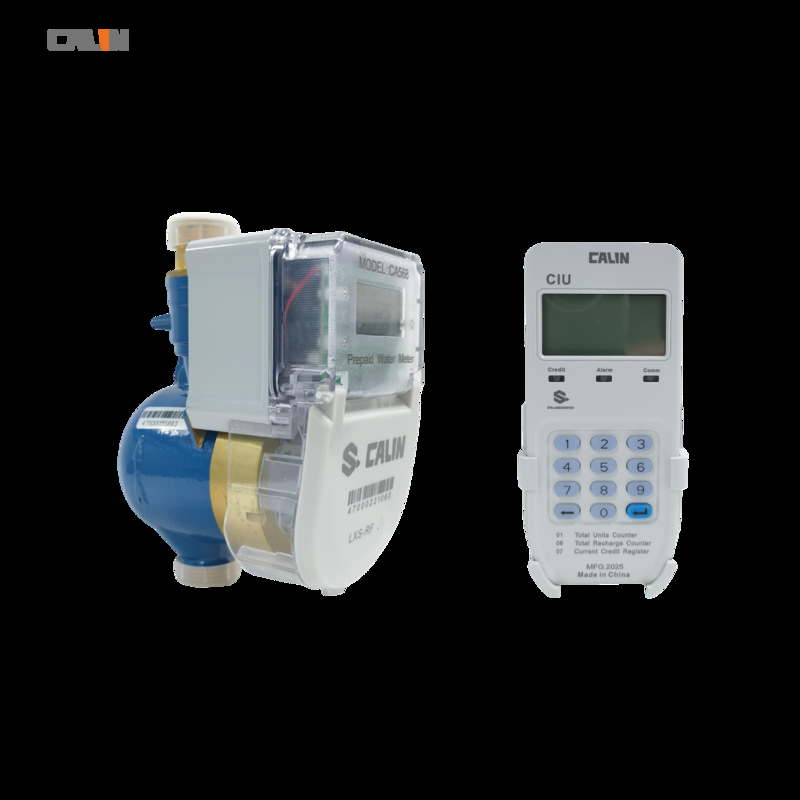

The CA568-S is the model number of Calin multi-jet prepaid water meter. It is STS prepayment standard compliant and certified. The meter works with a motor driven valve which turns off when credit finishes or any tamper is detected. Calin prepaid water meter sustains well in grit particle, not clean water environment with steady metrology accuracy and durable life span in severe working scenarios. The meter operates with a keypad CIU in radio link with the meter. This split setup is designed to prevent tamper and theft by installing meters out of customers' reach but the customer can check their usage, balance on the CIU mounted in their house.
Features
a) Size varies by DN15, 20 and 25 or above
b) STS compliant and operates with token codes
c) Tamper prevention design
d) Up to 300 meters wireless connection with the CIU keypad
e) Auto shut off when credit finishes
f) Long battery life up to 3 years
g) Battery can be replaced
Key benefits
1) Quick and easy installation, for both new reticulation and retrofittings
2) Flexible payment purchase for recharge topups
3) Tamper prevention
4) Vending software is flexible for settings
5) Supports drive-by reading and fully automated reading for AMI smart metering applications
6) Remote reading and valve control on / off
7) Reduced operational and inventory cost
Specifications:
|
Nominal size |
Dn |
mm |
in-line |
||
|
DN15 |
DN20 |
DN25 |
|||
|
Maximum flow rate |
Q4 |
m3/h |
3.125 |
5.0 |
7.875 |
|
Ratio “R” |
Q3/Q1 |
|
80 |
80 |
80 |
|
Permanent l flow rate |
Q33 |
m3/h |
2.5 |
4.0 |
6.3 |
|
Transitional flow rate |
Q22 |
0.05 |
0.08 |
0.126 |
|
|
Minimum flow rate |
Q11 |
0.031 |
0.05 |
0.0787 |
|
|
Minimum reading |
m3 |
0.0005 |
|||
|
Maximum reading |
99999 |
||||
Maximum Permission Error (MPE)
Q1≦Q≦,Q2 MPE =+ 5% Q2≦Q≦Q4, MPE= + 2% (For hot water metering, MPE=+ 3%)
Dimensions and diagram
|
Nominal size |
Length |
Width |
Height |
Thread |
|
mm |
D |
|||
|
15 |
165 |
101 |
124 |
G3/4B |
|
20 |
195 |
101 |
124 |
G1B |
|
25 |
225 |
101 |
124 |
G5/4B |
Application Of Single Phase Electric Meter
1. Measure, monitoring power distribution system parameters.
2. Collect energy consumption data that cost center analysis needs.
3. Limit monitor alarm(such as over voltage, power consumption).
4. Power quality analysis.
5. Green building or DC
Advantage Of Single Phase Electric Meter
1) Easy to deploy and maintenance
2) Increased tamper protection
3) Low operational cost
4) Optical port offers simple interrogation
5) Broad range of engineering settings
6) 15 year designed lifespan
