| Place of Origin: | China |
| Brand Name: | Calin |
| Certification: | CE/SABS/IEC |
| Model Number: | CA568 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 30 days |
| Payment Terms: | western Union,Paypal, T/T, L/C |
| Supply Ability: | 10,000pcs per month |
| Product Name: | STS Split Type Prepaid Water Meter | Standard: | 2004/22/EC(MID), OIML R49 |
|---|---|---|---|
| Weight: | 1300 G | Display: | LCD / Counter |
| Accuracy: | Class B: R80 / R100 | Feature: | Low Credit Warning Programmable |
| High Light: | Prepayment Water Meter OEM,Split Type Prepaid Water Meter,R100 Class B Prepaid Watermeter |
||
Postpaid Water Meters with RF communication AMI/AMR system,R100 Class B

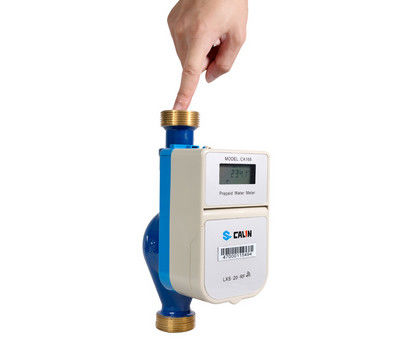

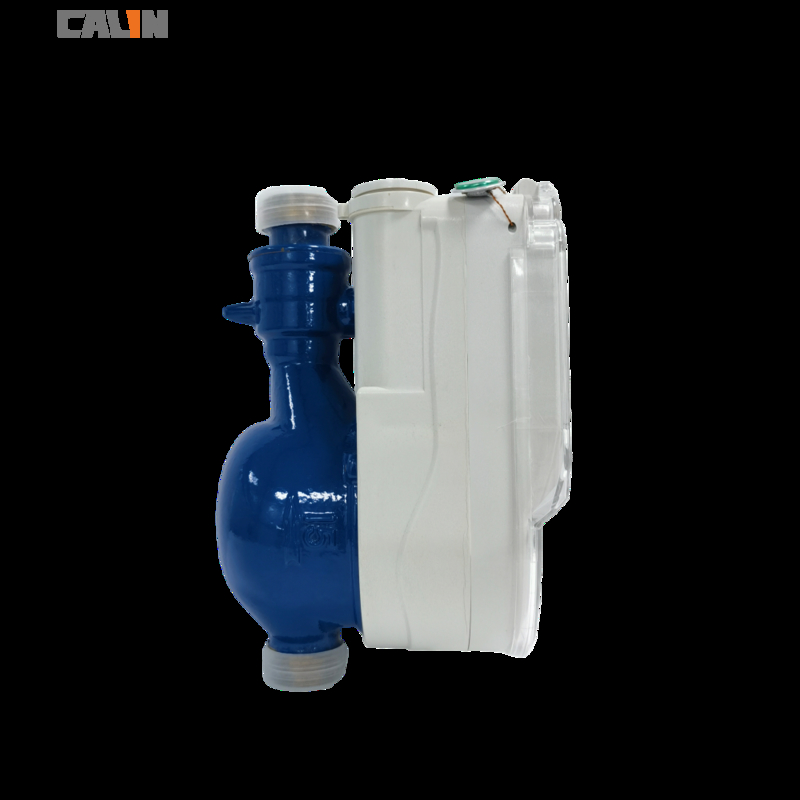

CA568 can operate as prepaid or postpaid mode. It is a multi-jet wet / dry type. This is most cost-effective revenue controller in Calin product series. The meter is equipped with a low power motor driven hydraulically operating ball valve that sustains 4 million shuts with up to 5 year battery life. There may be some other brands telling story of Class C or B. Some of them are not true multi-jet and they are actually do volumetric which is very sensitive to small particles in the water and liable to get jammed.
The meter supports mobile money, mobile payment or any 3rd party payment systems. Customers only need to send SMS or USSD on their mobile phones and water units token codes will be remotely transferred back to them by SMS. Service providers can have instant revenue back and immenent cash flow.
Features
a) Up to 5 year battery life
b) DN15, 20,25, 40, 50, 80, 100, 150
c) Replacable battery
d) Up to 2 kms communication range
e) Dual display of LCD and Counter register
f) Flexible contract setting and debt recovery setting
g) Meter disconnects on tamper and fraud
h) Low credit warning programmable
i) 10 years’ data storage in absence of power
j) AMR / AMI functions (optional, need to work with DCU)
k) NB-IOT, LORAWAN available on request
Key benefits
1) Easy to install and free of maintenance
2) Long lasting battery life even with daily read and valve control
3) Non-revenue water prevention
4) Flexible setting of free basic water(FBW), emergency credit, and debt collection
5) Drive-by & Walk-by reading , AMR reading on request
6) Remote valve control
7) Quick revenue collection and cash flow improve
Specifications:
|
Nominal size |
Dn |
mm |
in-line |
||
|
15 |
20 |
25 |
|||
|
Maximum flow rate |
Q4 |
m3/h |
3.125 |
5.0 |
7.875 |
|
Ratio “R” |
Q3/Q1 |
|
80 |
80 |
80 |
|
Permanent l flow rate |
Q33 |
m3/h |
2.5 |
4.0 |
6.3 |
|
Transitional flow rate |
Q22 |
0.05 |
0.08 |
0.126 |
|
|
Minimum flow rate |
Q11 |
0.031 |
0.05 |
0.0787 |
|
|
Minimum reading |
m3 |
0.0005 |
|||
|
Maximum reading |
99999 |
||||
Maximum Permission Error (MPE)
Q1≦Q≦,Q2 MPE =+ 5% Q2≦Q≦Q4, MPE= + 2% (For hot water metering, MPE=+ 3%)
Dimensions and diagram
|
Nominal size |
Length |
Width |
Height |
Thread |
|
mm |
D |
|||
|
15 |
165 |
101 |
124 |
G3/4B |
|
20 |
195 |
101 |
124 |
G1B |
|
25 |
225 |
101 |
124 |
G5/4B |
