GPRS Remote Reading Muti Jet Water Prepaid Meters LCD Display Brass Body

            LCD Display Brass Body GPRS Remote Reading and Prepaid Muti Jet Water Meter

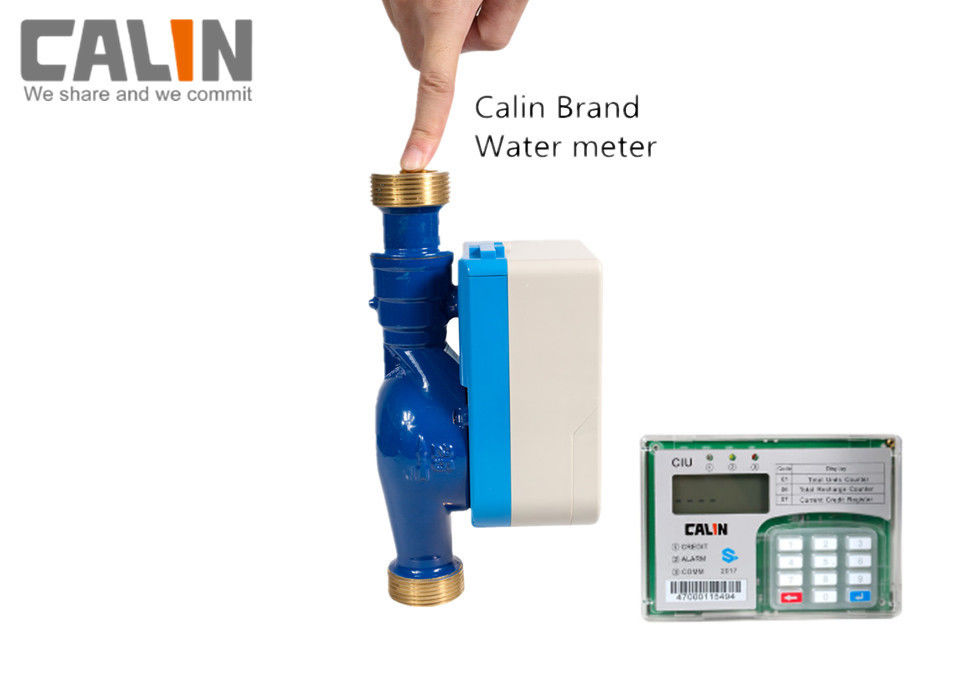

The CA568-G  is a multi-jet wet type, GPRS remote reading and prepaid water meter.  The meter works with a low power  bistable latched valve driven by battery that is able to open and shut for 4 million times during battery lifetime.  CA568-G series assure you of continuously good metrology and revenue protection at the same time.The electronic part of the meter is potted and sealed above on the metering chamber, away from the water, which makes the meter water proof and adaptable to humid and tropical environments.

The meter works with our Billing system station, the water meters can transmit the data via GPRS to the Billing station.

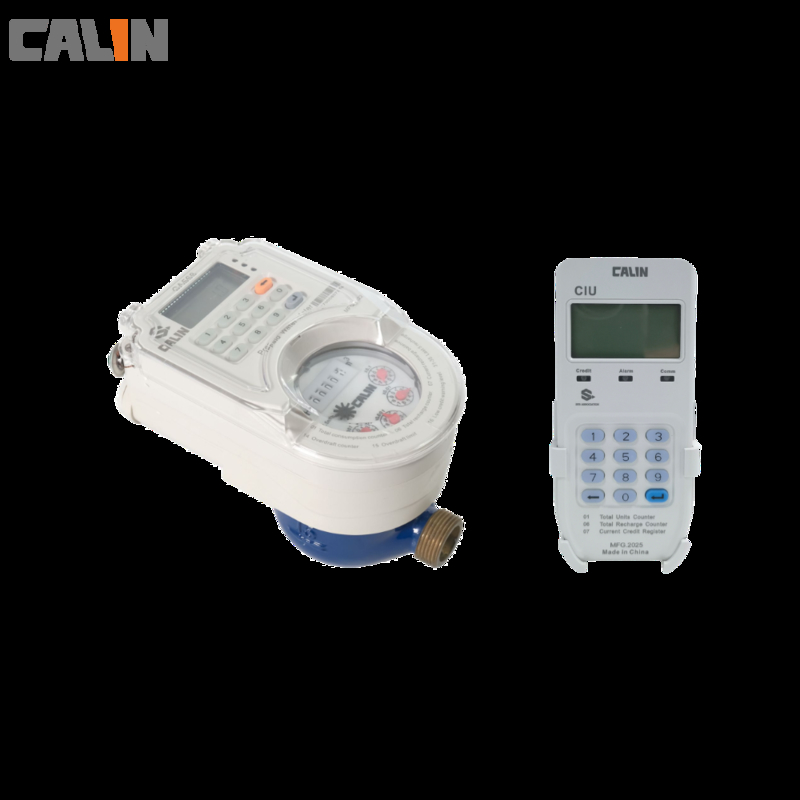

To top-up or recharge the water meter, a consumer just need to purchase 20 digits'  credit token from the vendor and punch in the code with the CIU. With our broad range of prepaid vending solutions, a utility or service provider can manage CAW series water meter along with STS prepaid electricity meters in one vending system.

Features

a) Can be ordered with DN15, 20 and 25

b) Contact-less Transponder technology

c) Split operation with a in home CIU

d) Up to 1 mile communication range

e) LCD and Counter register display

f) Potted electronics making meter water resistant in humid and tropical environments

g) Tamper and fraud proof

h) Low credit warning

i) Over 10 years’ data retention in absence of power

j) Prepared for AMR / AMI functions (optional)

k) DLMS/ COSEM or equivalent open communication protocols

 Key benefits

1) Quick and easy installation, ideal for both new reticulation and retrofittings

2) Multi-rate and usage record on Time of Use (TOU) basis

3) Self-register with head-end sever system

4) Flexible setting of free basic water, emergency credit, low credit warning, repayment policy

5) Supports drive-by reading and fully automated reading for AMI smart metering applications

6) Remote reading and valve control on / off

7) Reduced operational and inventory cost

Specifications:

Maximum Permission Error (MPE)

Q1≦Q≦,Q2    MPE =+ 5%           Q2≦Q≦Q4,    MPE= + 2% (For hot water metering, MPE=+ 3%)

Dimensions and diagram
