    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA368

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Detailed Product Description
    Product Name: Surge Safe 3 Phase STS Prepayment Meter Standard: SANS1524-1 , IEC62052-11, IEC62053-21
    Dimensions: 272x127x77mm Weight: 2.5Kg
    Display: 8 Digits Backlit LCD Accuracy: Class 1s
    Surge Protection: 16kV / 8kA Cable Size: 10mm

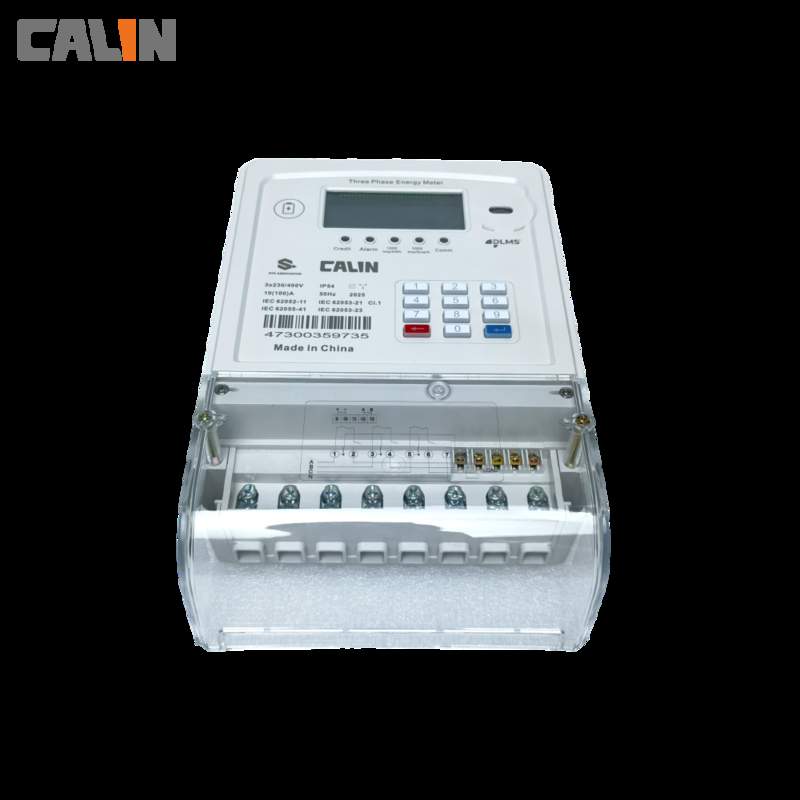

    Load Management Sts Prepaid Meters , 3 Phase Electricity Meter Safety



    The CA368 is available with options for reinforced surge protection for lightening up to 16kV with a build-in  8kA Varistor. It is manufactured exclusively for unstable grid voltage envrionment such as African and Central American continent. The meter works with 100 Amp per phase, and 30 Vm withstand of RF immunity, enabling it to operate in very harsh envrionments. It is used for submetering of residential, light commercial and industrial applications.



    A utility or a service provider can  input settings such as free basic unit, emergency overdraft credit, low credit waring, repayment rules into the meter for payment management purpose. This feature allows them to manage their revenue collection and load more efficiently.



    Featured Functions

    1) 20 digit (Standard Transfer Specification) STS encryption

    2) IEC62056-21 compliant optical & RS485 port

    3) Trips on overload and no credit

    4) Programmable power limit and low credit warning

    5) Fraud detection: cover open, reverse connection, outages, etc

    6) Easy access to 12 months historical consumption data and last 5 token entered

    7) Load profile record and MD measurement at adjustable intervals

    8) Prepayment and credit mode hot swap



    User Benefits

    a) Easy to install for both new reticulation and retrofitting due to BS mounting

    b) Low operational and inventory cost thanks to wide voltage range and surge protection

    c) Can be ordered with PLC/ RF/ GPRS/GSM communication for AMR/AMI features

    d) Time of Use (TOU) multi-rates and usage register.

    e) Meter provides various valuable information by punching in Calin's short codes

    f) Flexible payment control setting to improve revenue management





    Specifications:





    Electrical parameters:

    Nominal voltage Un

    3x240V

    Limited voltage

    60%~120%Un

    Frequency

    50/60Hz+5%

    Basic current(Ib)

    10A

    Maximum current(Imax)

    100A

    Starting current(Ist)

    30mA

    Active energy constant

    400imp/kWh

    Accuracy



    Active energy to IEC62053‐21

    Class1.0

    Reactive energy to IEC62053‐23

    Class2.0

    Power Consumption



    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Temperature range



    Operation meter

    25℃ to+70℃

    Storage

    40℃ to+85℃



    Insulation strength

    AC Insulation strength

    4kV at 50Hz during 1min

    Impulse voltage 1.2/50μs mains connections

    8kV





    Electro Magnetic Compatibility

    Electrostatic discharges



    Contact discharge

    8kV

    Air discharge

    16kV

    Electromagnetic RF fields



    27MHz to 500MHz typical

    10V/m

    100kHz to 1GHz typical

    30V/m

    Fast transient burst test

    4kV

    Mechanical requirements



    Protection Rating

                              IP54

    Insulation Classification

    Protective Class II

    Maximum cable size

    10 mm
