    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA368

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Three Phase Keypad Prepayment Meter Standard: SANS1524-1 , IEC62056-21 , IEC62053
    Dimensions: 265x170x77mm Weight: 2.5kg
    Display: Backlit LCD Accuracy: Class 1s Active Class 2s Reactive
    Com Port: Optical Cable Size: 10mm

    Split Three Phase STS Prepaid Meters , Load Switch Tamper guard Power Enery Meter

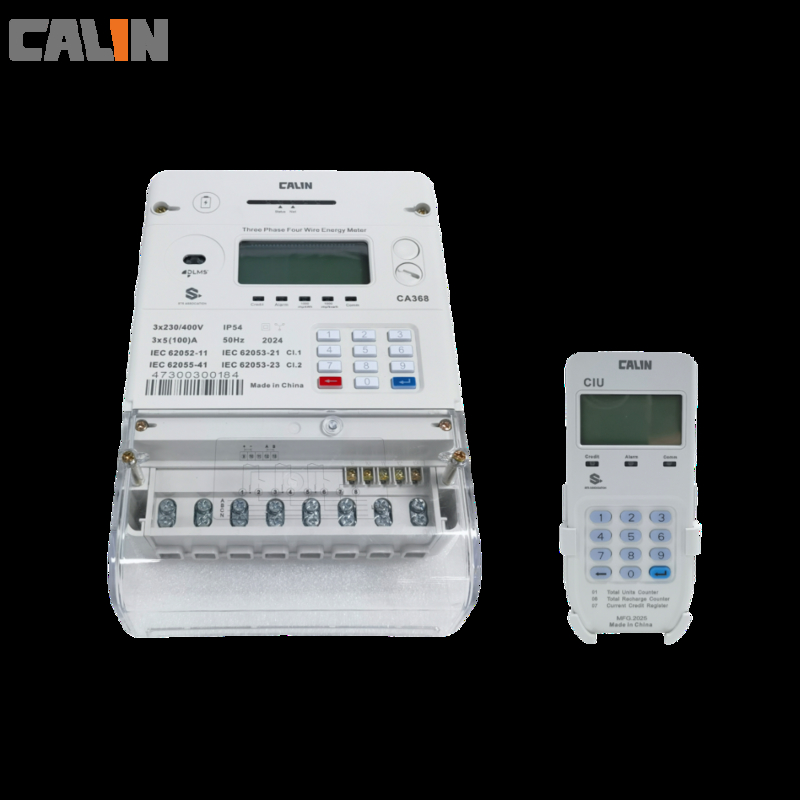

    The CA368 type is the basic model of Calin's poly / triple phase prepaid meter. It is a four-wire, 100 Amp per phase, keypad based prepayment meter in a compact BS footprint housing. The meter is good choice for large residential houses, small commercial and industrial applications.

    The meter is produced by  ISO9001 standards. It is IP54 rated, in a wide range of voltage ( Un -40% +20%) and improved RF immunity of 30V/m, allowing it to operate in harsh environments. The entire CA368 series provides measurement of both active and reactive energy, and 2400 bps baud rate optical port for data extraction.



    The CA368 is also provided a split type of connection to a customer interface unit as CIU. CIU is a keypad based display unit. Various information can be toggled by input different combination of figures. Users can easily retrieve metering data such as daily usage, monthly usage, present current and voltage, balance, and last five entered tokens.







    Features

    a) 20 digit (Standard Transfer Specification) STS standard compliant encryption

    b) Com ports for easy data interrogation

    c) Unidirectional measurement of both active and reactive energy

    d) Adjustable load limit and low credit warning level

    e) Tamper guard and event record such as opening cover, reverse connection, black-out

    f) Recall 12 months historical usage data and last 5 entered token

    g) Maximum demand measurement

    h)Programmable target usage on daily , monthly basis

    i) Remote topup / recharge



    AMR/AMI Smart Metering Features (optional)

    1) Split connection to User Interface Unit (UIU)

    2) PLC/ RF/ GPRS/GSM communication with a head-end AMR/AMI server

    3) Time of Use (TOU) / 4 tariffs /8 time divisions /100 holidays.

    4) Advanced load control and disconnection features

    5) DLMS/COSEM , IEC62056 protocol compliant





    Specifications:





    Electrical parameters:

    Nominal voltage Un

    3x240V

    Limited voltage

    60%~120%Un

    Frequency

    50/60Hz+5%

    Basic current(Ib)

    10A

    Maximum current(Imax)

    100A

    Starting current(Ist)

    30mA

    Active energy constant

    400imp/kWh

    Accuracy



    Active energy to IEC62053‐21

    Class1.0

    Reactive energy to IEC62053‐23

    Class2.0

    Power Consumption



    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Temperature range



    Operation meter

    25℃ to+70℃

    Storage

    40℃ to+85℃



    Insulation strength

    AC Insulation strength

    4kV at 50Hz during 1min

    Impulse voltage 1.2/50μs mains connections

    8kV





    Electro Magnetic Compatibility

    Electrostatic discharges



    Contact discharge

    8kV

    Air discharge

    16kV

    Electromagnetic RF fields



    27MHz to 500MHz typical

    10V/m

    100kHz to 1GHz typical

    30V/m

    Fast transient burst test

    4kV

    Mechanical requirements



    Protection Rating

                              IP54

    Insulation Classification

    Protective Class II

    Maximum cable size

    10 mm











    Split  Three Phase STS  Prepaid  Meters , Load Switch Tamper guard Power Enery MeterSplit  Three Phase STS  Prepaid  Meters , Load Switch Tamper guard Power Enery Meter
