Split Type STS Prepaid Meters , Din Rail Power Meter With Ciu Pole Mounting

Split Type STS Prepaid Meters , Din Rail Power Meter With Ciu Pole Mounting

Split Type STS Prepaid Meters , Din Rail Power Meter With Ciu Pole Mounting

Product Details:

Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: DDSY168-S

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Detailed Product Description
Product Name: Wireless Din Rail STS Prepaid Meter Mounting: 35mm Din
Dimensions: 155x120x52mm Weight: 800 G
Latch Relay: Buid-in Accuracy: Class 1s
Standard: IEC/SABS Commnication: LoRa, RF, PLC

Split Type STS Prepaid Meters , Din Rail Power Meter With Ciu Pole Mounting



The DDSY168-S operates with a 35 mm Din Rail mounting  and pole mounting accessories.



Thanks to a broad range of current allowance 5(80)Amp and  the rugged RF withstand of 30 Vm, the meter is able to work in very harsh environments.It is ideal for submetering and tenants environments..

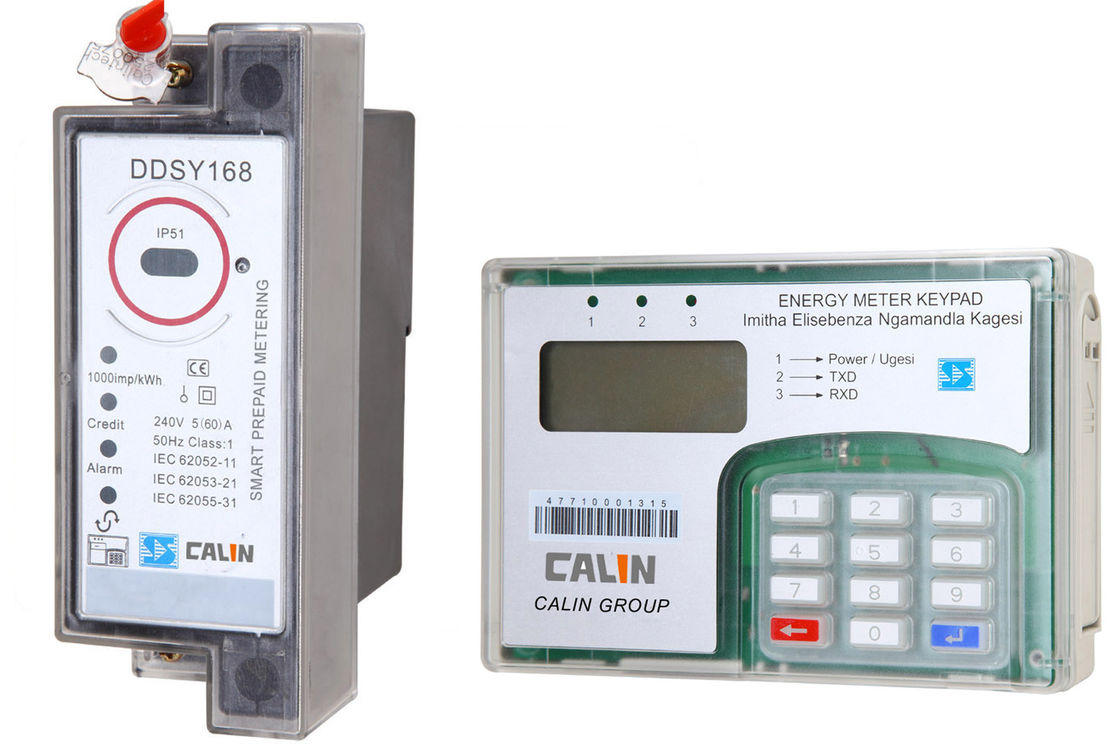

The DDSY168 -S consists of two parts. A customer interface unit (CIU),  and a metering and control unit (MCU). A CIU is a keypad based display,  to be installed within consumers homes wherever there is a plug point. A MCU is the main meter,  installed away from consumer's home in a kiosk, meter box or a pole-mounted enclosure .MCU communicates with CIU via wireless communication such as Power Line Carrier (PLC), Radio Frequency(RF), and LoRa.  This non-wired setup allows for easy inspection by utility and service providers at any time without visiting consumers' houses  and reduces the chance of fraud by tampering.



Major Features

a) Critical metrological value measurement: V, A, PF, P, etc

b) Trip on no credit or preset balance level

c) Disconnect on tamper detected

d) Meter allows setting for power limit, emergency credit, debt collection, surchages, etc

e) Uni-directional measurement for reverse energy( SRE )

f) Anti-fraud features

g) Multi-rate and usage registered as Time of Use (TOU)



 User Benefits

1) Quick and easy installation with no need of accessories

2) Reduce operational and inventory cost

3) Two way communication with AMR AMI server(on request)

4) Flexible payment control through various element settings

5) Meter provides information by inputting short codes





Specifications:

Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields



80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

 Protective Class II

Split Type STS Prepaid Meters , Din Rail Power Meter With Ciu Pole MountingSplit Type STS Prepaid Meters , Din Rail Power Meter With Ciu Pole Mounting
