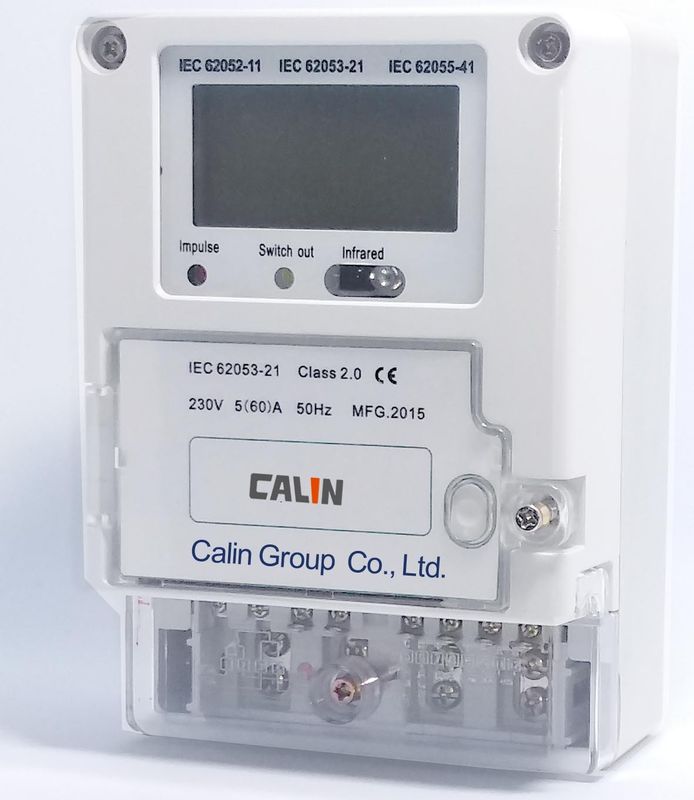

IEC Standards Smart Electric Meter Remote Control Single Phase Watt Hour Meter

IEC Standards Smart Electric Meter Remote Control Single Phase Watt Hour Meter

    • IEC Standards Smart Electric Meter Remote Control Single Phase Watt Hour Meter
  • IEC Standards Smart Electric Meter Remote Control Single Phase Watt Hour Meter

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA168-M

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: 1 Phase Smart Electicity Meter Application: Residential Low Voltage
    Dimensions: 160x112x58mm Weight: 750 G
    Display: Backlit LCD Accuracy: Class 1s
    Payment Mode: Hybrid Material: Uv Stable Polycarbonate
    High Light:

    prepaid power meters

    ,

    prepay electric meters

    IEC Standards Smart Electric Meter Remote Control Single Phase Watt Hour Meter





    The CA168-M is a new generation of smart electricity meter that integrates high precision metrology features along with non-wired communication and contractual management methodology. The meter operates in both prepayment and post-prepayment mode. It changes its payment mode  upon command from head-end server. Utility can choose from various contractual billing control for consumers.



    The meter works with a plug-in module for data collection and network communications . This module-design enables utility to select from PLC/RF/GPRS/3G and 4G LTE cellular data networks according to local conditions at low cost. Upgrade and maintenance will also become cost-effective by replacing the modules only instead of the entire meter.







    Features

           1) Hybrid as in prepayment or post-payment mode offers flexible management

    2) Maximum demand measurement

    3) Anti-tamper: magnetic proof, data retention in outage, cover open detection

    4) TOU with multi-tariff and multi billing cycles

    5) Plug & play communication modules

    6) IEC 62056-21 and DLMS/COSEM compliant

    7) Prepared for AMR/AMI functionality







     Key benefits

           a) Load management on demand and remote

    b) Reduce operational and maintenance costs

    c) Choose suitable communication according to local needs

    d) Revenue protection by flexible consumer contract control

    e) Long life time with easy upgrade features





    Specifications:

    Nominal voltage Un

    220/230/240 V

    Limited voltage

    70%~120%Un

    Nominal frequency fn

    50-60Hz+5%

    Basic current(Ib)

    5-10A

    Maximum current(Imax)

    60-100A

    Starting current(Ist)

    20mA

    Active energy constant

    1000imp/kWh

    Accuracy as Active energy to IEC62053‐21

    Class1.0

    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Operating temperature

    25℃ to+70℃

    Storage temperature

    40℃ to+85℃

    Insulation level

    4kV rms for 1min

    Impulse voltage withstand

    8kV, 1.2/50 μs

    Air discharge

    16kV

    Immunity to HF fields



    80MHz to 2GHz with load

    10V/m

    100kHz to 1GHz without load

    30V/m

    Fast transient burst test

    4kV

    Meter shell Protection Rate

    IP54(IEC60529)

    Insulation System Classification

     Protective Class II

    IEC Standards Smart Electric Meter Remote Control Single Phase Watt Hour Meter 0
