Product Details
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC

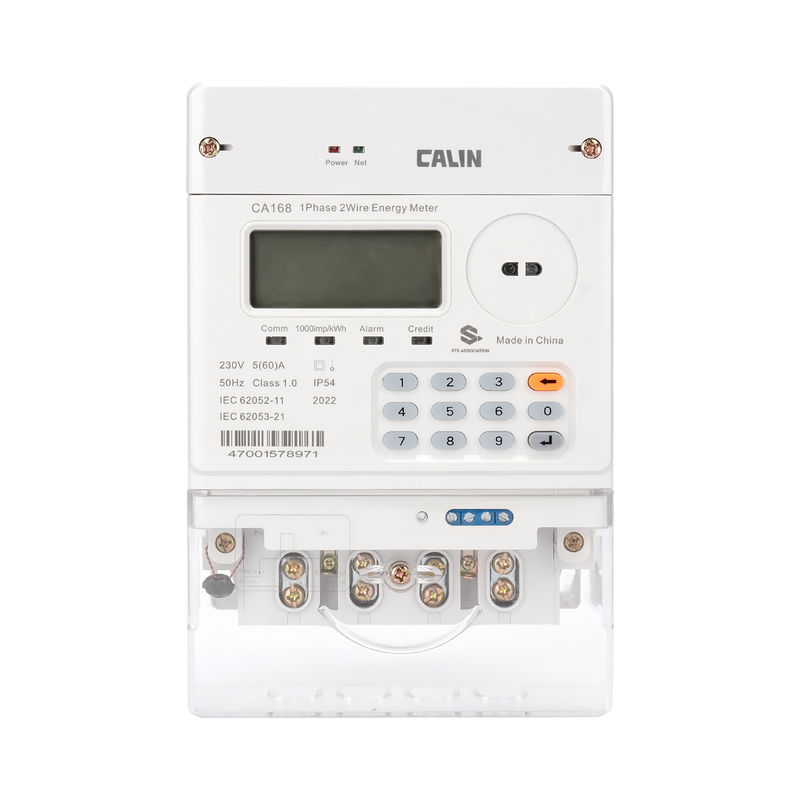

Model Number: CA168-M
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal,T/T,L/C
Supply Ability: 70,000pcs per month
Product Name: |
1 Phase Smart Electicity Meter |
Application: |
Residential Low Voltage |
Dimensions: |
160x112x58mm |
Weight: |
750 G |
Display: |
Backlit LCD |
Accuracy: |
Class 1s |
Payment Mode: |
Hybrid |
Material: |
Uv Stable Polycarbonate |
Product Name: |
1 Phase Smart Electicity Meter |
Application: |
Residential Low Voltage |
Dimensions: |
160x112x58mm |
Weight: |
750 G |
Display: |
Backlit LCD |
Accuracy: |
Class 1s |
Payment Mode: |
Hybrid |
Material: |
Uv Stable Polycarbonate |
Strong Smart Prepaid Electricity Meters with IEC Standards and Remote Control for Flexible Utility Management
The CA168-M is a new generation of smart electricity meter that integrates high-precision metrology features along with non-wired communication and contractual management methodology. The meter operates in both prepayment and post-prepayment mode. It changes its payment mode upon command from the head-end server. Utility can choose from various contractual billing controls for consumers.
The meter works with a plug-in module for data collection and network communications. This module design enables the utility to select from PLC/RF/GPRS/3G and 4G LTE cellular data networks according to local conditions at low cost. Upgrade and maintenance will also become cost-effective by replacing the modules only instead of the entire meter.
| Nominal voltage Un | 220/230/240 V |
|---|---|
| Limited voltage | 70%~120%Un |
| Nominal frequency fn | 50-60Hz _+_ 5% |
| Basic current(Ib) | 5-10A |
| Maximum current(Imax) | 60-100A |
| Starting current(Ist) | 20mA |
| Active energy constant | 1000imp/kWh |
| Accuracy as Active energy to IEC62053‐21 | Class1.0 |
| Power consumption in Voltage circuit | <2W <8VA |
| Power consumption in current circuit | <1VA |
| Operating temperature | 25℃ to+70℃ |
| Storage temperature | 40℃ to+85℃ |
| Insulation level | 4kV rms for 1min |
| Impulse voltage withstand | 8kV, 1.2/50 μs |
| Air discharge | 16kV |
| Immunity to HF fields | |
| 80MHz to 2GHz with load | 10V/m |
| 100kHz to 1GHz without load | 30V/m |
| Fast transient burst test | 4kV |
| Meter shell Protection Rate | IP54(IEC60529) |
| Insulation System Classification | Protective Class II |
